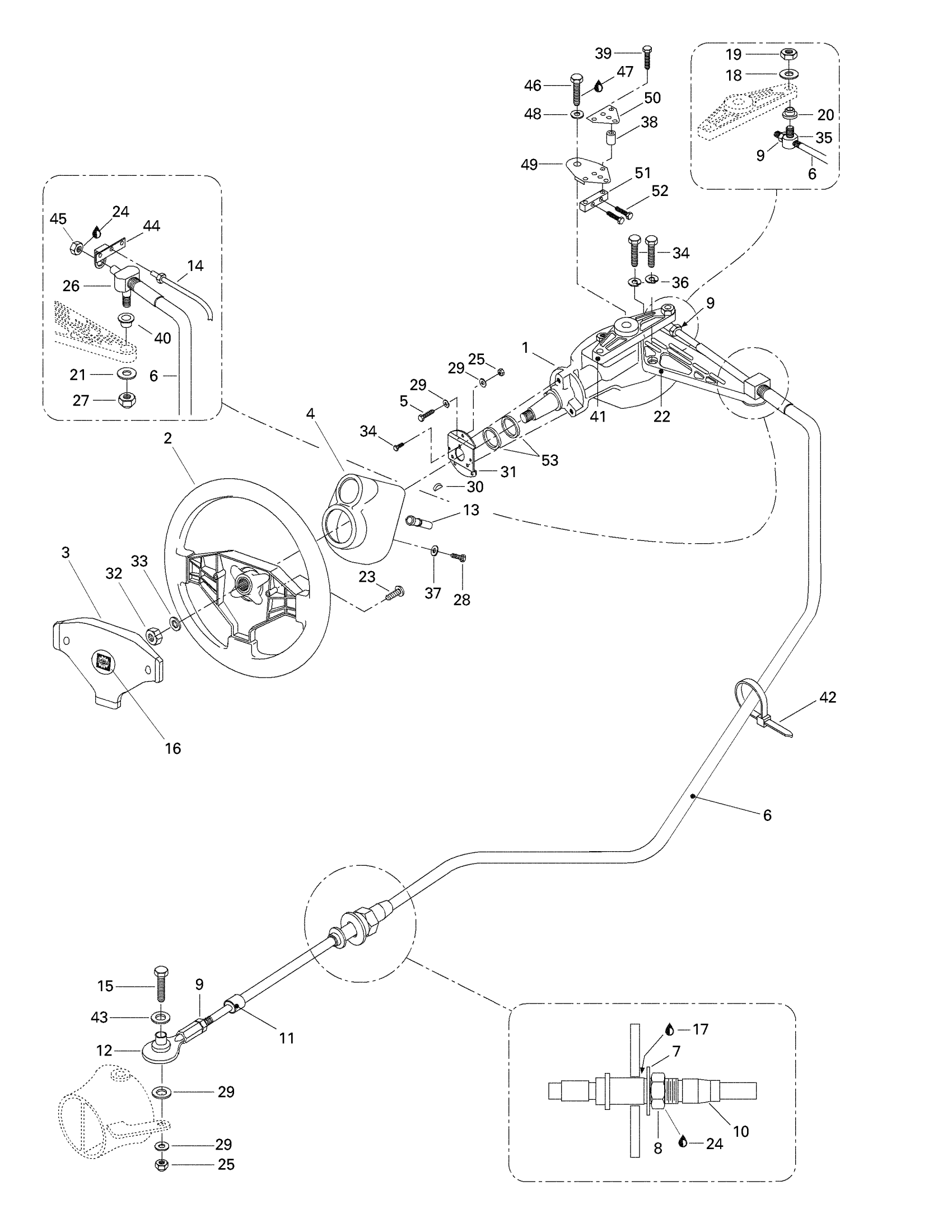

Sea-doo Challenger, 5603/5606, 1997 Steering System Diagram

#

Description
Price

1

Helm Ass'y

277000342

Unavailable

2

Steering (Black)

277000508

Unavailable

3

Steering Cover (Green)

277000547

Unavailable

4

Collar (Marine Green)

277000551

Unavailable

5

Hex. Screw M6 X 30

207163060

$1.48

6

Direction Cable Ass'y | Includes 6 - 11.

204390048

Unavailable

7

Washer

277000438

Unavailable

8

Nut

277000437

Unavailable

9

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

10

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

11

Terminal Wiper

277000441

$11.99

12

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

13

Grommet

293720014

Unavailable

14

Throttle Cable

204390043

Unavailable

15

Hex. Screw M6 X 35

207063560

$2.22

16

BRP Logo 48mm

516008738

$16.99

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

19

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

20

BUSHING - Call your local BRP dealership

293350012

Unavailable

21

Flat Washer 10 mm, Stainless

234001600

$1.15

22

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

23

Flange Screw K40 X 20

241642060

$1.15

24

Loctite 243, 10 ml

293800060

$21.49

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

27

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

28

Hex. Flange Screw K40 X 25

241142560

$2.64

29

Stainless Flat Washer M6

234061600

$0.33

30

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

31

Support

277000383

Unavailable

32

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

33

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

34

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

35

PIVOT - Call your local BRP dealership

277000456

Unavailable

36

Lock Washer 1/4”

211200025

$1.29

37

Flat Washer 4 mm, Stainless

234042600

$1.15

38

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

39

Hex. Screw M6 X 25

207162560

$1.47

40

Flanged Bushing

293350014

$12.99

41

Arm

277000459

Unavailable

42

Tie-Rap 180 mm

414115200

$0.11

43

Flat Washer M6, Stainless

234062600

$0.77

44

Cable Support

204390035

Unavailable

45

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

46

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

47

Loctite 271, 10 ml

293800005

$26.99

48

Spacer

204390057

Unavailable

49

Lower Clip

204390055

Unavailable

50

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

51

Adjustment Block

204390056

Unavailable

52

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215054560

Unavailable

53

SPACER - Call your local BRP dealership

277000593

Unavailable
