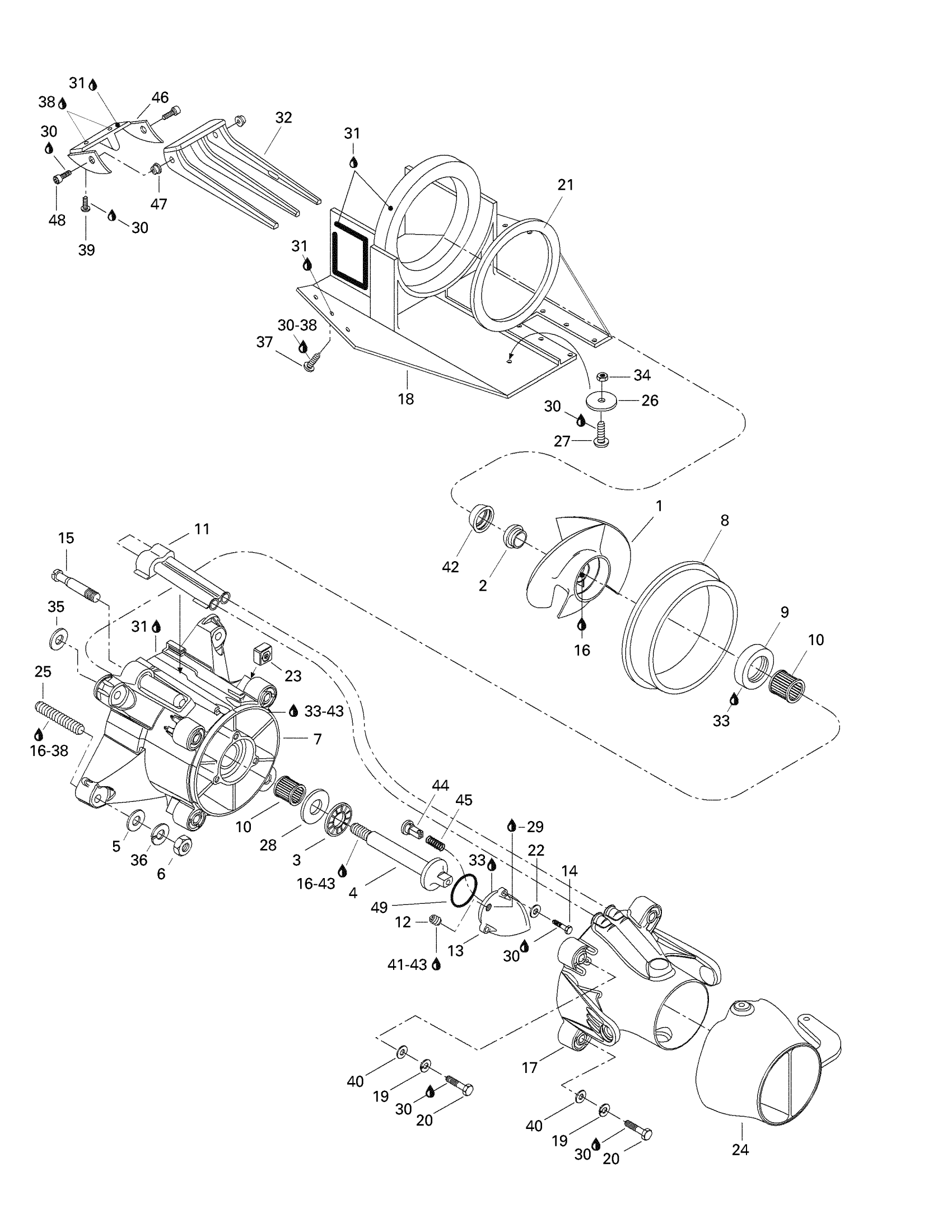

Sea-doo Challenger, 5603/5606, 1997 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

204160027

Unavailable

2

Impeller Boot

271000516

$7.88

3

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Flat Washer 10 mm, Stainless

234001600

$1.04

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 7 - 11.

295500521

Unavailable

8

Wear Ring

271000290

$54.45

9

Oil Seal

267000094

$20.12

10

Needle Bearing

293350017

$24.60

11

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$8.06

13

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.40

15

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

16

Loctite 271, 10 ml

293800005

$23.85

17

Venturi Ass'y

271000512

$194.75

18

Shoe (Black)

204120019

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.52

20

SCREW-HEX.CAP DIN.931A2 - Call your local BRP dealership

215688060

Unavailable

21

SEAL NEOPRENE - Call your local BRP dealership

293200024

Unavailable

22

Flat Washer M5, Stainless

234051600

$0.73

23

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

24

Steering Nozzle

271000746

$188.78

25

STUD-M10 - Call your local BRP dealership

211300015

Unavailable

26

Anode-Zinc

271000477

Unavailable

27

Screw 1/4-20 x 5/8

211000084

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

Mobil Grate

204120015

Unavailable

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

34

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

35

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

36

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

37

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

38

Silicone Sealant 51388, 300 ml

296000309

$36.99

39

Phillips Screw M6 X 25

208562560

$2.21

40

Stainless, Flat Washer 8 mm

234081600

$0.52

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

Impeller Ring

271000517

$7.88

43

Was 293800041 Loctite Primer 7649

219704458

$41.99

44

Pusher

271000703

Unavailable

45

SPRING - Call your local BRP dealership

271000704

Unavailable

46

GRATE SUPPORT - Call your local BRP dealership

204120014

Unavailable

47

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

48

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

49

O-Ring

293300011

$7.42
