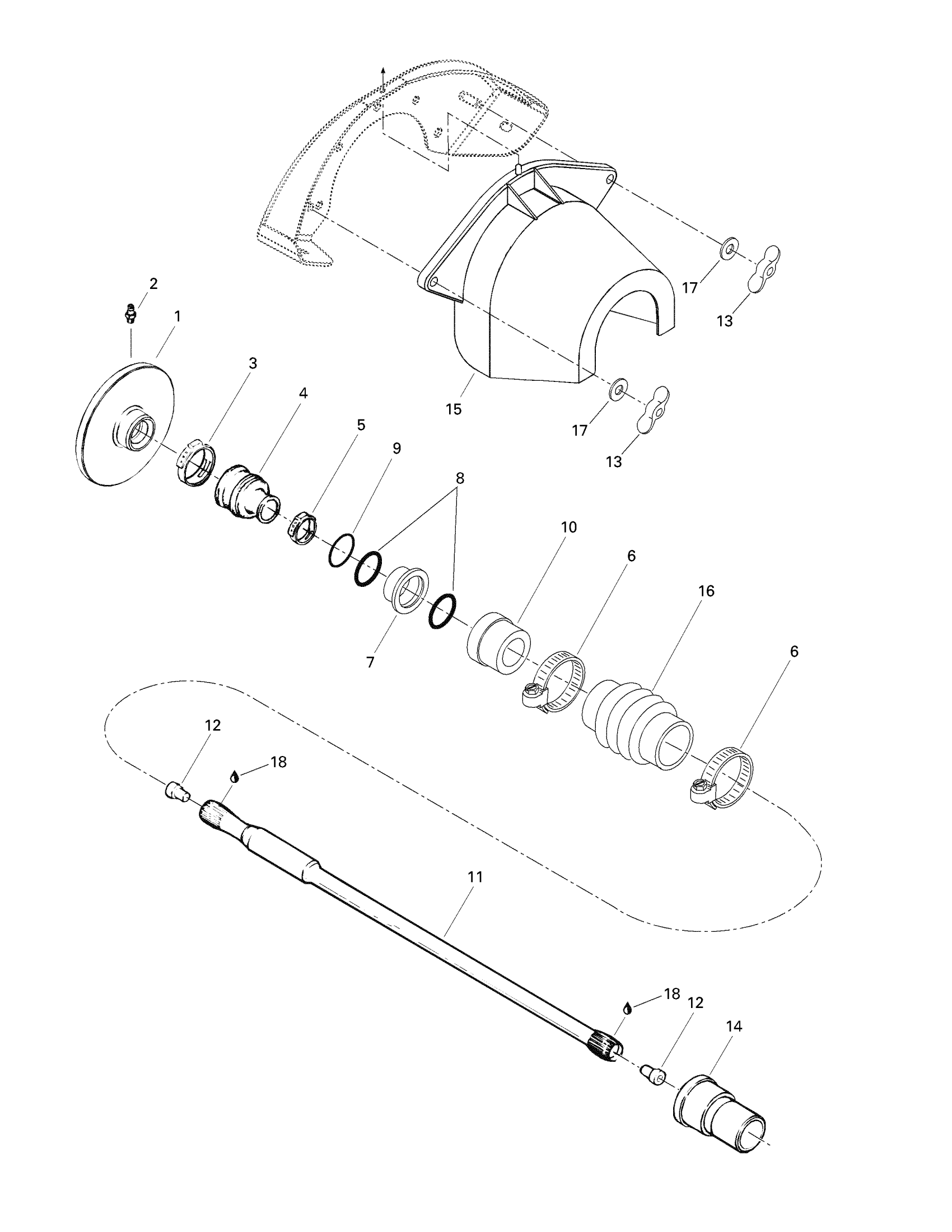

Sea-doo Challenger, 5603/5606, 1997 Drive System Diagram

#

Description
Price

1

Clutch-Flywheel | Includes 23 - 24.

290958056

Unavailable

2

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$9.28

7

Support Ring

272000064

$61.16

8

O-Ring

293300032

$5.61

9

O-Ring

293300036

$10.21

10

Carbon Ring

272000770

$41.01

11

Drive Shaft

204120045

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$1.99

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

Flywheel Guard

272000038

Unavailable

16

BELLOWS - Call your local BRP dealership

272000184

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$2.27

18

Synthetic Grease, 400 G

293550010

Unavailable
