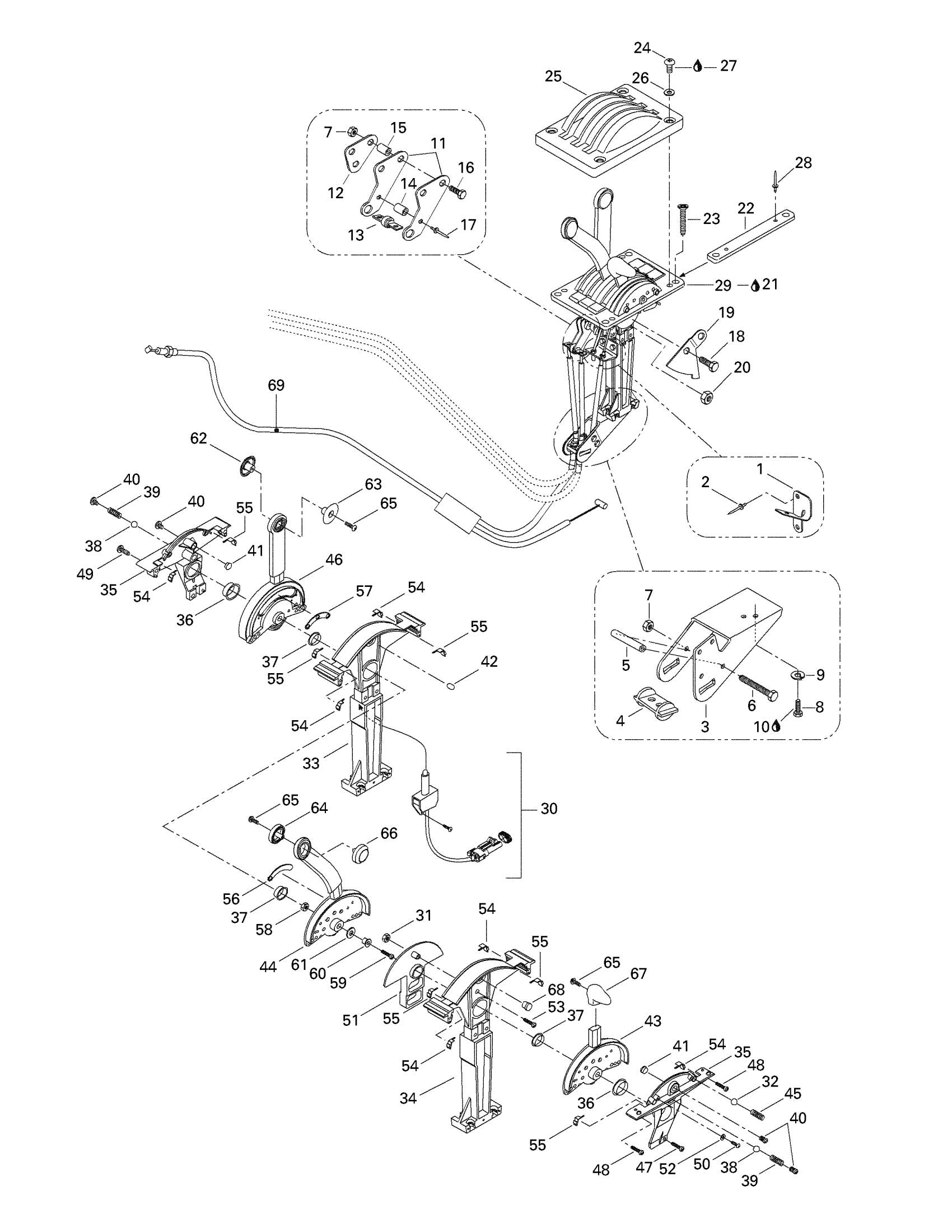

Sea-doo Challenger, 5603/5606, 1997 Control Handle Diagram

#

Description
Price

1

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

2

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

3

Welded Support

277000577

Unavailable

4

PIVOT BRACKET - Call your local BRP dealership

277000451

Unavailable

5

SPACER - Call your local BRP dealership

277000453

Unavailable

6

Screw M6 x 80

210100010

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Hex. Screw M6 x 12

210000011

Unavailable

9

Lock Washer Helical M6

234161601

$1.15

10

Loctite 243, 10 ml

293800060

$21.49

11

LINK - REVERSE - Call your local BRP dealership

277000578

Unavailable

12

Compensator Link

277000583

Unavailable

13

PIVOT BRACKET - Call your local BRP dealership

277000450

Unavailable

14

SPACER - Call your local BRP dealership

277000449

Unavailable

15

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

16

Hex. Screw M6 X 25

207162560

$1.47

17

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

18

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

19

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

20

Hex. Elastic Nut M5 | X

232551600

$1.15

21

Synthetic Grease, 400 G

293550010

Unavailable

22

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

23

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216153060

Unavailable

24

Phillips Screw M4 X 10

208641060

$1.01

25

Control Cover

277000505

Unavailable

26

Flat Washer 4 mm

234040600

$0.55

27

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

28

Pop Rivet 3/16"

293150013

$1.37

29

Control Ultraflex Ass'y | Includes 29 - 68.

204390052

Unavailable

30

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

31

Hex. Elastic Nut M5 | X

232551600

$1.15

32

Ball 6 mm

277000652

Unavailable

33

LH Frame

277000394

Unavailable

34

RH Frame

277000395

Unavailable

35

Half-Case

277000703

Unavailable

36

BUSHING - Call your local BRP dealership

277000397

Unavailable

37

BUSHING - Call your local BRP dealership

277000398

Unavailable

38

BALL - Call your local BRP dealership

277000399

Unavailable

39

SPRING - Call your local BRP dealership

277000400

Unavailable

40

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

41

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

42

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

43

Trim Lever

277000654

Unavailable

44

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

45

Spring

277000656

Unavailable

46

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

47

SCREW M5 X 60 - Call your local BRP dealership

277000420

Unavailable

48

Screw M5 X 20

277000421

Unavailable

49

Screw M5 X 70

277000422

Unavailable

50

Screw M2.9 x 9.5

277000657

Unavailable

51

Spacer Frame

277000406

Unavailable

52

Washer

277000658

Unavailable

53

Screw M5 X 25

277000412

Unavailable

54

RH Water Seal

277000423

Unavailable

55

LH Water Seal

277000424

Unavailable

56

THROTTLE LEVER SPACER - Call your local BRP dealership

277000659

Unavailable

57

Shift Lever Spacer

277000408

Unavailable

58

NUT M6 - Call your local BRP dealership

277000425

Unavailable

59

Screw M6 x 35

277000426

Unavailable

60

Bushing

277000427

Unavailable

61

Washer

277000428

Unavailable

62

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

63

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

64

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

65

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

66

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

67

Grab Handle (Black)

277000713

Unavailable

68

Friction Support

277000715

Unavailable

69

Throttle Cable

204390043

Unavailable
