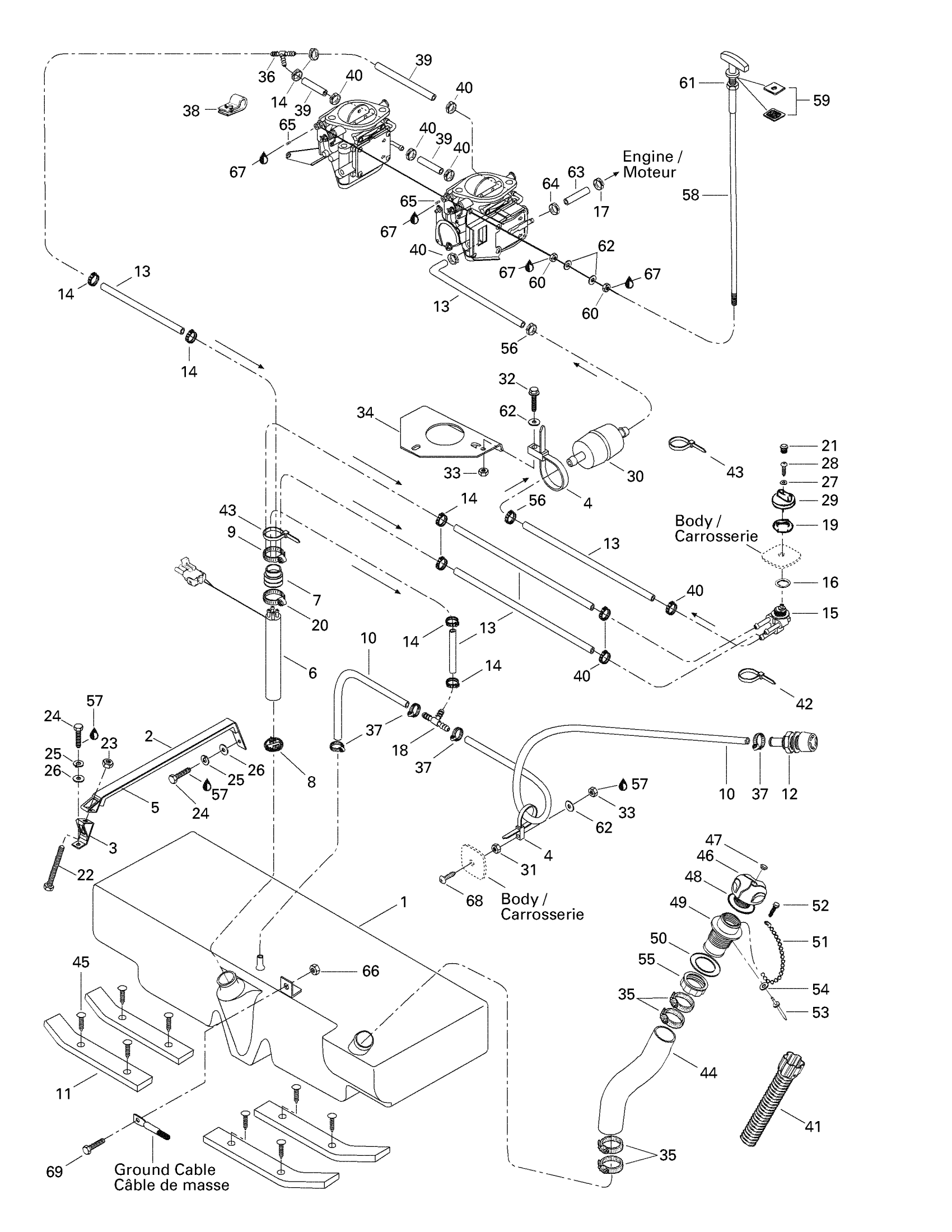

Sea-doo Challenger, 5603/5606, 1997 Fuel System Diagram

#

Description
Price

1

Fuel Tank (Plastic), Model 5603

204560025

Unavailable

Fuel Tank (Aluminum)

204560019

Unavailable

2

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Tie-Rap

293750017

Unavailable

5

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

6

Baffle Pick-up Ass'y | Includes 6 - 8.

275500253

Unavailable

7

Tube Adapter

275500111

Unavailable

8

Fuel Filter

204560032

Unavailable

9

Tridon Clamp

293650035

$7.29

10

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

11

Rubber Pad 330 mm

293830020

Unavailable

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

Hose 6 mm

204000068

Unavailable

14

Clic Clamp

293650059

Unavailable

15

Fuel Valve

275500098

$43.99

16

GASKET - Call your local BRP dealership

293250004

Unavailable

17

Tridon Gear Clamp

293650170

$1.99

18

T-Fitting

204560038

Unavailable

19

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

20

Tridon Clamp

293650023

$13.49

21

Black, Cap

275500241

$3.49

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.48

24

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

25

Lock Washer 8 mm, Stainless

234181601

$0.55

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Flat Washer 4 mm

234040600

$0.55

28

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

29

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

30

Fuel Filter This part replaces 414363600.

605352516

$18.49

31

Hex. Nut M6

232061600

$1.15

32

Hex. Forming Screw M6 X 20

207162060

$1.29

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Fixation Plate

291000749

Unavailable

35

Tridon Clamp

293650023

$13.49

36

Y-Fitting

293710059

$9.69

37

TRIDON GEAR CLAMP - Call your local BRP dealership

293650005

Unavailable

38

Clip

293850018

Unavailable

39

Hose 6 mm

204000068

Unavailable

40

Caillau Clic Clamp

293650060

Unavailable

41

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

42

Tie Wrap 368 mm

293750008

$1.04

43

Tie-Rap 180 mm

414115200

$0.11

44

Filler Neck Hose

204000172

Unavailable

45

Black, Dart

293730006

$0.99

46

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

47

Black, Snap Cap

293000034

$9.39

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

$14.82

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.48

53

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

54

Flat Washer M3, Stainless

234032600

$0.55

55

Filler Neck Nut, Fuel

211100012

$14.22

56

Clic Clamp

293650057

Unavailable

57

Loctite 271, 10 ml

293800005

$26.99

58

Choke Cable Ass'y | Includes 58 - 62.

270000186

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

$1.15

61

Hex. Nut

211100007

Unavailable

62

Stainless Flat Washer M6

234061600

$0.33

63

Formed Hose

275500270

Unavailable

64

Oetiker Clamp

293650042

$3.09

65

Allen Screw M4 x 6

210100014

Unavailable

66

Hex. Elastic Stop Nut M6

232561600

$1.15

67

Loctite 243, 10 ml

293800060

$21.49

68

Phillips Screw M6 X 25

208562560

$2.32

69

Hex. Screw M6 x 12

210000011

Unavailable
