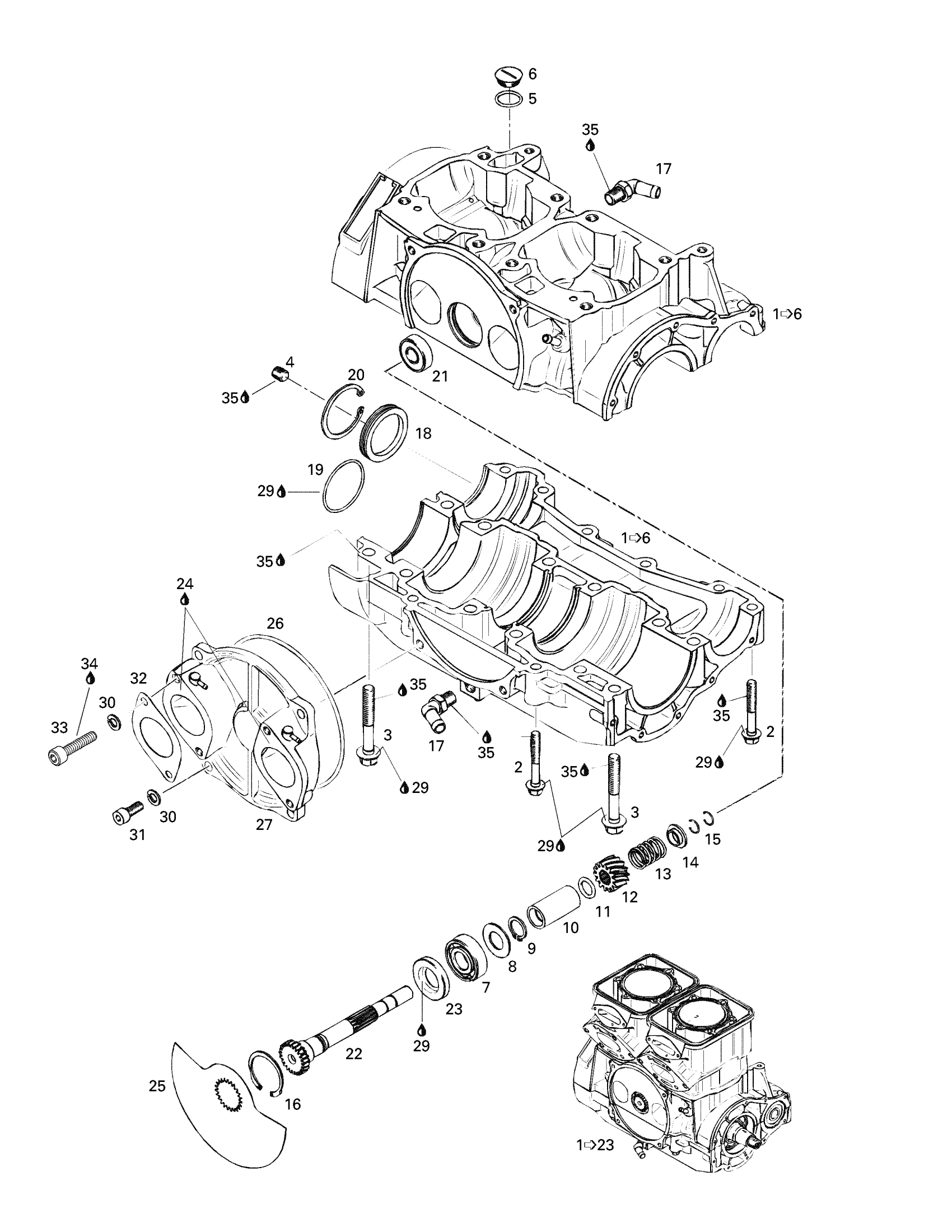

Sea-doo Challenger, 5603/5606, 1997 Crankcase, Rotary Valve Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 23.

290881527

Unavailable

1

Crankcase Ass'y <<787>>(White) | Includes 1 - 6.

290887239

Unavailable

2

Hex. Flange Screw M8 x 55

290240328

Unavailable

3

Flange Screw M10 x 73,5

290941333

Unavailable

4

Drain Plug 1/8"

290240483

Unavailable

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

8

Shim

290227439

Unavailable

9

SNAP RING - Call your local BRP dealership

420845450

Unavailable

10

Distance Sleeve

290847287

Unavailable

11

O-Ring

293300024

$8.57

12

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

13

Spring

290938810

Unavailable

14

Spring Seat

290827430

Unavailable

15

Circlip

290845160

Unavailable

16

Lock Ring

420945880

$4.44

17

Angular Tube

420922242

$14.83

18

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

19

O-Ring

290230300

Unavailable

20

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

21

Ball Bearing

420932797

$19.99

22

Rotary Valve Shaft

290837350

Unavailable

23

OIL SEAL - Call your local BRP dealership

290930580

Unavailable

24

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

25

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

26

O-Ring

290831765

Unavailable

27

Cover Rotary Valve

290811241

Unavailable

28

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886390

Unavailable

29

Dow Corning 111, 150 g

413707000

$59.99

30

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

31

Cylinder Screw M8 x 20

290240073

Unavailable

32

Gasket This part replaces 293250070.

293250134

$13.76

33

Screw Allen M8 x 75

215987560

Unavailable

34

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

35

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
