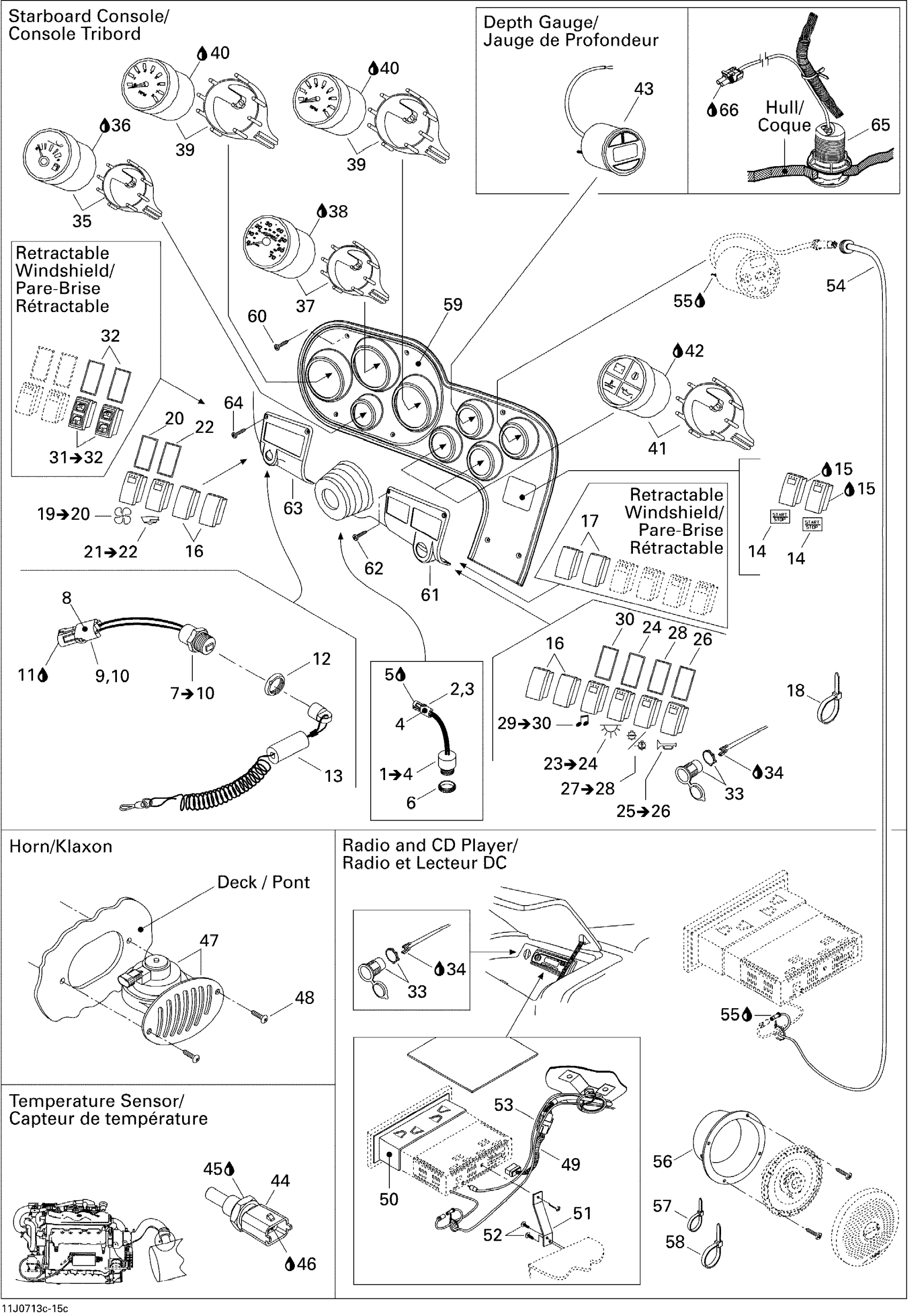

Sea-doo Challenger 230SE 215 SCIC, 2007 Electrical Accessories 3 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$82.81

2

Male Terminal | XT Models

278000222

$2.55

3

Wire Seal

278000218

$3.48

4

Female Housing, 2 Circuits

278000217

$7.59

5

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

6

Buzzer Nut

278000707

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$89.67

8

Male Housing, 3 Circuits

278000273

$7.59

9

Wire Seal

278000218

$3.48

10

Female Terminal

278000223

$2.55

11

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

12

Safety Nut (DESS Switch)

278002963

$2.72

13

Safety Lanyard

204471206

$68.87

14

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

16

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

17

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

18

Tie Wrap 142 mm

293750002

$0.88

19

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

20

Gasket

204470132

Unavailable

21

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

22

Gasket

204470132

Unavailable

23

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

24

Gasket

204470132

Unavailable

25

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$44.75

26

Gasket

204470132

Unavailable

27

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

28

Gasket

204470132

Unavailable

29

STEREO SWITCH - Call your local BRP dealership | Includes 28 to 29

204471116

Unavailable

30

Gasket

204470132

Unavailable

31

WINDSHIELD SWITCH - Call your local BRP dealership | Retractable Windshield

204471167

Unavailable

32

Gasket

204470132

Unavailable

33

DC Outlet

710001248

$31.17

34

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

35

Fuel Gauge

204471152

Unavailable

36

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

37

SPEEDOMETER GAUGE - Call your local BRP dealership

204471153

Unavailable

38

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

39

TACHOMETER GAUGE - Call your local BRP dealership

204471155

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

41

Engine Warning Gauge

204471156

Unavailable

42

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

43

Depth Gauge

204471157

Unavailable

44

Temperature Sensor

278002895

$31.82

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

46

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

47

Horn, Stainless

204471160

Unavailable

48

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

49

Stereo Adaptor Harness

204470930

Unavailable

50

STEREO TRIM RING - Call your local BRP dealership

204471010

Unavailable

51

RADIO SUPPORT - Call your local BRP dealership

204471194

Unavailable

52

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

53

Antenna

204470931

Unavailable

54

Stereo Remote Cable

204470993

Unavailable

55

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

56

SPEAKER COVER ASS'Y - Call your local BRP dealership

204470982

Unavailable

57

Tie Wrap 94 mm | 4X4

293750001

$0.83

58

Tie Wrap 142 mm

293750002

$0.88

59

Fascia

204471172

Unavailable

60

Socket Head Screw M4 X 25

205342569

Unavailable

61

RH Panel Switch

204471173

Unavailable

62

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

63

LH PANEL SWITCH - Call your local BRP dealership

204471174

Unavailable

64

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

65

Depth Sensor

204471292

Unavailable

66

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
