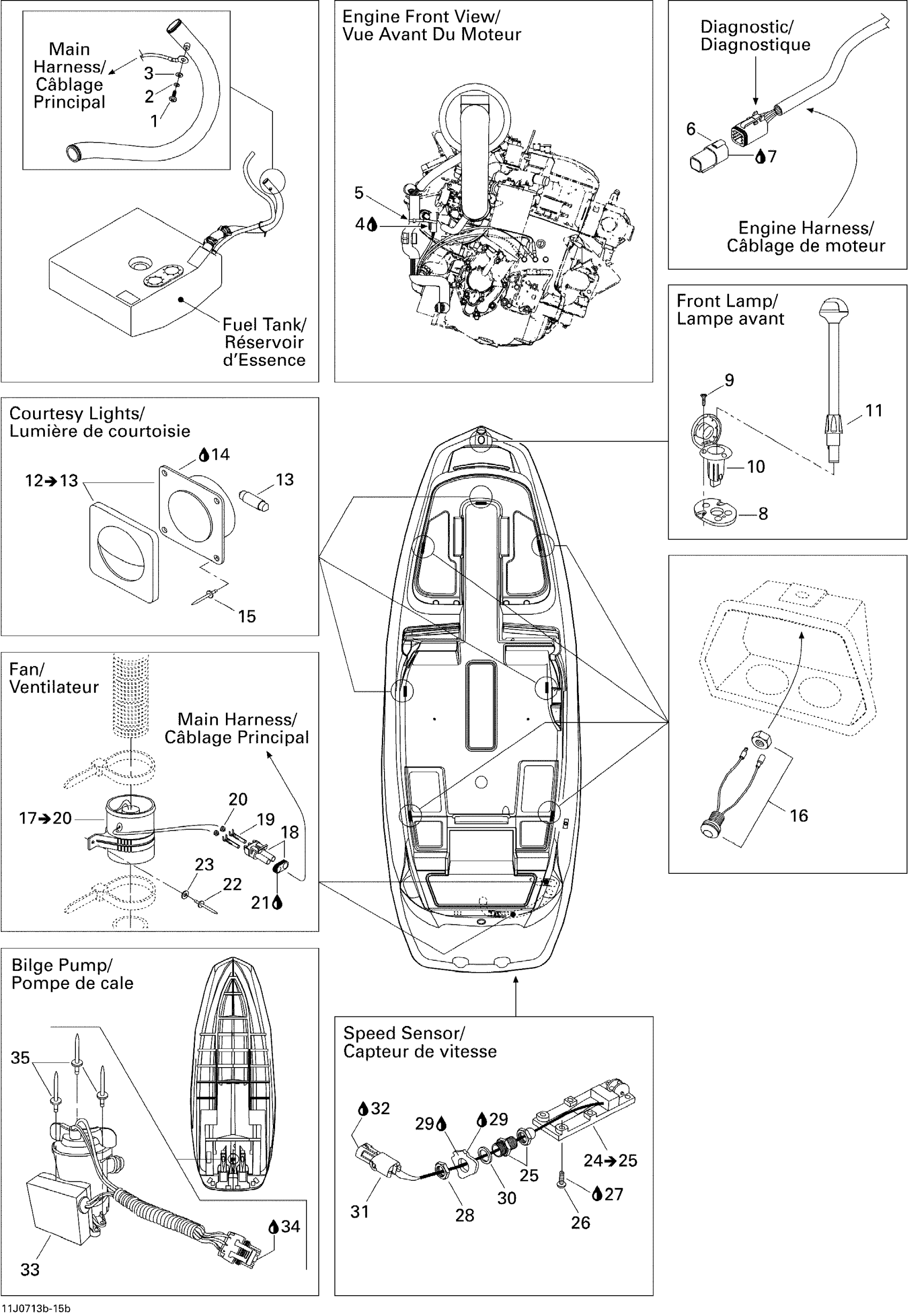

Sea-doo Challenger 230SE 215 SCIC, 2007 10- Electrical Accessories 2 Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Lock Washer 4 mm

234141601

$1.15

3

Flat Washer 4 mm, Stainless

234041600

$1.15

4

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

5

Tie-Rap 180 mm

414115200

$0.11

6

Diagnostic Connector

278002704

$19.49

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

9

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

10

Front Lamp Base

204471217

Unavailable

11

FRONT LAMP POLE - Call your local BRP dealership

204471218

Unavailable

12

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

13

BULB - Call your local BRP dealership

204470081

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

16

LED Light Ass'y

204471169

Unavailable

17

Fan Ass'y | Includes 44 to 47

204470108

$144.99

18

Male Connector, 2 Circuits

278000220

$15.49

19

Female Terminal

278000223

$3.19

20

Wire Seal

278000218

$4.39

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Pop Rivet 3/16"

293150008

$0.50

23

Flat Washer 5 mm, Stainless

234052600

$0.77

24

Speed Sensor Ass'y | Includes 19 to 20

204471199

Unavailable

25

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

26

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

27

Loctite 243, 10 ml

293800060

$21.49

28

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

29

Silicone Sealant 51388, 300 ml

296000309

$36.99

30

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

31

Female Housing, 2 Circuits

278000217

$9.59

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Bilge Pump With Screen

204471176

Unavailable

34

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

35

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
