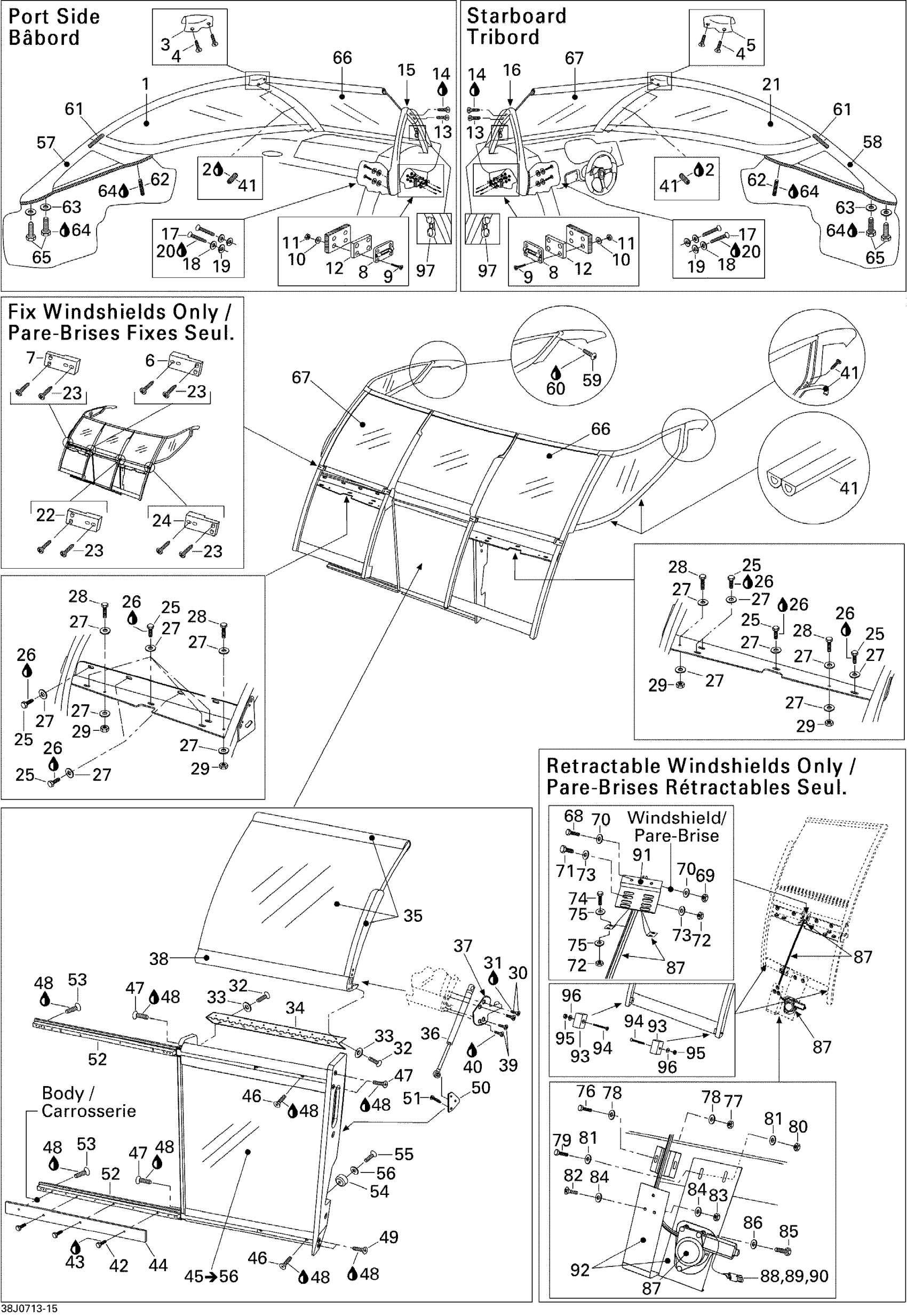

Sea-doo Challenger 230SE 215 SCIC, 2007 Windshield Diagram

#

Description
Price

1

WINDSHIELD WING ASS'Y, PORT SIDE - Call your local BRP dealership

204072506

Unavailable

2

Loctite 243, 10 ml

293800060

$20.77

3

Corner Cap, Port Side

204072925

Unavailable

4

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

5

Corner Cap, Starboard

204072926

Unavailable

6

Clamp

204130165

Unavailable

7

Clamp

204072933

Unavailable

8

DOOR LATCH - Call your local BRP dealership

204100204

Unavailable

9

Phillips Screw M4 X 30

208443060

Unavailable

10

Flat Washer 4 mm, Stainless

234041600

$0.91

11

Elastic Stop Nut M4

232541600

$0.92

12

Latch Spacer 3/8"

204072976

Unavailable

12

LATCH SPACER 1/8 - Call your local BRP dealership

204072977

Unavailable

13

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

14

Loctite 243, 10 ml

293800060

$20.77

15

Stanchion, Port Side

204072534

Unavailable

16

Stanchion, Starboard

204072741

Unavailable

17

Hex. Screw M8 X 18

207181860

$1.43

18

Flat Washer 8 mm, Stainless

234082600

$1.98

19

Lock Washer 8 mm, Stainless

234181601

$0.46

20

Loctite 243, 10 ml

293800060

$20.77

21

Windshield Wing Ass'y, Starboard

204072517

Unavailable

22

Clamp

204130165

Unavailable

23

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

24

Clamp

204072934

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.22

26

Loctite 243, 10 ml

293800060

$20.77

27

Flat Washer M6, Stainless

234062600

$0.64

28

Hex. Screw M6 X 25

207162560

$1.22

29

Hex. Elastic Stop Nut M6

232561600

$0.92

30

Tapping Phillips Screw #10X1/2"

204100210

Unavailable

31

Loctite 243, 10 ml

293800060

$20.77

32

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

33

Flat Washer 4 mm, Stainless

234041600

$0.91

34

Center Door Hinge

204072540

Unavailable

35

CENTER DOOR WINDOW - Call your local BRP dealership

204072727

Unavailable

36

GAS SHOCK - Call your local BRP dealership

204072899

Unavailable

37

Shock Support, Starboard

204072901

Unavailable

37

Shock Support, Port Side

204072900

Unavailable

38

Hinge Extrusion

204072830

Unavailable

39

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

40

Loctite 243, 10 ml

293800060

$20.77

41

WINDSHIELD INSTALLATION HARDWARE KIT - Call your local BRP dealership

204072544

Unavailable

42

Hex. Screw M6 X 30

207163060

$1.25

43

Loctite 243, 10 ml

293800060

$20.77

44

Walk-Thru Door Support

204072896

Unavailable

45

Walk-Thru Door Ass'y | Includes 45 to 56

204072728

Unavailable

46

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

47

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.88

48

Loctite 243, 10 ml

293800060

$20.77

49

Phillips Screw M6 X 25

208562560

$1.92

50

Shock Bracket

204071673

Unavailable

51

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

52

Drawer Slides, Long

204070612

Unavailable

53

Phillips Screw M4 X 12

208641260

Unavailable

54

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

55

PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership

204100147

Unavailable

56

Flat Washer M3, Stainless

234032600

$0.52

57

Windshield Wing Support, Port Side

204072833

Unavailable

58

Windshield Wing Support, Starboard

204072834

Unavailable

59

SCREW M5 X 10 - Call your local BRP dealership

208651060

Unavailable

60

Loctite 243, 10 ml

293800060

$20.77

61

STAINLESS STEEL DOWEL PIN 1/4 - Call your local BRP dealership

204130183

Unavailable

62

Threaded Stud M8 X 25

204130184

Unavailable

63

Flat Washer 8 mm, Stainless

234082600

$1.98

64

Loctite 243, 10 ml

293800060

$20.77

65

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

66

WINDSHIELD GATE ASS'Y, PORT SIDE - Call your local BRP dealership

204072991

Unavailable

67

WINDSHIELD GATE ASS'Y, STARBOARD - Call your local BRP dealership

204072995

Unavailable

68

Hex. Screw M5 X 20

207152060

$1.22

69

Hex. Elastic Nut M5 | X

232551600

$0.91

70

Flat Washer M5, Stainless

234051600

$0.64

71

Hex. Screw M6 X 16

207161660

$1.22

72

Hex. Elastic Stop Nut M6

232561600

$0.92

73

Flat Washer M6, Stainless

234062600

$0.64

74

Hex. Screw M6 X 45

207164560

$1.51

75

Stainless Flat Washer M6

234061600

$0.25

76

Hex. Screw M6 X 16

207161660

$1.22

77

Hex. Elastic Stop Nut M6

232561600

$0.92

78

Stainless Flat Washer M6

234061600

$0.25

79

Hex. Screw M6 X 16

207161660

$1.22

80

Hex. Elastic Stop Nut M6

232561600

$0.92

81

Flat Washer M6, Stainless

234062600

$0.64

82

Phillips Screw M6 X 25

208562560

$1.92

83

Hex. Elastic Stop Nut M6

232561600

$0.92

84

Flat Washer M6, Stainless

234062600

$0.64

85

Hex. Screw M6 X 16

207161660

$1.22

86

Flat Washer M6, Stainless

234062600

$0.64

87

WINDSHIELD ACTUATOR - Call your local BRP dealership

204072539

Unavailable

88

Female Housing, 2 Circuits

278000217

$7.59

89

Male Terminal | XT Models

278000222

$2.55

90

Wire Seal

278000218

$3.48

91

WINDSHIELD ACTUATOR BRACKET - Call your local BRP dealership

204073015

Unavailable

92

ACTUATOR MOTOR SUPPORT - Call your local BRP dealership

204073014

Unavailable

93

Stopper | Retractable Windshield Only

204073028

Unavailable

94

PHILLIPS SCREW M4 X 50 - Call your local BRP dealership

208445060

Unavailable

95

Elastic Stop Nut M4

232541600

$0.92

96

Flat Washer 4 mm, Stainless

234042600

$0.92

97

Door Latch

204072875

Unavailable
