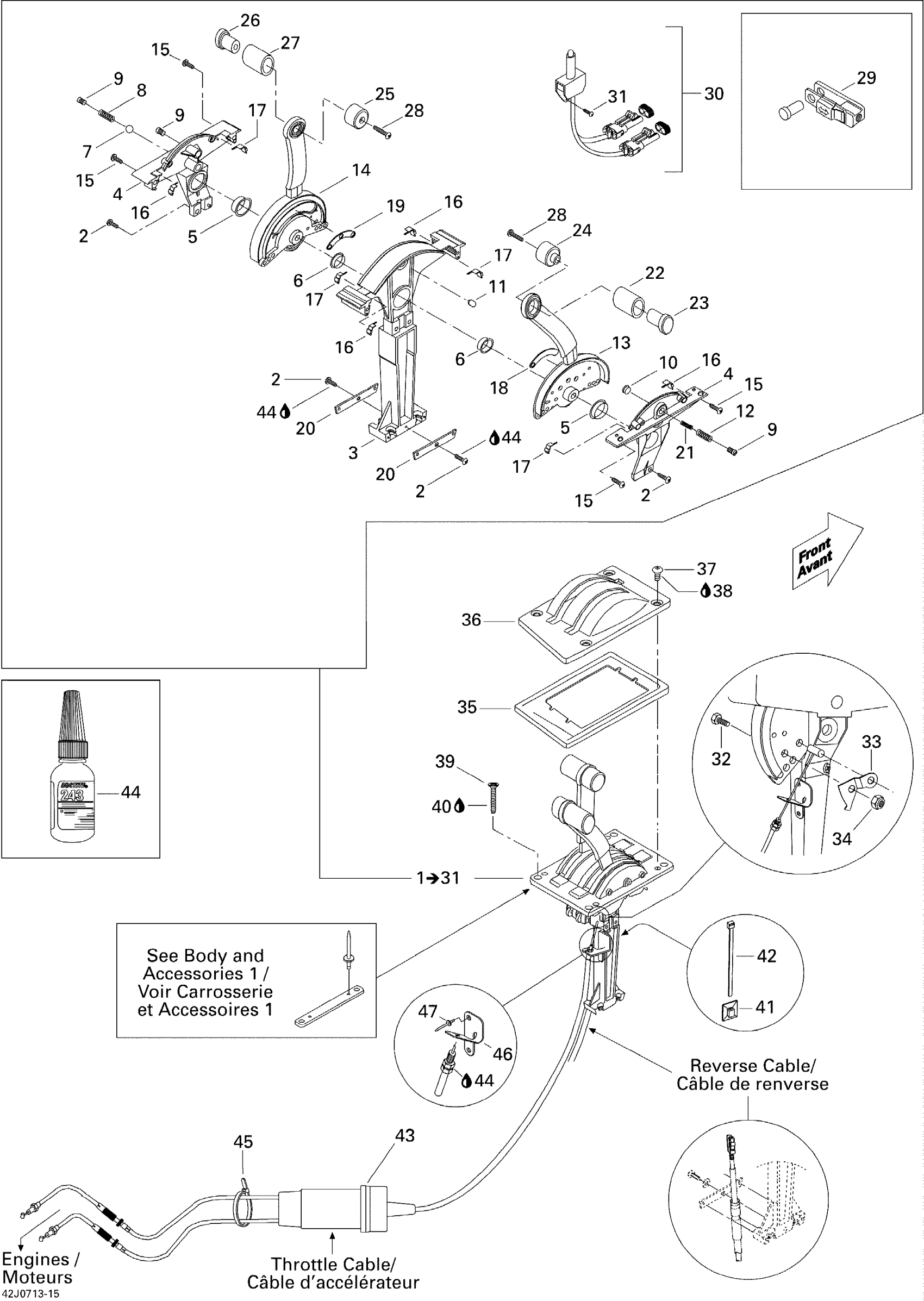

Sea-doo Challenger 230SE 215 SCIC, 2007 05- Control Handle Diagram

#

Description
Price

1

ULTRAFLEX CONTROL ASS'Y - Call your local BRP dealership | Includes 1 to 29

204390493

Unavailable

2

SCREW M5 X 16 - Call your local BRP dealership

204130092

Unavailable

3

LH Frame

204390224

Unavailable

4

Half-Case

277000703

Unavailable

5

BUSHING - Call your local BRP dealership

277000397

Unavailable

6

BUSHING - Call your local BRP dealership

277000398

Unavailable

7

BALL - Call your local BRP dealership

277000399

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

10

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

11

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

12

SPRING - Call your local BRP dealership

277000401

Unavailable

13

THROTTLE LEVER - Call your local BRP dealership

204390502

Unavailable

14

SHIFT LEVER - Call your local BRP dealership

204390503

Unavailable

15

SCREW M5 X 20 - Call your local BRP dealership

204100016

Unavailable

16

RH Water Seal

277000423

Unavailable

17

LH Water Seal

277000424

Unavailable

18

SPACER - Call your local BRP dealership

277000707

Unavailable

19

Shift Lever Spacer

277000408

Unavailable

20

RETAINING PLATE - Call your local BRP dealership

204390227

Unavailable

21

Spring

277000656

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

CYLINDER - Call your local BRP dealership

204390506

Unavailable

24

Cap

204390507

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Cylinder

204390508

Unavailable

27

SHIFT LEVER SLEEVE - Call your local BRP dealership

204390504

Unavailable

28

SCREW M6 X 25 - Call your local BRP dealership

204100214

Unavailable

29

CLEVIS L26 - Call your local BRP dealership | Not Shown

204390226

Unavailable

30

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

204390464

Unavailable

31

SCREW M3 X 6 - Call your local BRP dealership

208630660

Unavailable

32

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

33

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

34

Hex. Elastic Nut M5 | X

232551600

$1.15

35

Control Handle Base Plate

204390482

Unavailable

36

Control Cover

204390483

Unavailable

37

Phillips Screw M4 X 10

208641060

$1.01

38

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

39

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

40

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

41

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

42

Tie Wrap 94 mm | 4X4

293750001

$1.03

43

Throttle Cable

204390484

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49

45

Tie-Rap 180 mm

414115200

$0.11

46

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

47

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable
