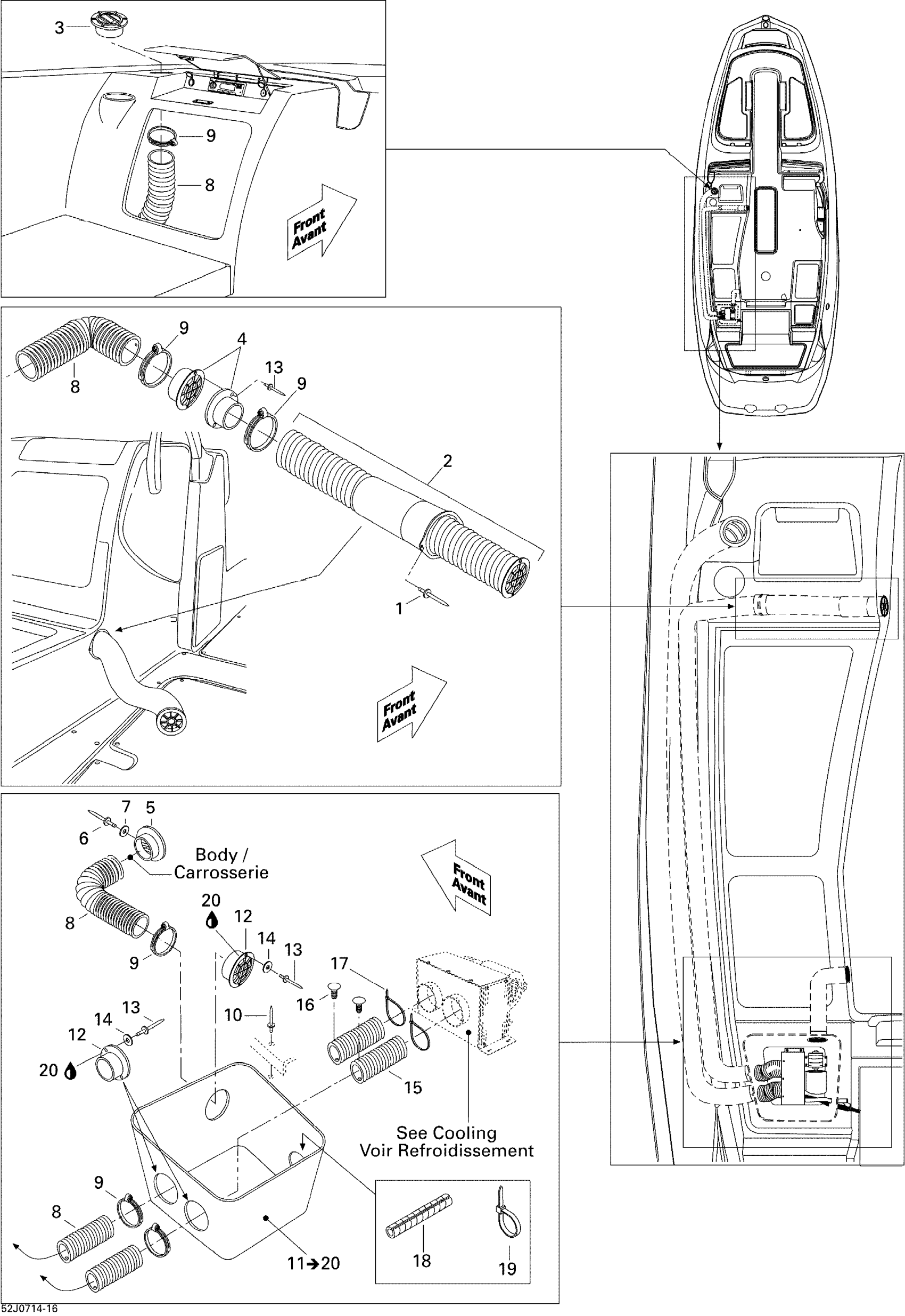

Sea-doo Challenger 230 WAKE 155NA, 2007 10- Swimmer Heating System Diagram

#

Description
Price

1

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

2

HEATER TUBE ASS'Y - Call your local BRP dealership

204073799

Unavailable

3

HEATER VENT GRILL - Call your local BRP dealership

204072852

Unavailable

4

HEATER GRILL - Call your local BRP dealership

204072853

Unavailable

5

GRILL S/S - INTAKE/HEATER - Call your local BRP dealership This part replaces 204073011.

204073852

Unavailable

6

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

7

Flat Washer 3 mm, Stainless Steel

234031600

$0.55

8

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

9

Tridon Clamp

293650179

$11.49

10

Pop Rivet 3/16”

204100051

Unavailable

11

Heater Storage Ass'y | Includes 11 to 20

204073008

Unavailable

12

HEATER GRILL - Call your local BRP dealership

204072853

Unavailable

13

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

14

Flat Washer M3, Stainless

234032600

$0.55

15

VENT HOSE - Call your local BRP dealership

204073009

Unavailable

16

Black, Dart

293730006

$0.99

17

Tie Wrap 368 mm

293750008

$1.04

18

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

Silicone Sealant 51388, 300 ml

296000309

$36.99
