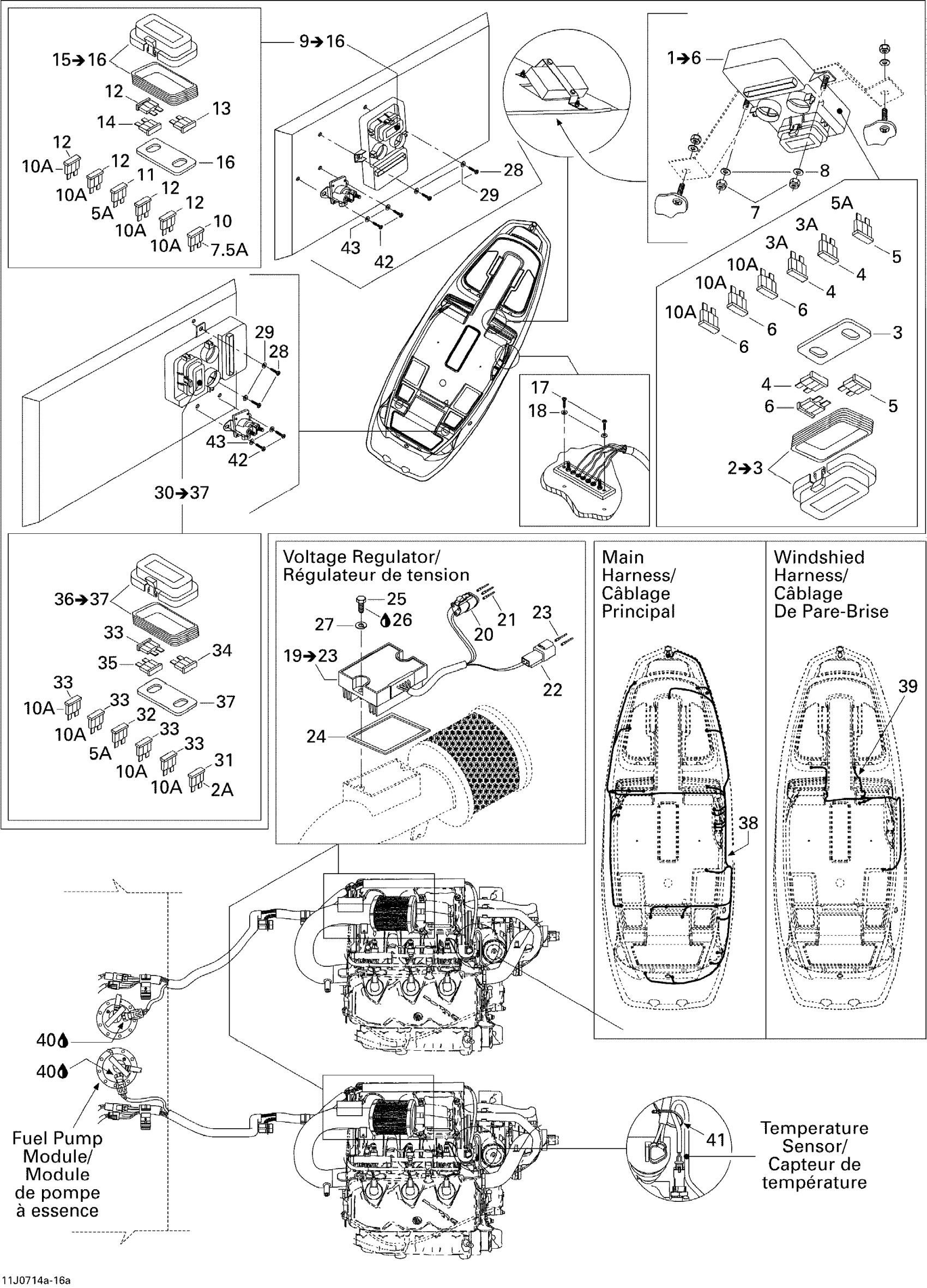

Sea-doo Challenger 230 WAKE 155NA, 2007 Electrical Accessories 1 Diagram

#

Description
Price

1

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.28

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Flat Washer M6, Stainless

234062600

$0.77

9

Fuse Block | Includes 4 to 11

204471091

Unavailable

10

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

11

Fuse, 5 Amperes | CE

278000344

$3.28

12

Fuse, 10 Amperes | North America

278001197

$2.21

13

Fuse, 20 Amperes

409003900

$3.28

14

Fuse, 30 Amperes

410917200

$3.28

15

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

16

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

17

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

18

Flat Washer 4 mm, Stainless

234041600

$1.15

19

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

20

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

21

Female Terminal

278000632

$2.09

22

Male Housing, 2 Circuits

409206900

$9.59

23

Female Terminal

515175567

$7.69

24

SEAL - Call your local BRP dealership

293250123

Unavailable

25

TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership

204100134

Unavailable

26

Loctite 271, 10 ml

293800005

$26.99

27

Lock Washer 1/4”

211200025

$1.29

28

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

29

Flat Washer M6, Stainless

234062600

$0.77

30

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

31

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

32

Fuse, 5 Amperes | CE

278000344

$3.28

33

Fuse, 10 Amperes | North America

278001197

$2.21

34

Fuse, 20 Amperes

409003900

$3.28

35

Fuse, 30 Amperes

410917200

$3.28

36

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

37

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

38

Main Harness (Accessory Harness)

204471098

Unavailable

39

WINDSHIELD HARNESS - Call your local BRP dealership | Retractable Windshield

204471198

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Tie Wrap 142 mm

293750002

$1.25

42

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

43

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable
