- Challenger 230 WAKE 155NA, 2007
09- Seat, Front View

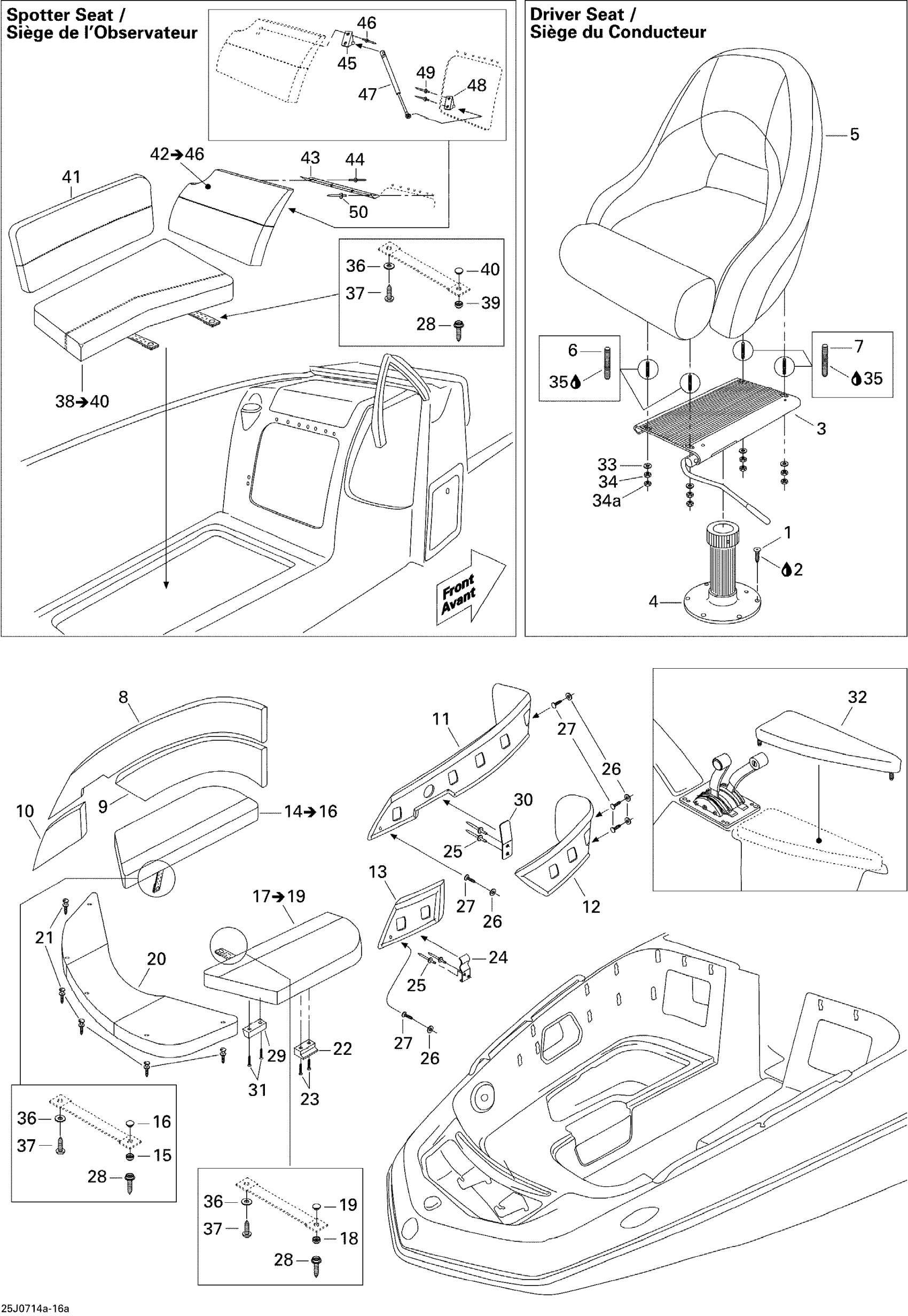

Sea-doo Challenger 230 WAKE 155NA, 2007 09- Seat, Front View Diagram
#
1
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership
204100201
Unavailable
2
Loctite 243, 10 ml
293800060
$21.49
3
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership
204613742
Unavailable
4
Seat Pedestal
204613743
Unavailable
5
Bucket Seat Ass'y | Includes 10 to 12
204613769
Unavailable
6
SEAT STUD 1/4-20 X 2 1/2 - Call your local BRP dealership
204613795
Unavailable
7
SEAT STUD 1/4-20 X 2 1/2 - Call your local BRP dealership
204613795
Unavailable
8
FRONT UPPER SIDE BACKREST, STARBOARD - Call your local BRP dealership
204613775
Unavailable
9
Front Lower Side Backrest, Starboard
204613968
Unavailable
10
Front Side Backrest, Starboard
204613969
Unavailable
11
FRONT UPPER SIDE BACKREST, PORT SIDE - Call your local BRP dealership
204613777
Unavailable
12
Front Lower Side Backrest, Port Side
204613970
Unavailable
13
Front Side Backrest, Port Side
204613971
Unavailable
14
Front Side Cushion, Starboard | Starboard, Includes 28 to 32
204613779
Unavailable
15
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
16
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
17
Front Side Cushion, Port Side | Portside, Includes 23 to 27
204613781
Unavailable
18
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
19
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
20
Front Cushion Ass'y
204613783
Unavailable
21
Dart
293730021
$7.79
22
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
23
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
24
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
25
Pop Rivet 3/16"
293150043
$2.09
26
Stainless Flat Washer M6
234061600
$0.33
27
Black Dart
293730014
$0.99
28
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
29
LATCH - Call your local BRP dealership
204611805
Unavailable
30
RETAINING CLIP - Call your local BRP dealership
204611531
Unavailable
31
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
32
Elbow Rest Cushion Ass'y, Starboard
204613785
Unavailable
33
Lock Washer 1/4”
211200025
$1.29
34
Flat Washer 8 mm, Stainless
234082600
$2.43
34a
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
35
Loctite 243, 10 ml
293800060
$21.49
36
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
37
Tapping Screw #8 X 3/4"
294100054
Unavailable
38
Spotter Cushion Ass'Y | Includes 41 to 45
204613770
Unavailable
39
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
40
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
41
Spotter Side Backrest
204613771
Unavailable
42
Spotter Backrest/Storage | Includes 42 to 46
204613772
Unavailable
43
Hinge
204613980
Unavailable
44
Pop Rivet 3/16"
293150008
$0.50
45
Shock Bracket
204073074
$27.99
46
Pop Rivet 3/16"
293150008
$0.50
47
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
48
Shock Bracket
204073074
$27.99
49
Pop Rivet 3/16"
293150008
$0.50
50
Pop Rivet 3/16"
293150043
$2.09
