- Challenger 230 WAKE 155NA, 2007
09- Body And Accessories 1

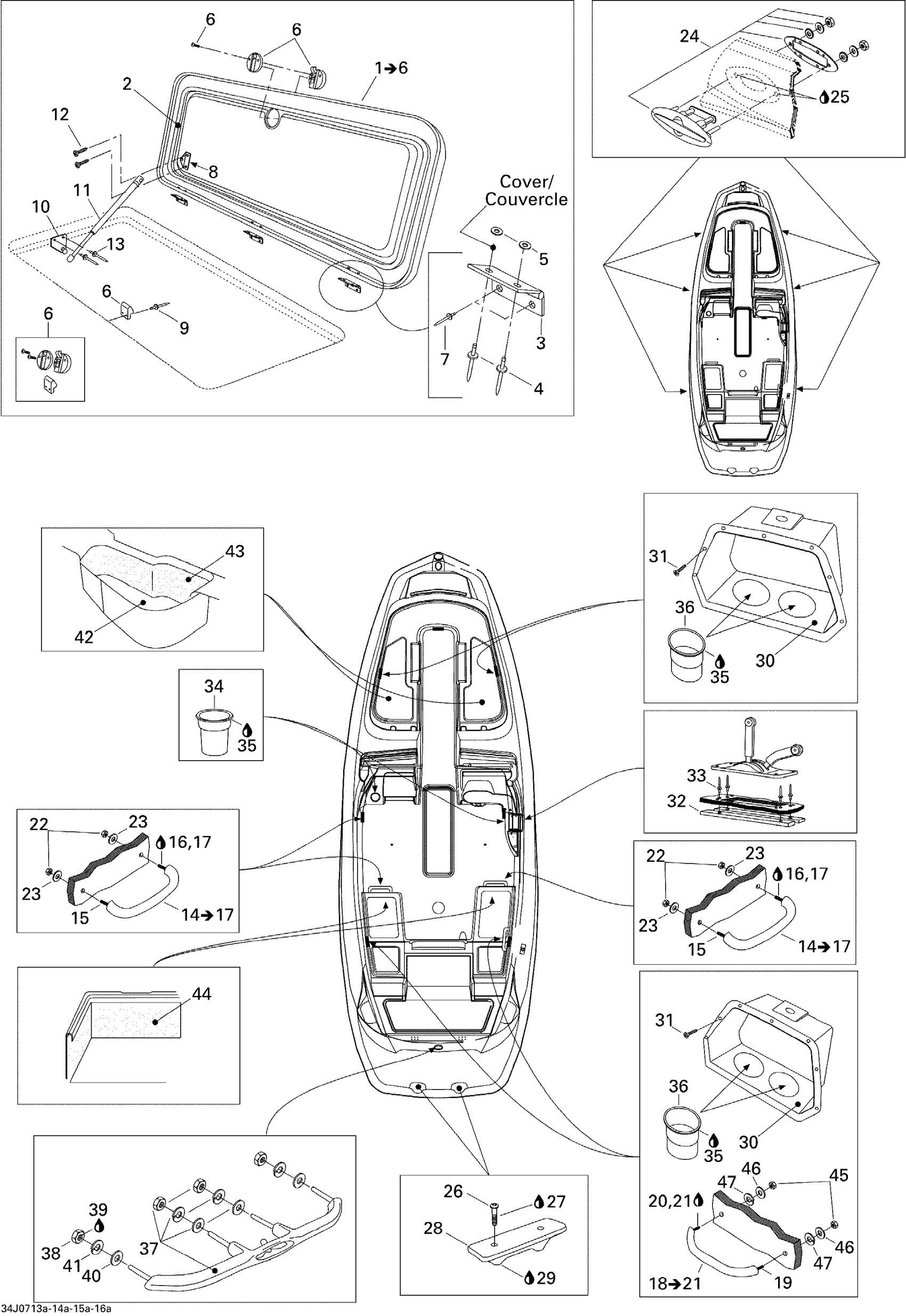

Sea-doo Challenger 230 WAKE 155NA, 2007 09- Body And Accessories 1 Diagram
#
1
Center Cover | Includes 1 To 6
204072808
Unavailable
2
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
3
HINGE - Call your local BRP dealership
204072601
Unavailable
4
Pop Rivet 3/16"
293150088
$0.99
5
Flat Washer M5, Stainless
234051600
$0.77
6
Stainless Latch
204072838
$144.99
7
Pop Rivet 3/16"
293150005
$0.52
8
Shock Bracket
204073074
$27.99
9
Pop Rivet 3/16"
293150039
$1.49
10
RH SHOCK BRACKET - Call your local BRP dealership
204072219
Unavailable
11
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
12
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
13
Pop Rivet 3/16"
293150043
$2.09
14
GRAB HANDLE ASS'Y - Call your local BRP dealership
204073791
Unavailable
15
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
16
Loctite 271, 10 ml
293800005
$26.99
17
Was 293800041 Loctite Primer 7649
219704458
$39.99
18
GRAB HANDLE ASS. - Call your local BRP dealership
291003405
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Loctite 271, 10 ml
293800005
$26.99
21
Was 293800041 Loctite Primer 7649
219704458
$39.99
22
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
23
Flat Washer 10 mm, Stainless
234002600
$2.22
24
Pull-Up Cleat
204072717
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
27
Loctite 243, 10 ml
293800060
$21.49
28
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
29
Silicone Sealant 51388, 300 ml
296000309
$36.99
30
Coaming Box Ass'y
204072924
Unavailable
31
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
32
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
33
Pop Rivet 3/16"
293150013
$1.37
34
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
35
Silicone Sealant 51388, 300 ml
296000309
$36.99
36
HOLDER CUP, BLACK - Call your local BRP dealership
204072216
Unavailable
37
Ski-Tow Handle
204072893
Unavailable
38
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
39
Loctite 243, 10 ml
293800060
$21.49
40
Flat Washer 10 mm, Stainless
234002600
$2.22
41
Lock Washer 8 mm, Stainless
234181601
$0.55
42
Bow Storage Liner
204072942
Unavailable
43
Bow Storage Carpet
204072943
Unavailable
44
STERN STORAGE CARPET - Call your local BRP dealership
204072944
Unavailable
45
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
46
Flat Washer 8 mm, Stainless
234082600
$2.43
47
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
