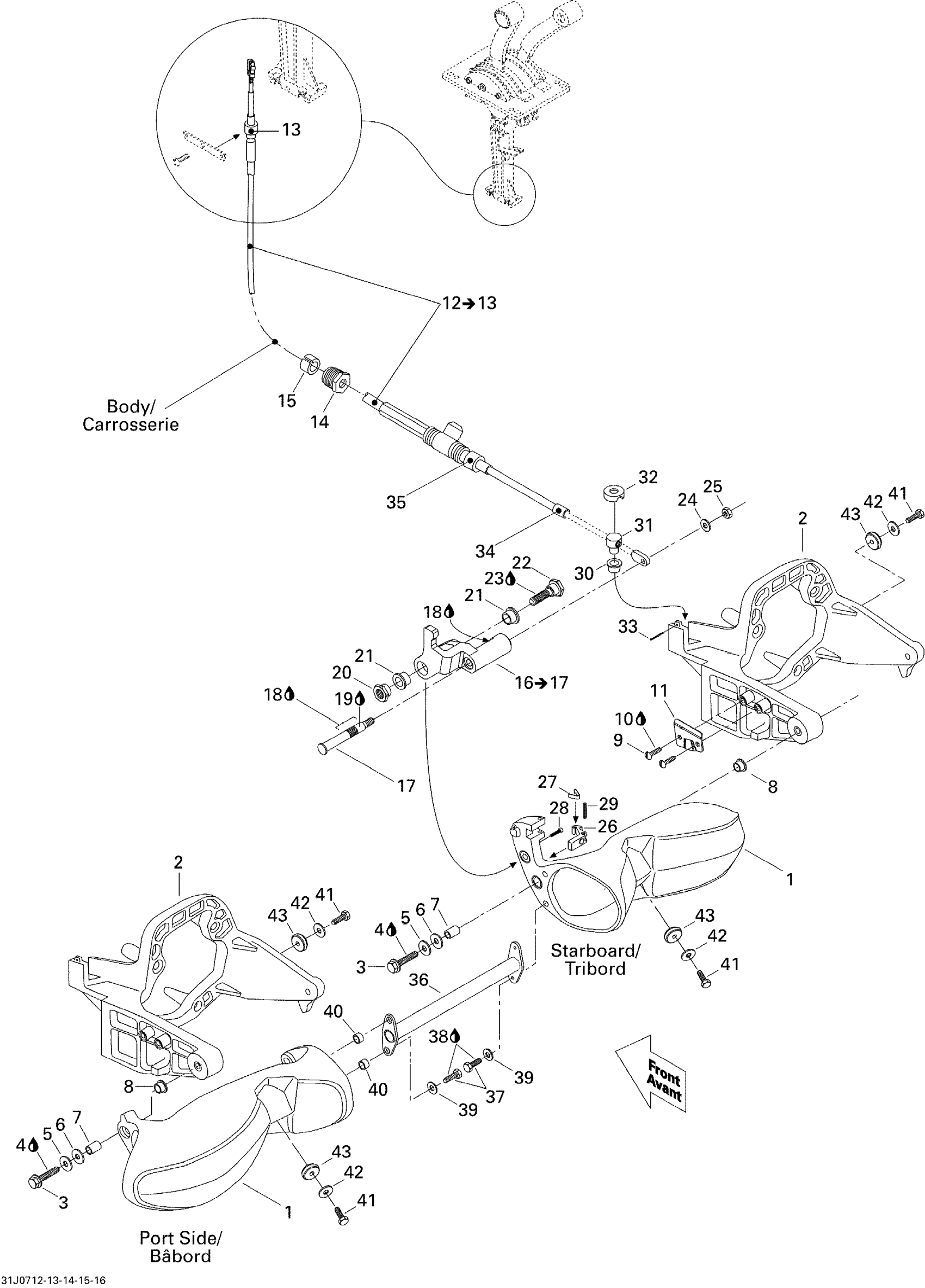

Sea-doo Challenger 230 WAKE 155NA, 2007 05- Reverse Diagram
#
1
Reverse Gate, Starboard
268000107
$359.99
1
NEEDS DESCRIPTION This part replaces 204170217.
423465080
$369.99
2
Reverse Gate Support
204170214
$189.99
3
Hex. Flange Screw 18 X 1.56
204100163
$9.09
4
Loctite 243, 10 ml
293800060
$21.49
5
Flat Washer 8 mm, Stainless
234082600
$2.43
6
WASHER, NYLON - Call your local BRP dealership
204100128
Unavailable
7
Sleeve
204170177
$33.99
8
Bushing
204130237
$12.11
9
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
10
Loctite 243, 10 ml
293800060
$21.49
11
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
12
Reverse Cable
268000109
$148.49
13
End Piece
277001583
$14.49
14
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
15
RUBBER GROMMET - Call your local BRP dealership
204130041
Unavailable
16
NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.
0460979
$224.99
17
PIN - Call your local BRP dealership
204130037
Unavailable
18
Was 293800041 Loctite Primer 7649
219704458
$39.99
19
Sealant Loctite 648
219703000
$45.99
20
SHOULDER NUT - Call your local BRP dealership
204100123
Unavailable
21
BUSHING - Call your local BRP dealership
204130036
Unavailable
22
SHOULDER SCREW - Call your local BRP dealership
204100124
Unavailable
23
Loctite 271, 10 ml
293800005
$26.99
24
Flat Washer 5 mm, Stainless
234052600
$0.77
25
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
26
HOOK - Call your local BRP dealership
204170220
Unavailable
27
Spring
271000431
$15.49
28
Socket Head Screw
204100127
$3.70
29
Pin
211400009
$1.68
30
Bushing
204130237
$12.11
31
THREADED END PIECE - Call your local BRP dealership
204130038
Unavailable
32
Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.
296000396
Unavailable
33
Cotter Pin
204130040
$2.85
34
Wiper Rod
277001582
$11.11
35
End Piece
277001583
$14.49
36
REVERSE ROD - Call your local BRP dealership
204170245
Unavailable
37
SCREW HEX. M4 X 20 - Call your local BRP dealership
207142060
Unavailable
38
Loctite 243, 10 ml
293800060
$21.49
39
Flat Washer 4 mm, Stainless
234042600
$1.15
40
SPACER BUSHING - Call your local BRP dealership
204170026
Unavailable
41
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
42
Stainless Flat Washer M6
234061600
$0.33
43
Anode Zinc
271001813
$18.99
