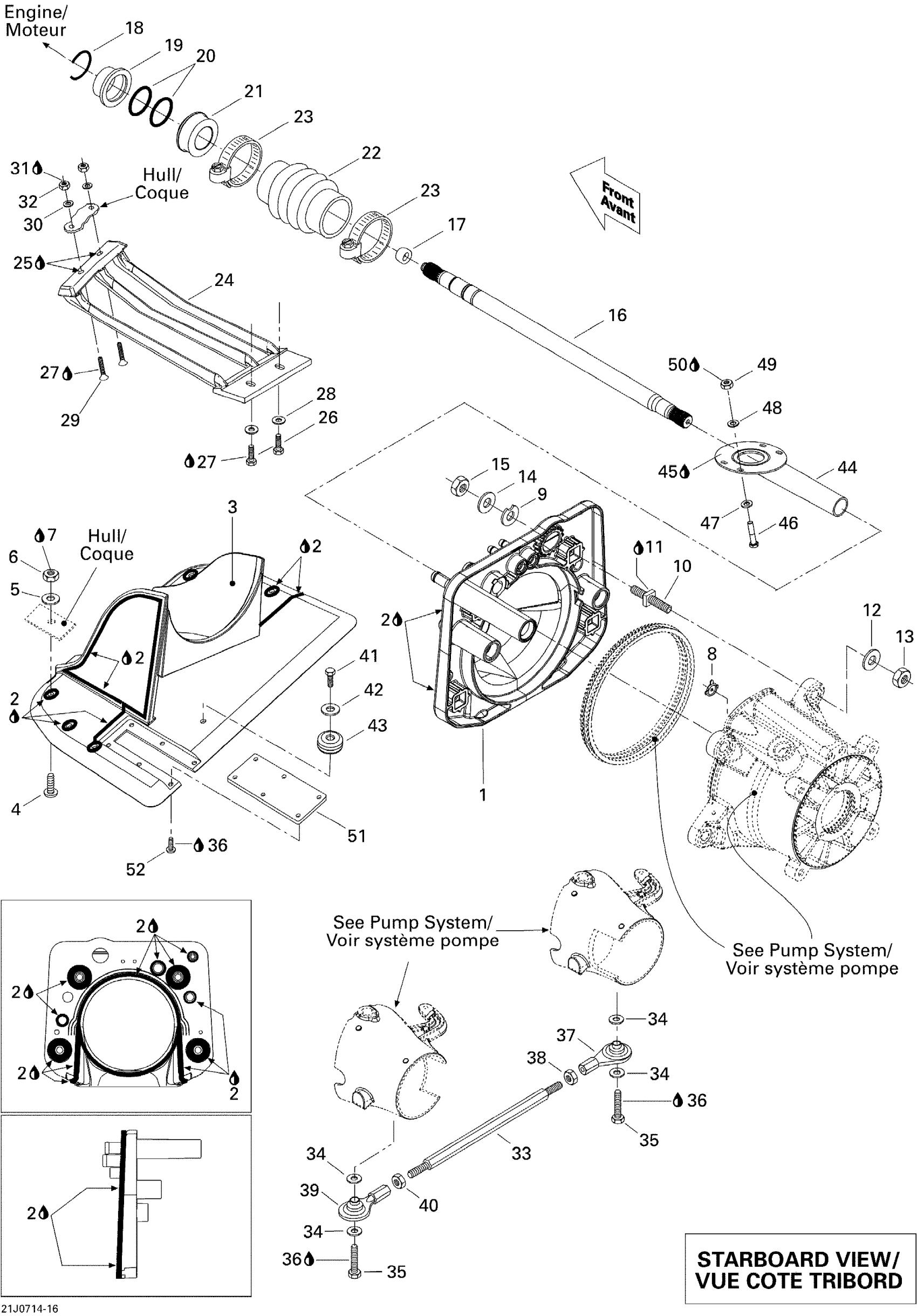

Sea-doo Challenger 230 WAKE 155NA, 2007 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120333

Unavailable

2

Instant Gasket

219701421

$50.02

3

PLATE_RIDE - Call your local BRP dealership

204120334

Unavailable

3

PLATE_RIDE - Call your local BRP dealership

204120335

Unavailable

4

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.64

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

Silicone Sealant 51388, 300 ml

296000309

$35.72

8

Reducer This part replaces 291001887.

291004649

$12.57

9

Shim 0.3 mm

272000053

$8.02

9

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

10

Square Stud

250300022

$15.57

11

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

12

Flat Washer

211200051

$1.34

13

Elastic Stop Nut M10, Brass

232501200

$2.16

14

Flat Washer 10 mm, Stainless

234002600

$1.85

15

Elastic Stop Nut M10, Brass

232501200

$2.16

16

Drive Shaft This part replaces 271001534.

271001724

$265.82

17

Drive Shaft Plug

272000173

$7.02

18

C-Clip

271001575

$4.54

19

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

20

O-Ring

293300044

$0.86

21

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

22

Bellows

272000183

$22.72

23

Norma Clamp

293650077

$6.11

24

GRATE-STBD,PAINTED This part replaces 204120337.

0462118

Unavailable

24

FIXED GRATE - Call your local BRP dealership

204120336

Unavailable

25

Instant Gasket

219701421

$50.02

26

Hex. Screw M6 X 16

207161660

$1.22

27

Loctite 271, 10 ml

293800005

$20.77

28

Stainless Flat Washer M6

234061600

$0.25

29

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.88

30

Flat Washer M6, Stainless

234062600

$0.64

31

Silicone Sealant 51388, 300 ml

296000309

$35.72

32

Hex. Elastic Stop Nut M6

232561600

$0.92

33

LINK ROD - Call your local BRP dealership

204120255

Unavailable

34

Stainless Flat Washer M6

234061600

$0.25

35

Hex. Screw M6 X 25

207162560

$1.22

36

Loctite 243, 10 ml

293800060

$20.77

37

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

38

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

39

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

40

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

41

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

42

Stainless Flat Washer M6

234061600

$0.25

43

Anode Zinc

271001813

$13.62

44

SHAFT GUARD - Call your local BRP dealership

204120328

Unavailable

45

Instant Gasket

219701421

$50.02

46

Phillips Screw M5 X 35

208653560

$1.85

47

Flat Washer M5, Stainless

234051600

$0.64

48

Flat Washer 5 mm, Stainless

234052600

$0.64

49

Hex. Elastic Nut M5 | X

232551600

$0.91

50

Silicone Sealant 51388, 300 ml

296000309

$35.72

51

PLATE FILLER SENSOR - Call your local BRP dealership

204120341

Unavailable

52

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable
