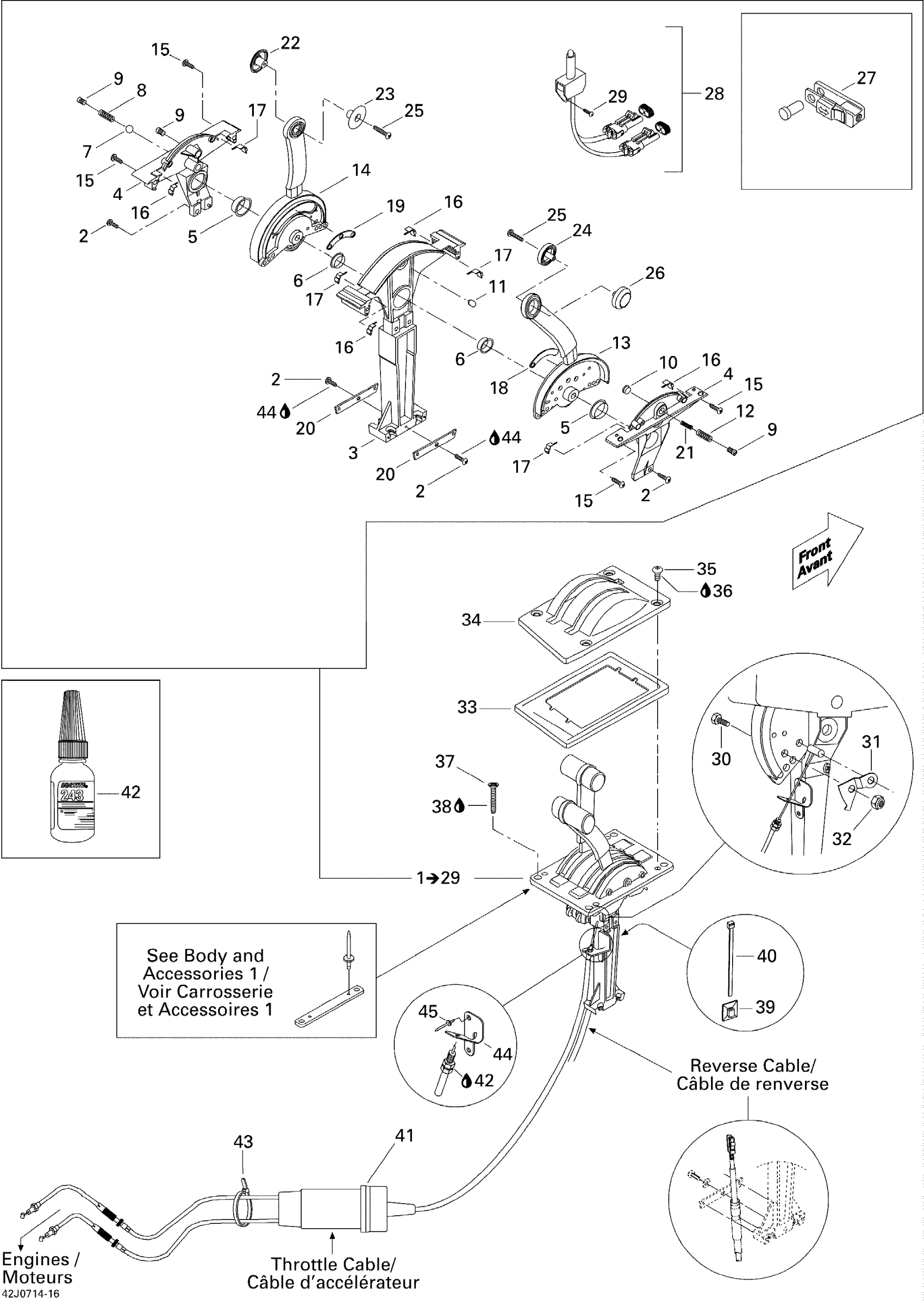

Sea-doo Challenger 230 WAKE 155NA, 2007 05- Control Handle Diagram

#

Description
Price

1

Ultraflex Control Ass'y | Includes 1 to 29

204390494

Unavailable

2

SCREW M5 X 16 - Call your local BRP dealership

204130092

Unavailable

3

LH Frame

204390224

Unavailable

4

Half-Case

277000703

Unavailable

5

BUSHING - Call your local BRP dealership

277000397

Unavailable

6

BUSHING - Call your local BRP dealership

277000398

Unavailable

7

BALL - Call your local BRP dealership

277000399

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

10

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

11

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

12

SPRING - Call your local BRP dealership

277000401

Unavailable

13

THROTTLE LEVER - Call your local BRP dealership

204390499

Unavailable

14

Shift Lever

204390501

Unavailable

15

SCREW M5 X 20 - Call your local BRP dealership

204100016

Unavailable

16

RH Water Seal

277000423

Unavailable

17

LH Water Seal

277000424

Unavailable

18

SPACER - Call your local BRP dealership

277000707

Unavailable

19

Shift Lever Spacer

277000408

Unavailable

20

RETAINING PLATE - Call your local BRP dealership

204390227

Unavailable

21

Spring

277000656

Unavailable

22

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

23

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

24

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

25

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

26

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

27

CLEVIS L26 - Call your local BRP dealership | Not Shown

204390226

Unavailable

28

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

204390464

Unavailable

29

SCREW M3 X 6 - Call your local BRP dealership

208630660

Unavailable

30

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

31

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

32

Hex. Elastic Nut M5 | X

232551600

$1.15

33

Control Handle Base Plate

204390482

Unavailable

34

Control Cover

204390483

Unavailable

35

Phillips Screw M4 X 10

208641060

$1.01

36

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

37

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

38

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

39

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

40

Tie Wrap 94 mm | 4X4

293750001

$1.03

41

THROTTLE CABLE - Call your local BRP dealership

204390469

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

Tie-Rap 180 mm

414115200

$0.11

44

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

45

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable
