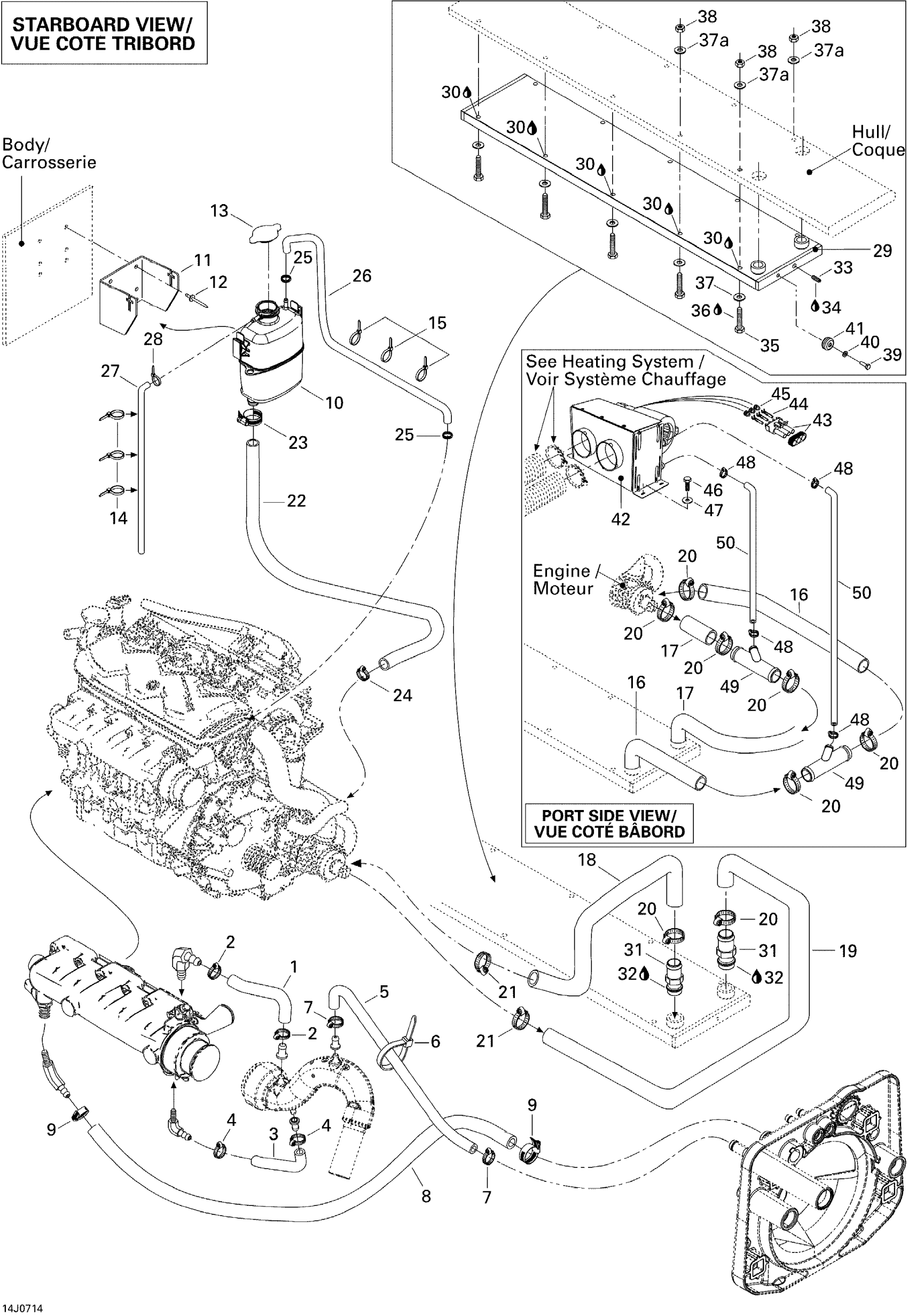

Sea-doo Challenger 230 WAKE 155NA, 2007 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000155

Unavailable

2

Tridon Gear Clamp

293650172

$3.09

3

FORMED HOSE - Call your local BRP dealership

276000156

Unavailable

4

Tridon Gear Clamp

293650172

$3.09

5

Was 276000001 Hose 12.5 mm

219704394

$51.99

6

Tie Wrap 368 mm

293750008

$1.04

7

Tridon Gear Clamp

293650172

$3.09

8

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

9

Tridon Gear Clamp

293650051

$4.19

10

Coolant Tank

276000086

$109.99

11

Coolant Tank Bracket

204300200

Unavailable

12

Pop Rivet 3/16"

204000081

$1.49

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

Tie Wrap 142 mm

293750002

$1.25

15

Tie Wrap 142 mm

293750002

$1.25

16

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

17

Ride Plate Hose This part replaces 204300172.

423465058

$43.99

18

Formed Hose | Starboard

204300173

Unavailable

19

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

20

Tridon Gear Clamp

293650045

$5.69

21

Tridon Gear Clamp

293650045

$5.69

22

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

23

Tridon Gear Clamp

293650051

$4.19

24

Tridon Gear Clamp

293650019

$5.82

25

Oetiker Gear Clamp

293650025

$3.09

26

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Heat Exchanger

204300183

Unavailable

30

Instant Gasket

219701421

$51.99

31

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

32

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

33

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

34

Was 293800013 Loctite 56765

219704454

$65.99

35

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

36

Loctite 243, 10 ml

293800060

$21.49

37

Flat Washer 10 mm, Stainless

234000600

$1.46

37a

Flat Washer 10 mm, Stainless

234002600

$2.22

38

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

39

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

40

Stainless Flat Washer M6

234061600

$0.33

41

Anode Zinc

271001813

$18.99

42

HEATER UNIT - Call your local BRP dealership | WAKE

204300198

Unavailable

43

Male Housing, 3 Circuits

278000273

$9.59

44

Female Terminal

278000223

$3.19

45

Wire Seal

278000218

$4.39

46

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

47

Flat Washer 5 mm, Stainless

234052600

$0.77

48

Tridon Gear Clamp

293650045

$5.69

49

Y-Fitting | WAKE

204130174

Unavailable

50

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable
