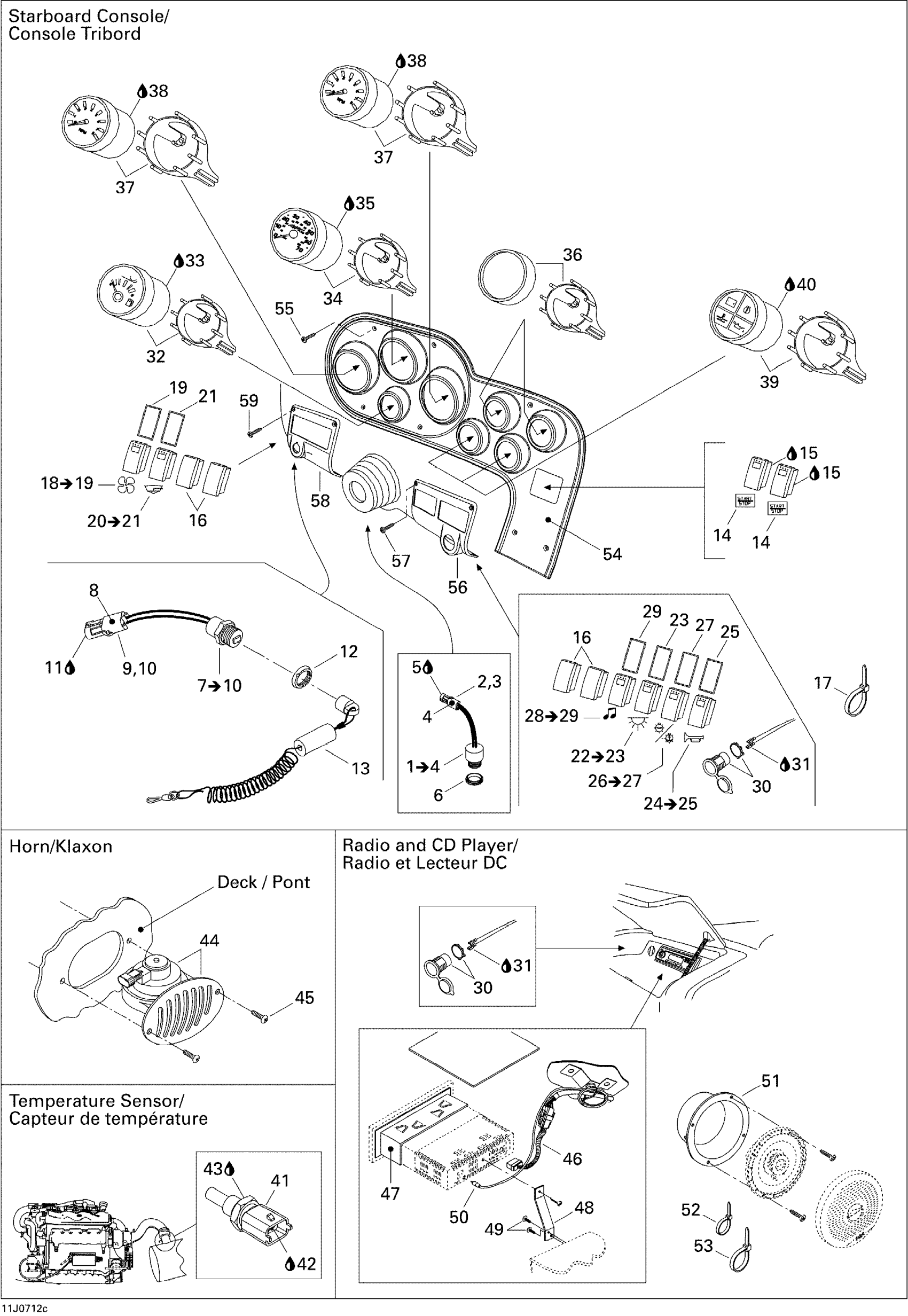

Sea-doo Challenger 230 155NA, 2007 Electrical Accessories 3 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$92.99

2

Male Terminal | XT Models

278000222

$3.19

3

Wire Seal

278000218

$4.39

4

Female Housing, 2 Circuits

278000217

$9.59

5

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

6

Buzzer Nut

278000707

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

Male Housing, 3 Circuits

278000273

$9.59

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

12

Safety Nut (DESS Switch)

278002963

$3.28

13

Safety Lanyard

204471206

$56.99

14

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

17

Tie Wrap 142 mm

293750002

$1.25

18

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

19

Gasket

204470132

Unavailable

20

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

21

Gasket

204470132

Unavailable

22

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

23

Gasket

204470132

Unavailable

24

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

25

Gasket

204470132

Unavailable

26

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

27

Gasket

204470132

Unavailable

28

STEREO SWITCH - Call your local BRP dealership | Includes 28 to 29

204471116

Unavailable

29

Gasket

204470132

Unavailable

30

DC Outlet

710001248

$37.99

31

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

32

Fuel Gauge

204471152

Unavailable

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

SPEEDOMETER GAUGE - Call your local BRP dealership

204471153

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

GAUGE CAP - Call your local BRP dealership | STD

204470987

Unavailable

37

TACHOMETER GAUGE - Call your local BRP dealership

204471155

Unavailable

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

39

Engine Warning Gauge

204471156

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Temperature Sensor

278002895

$39.99

42

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

44

Horn, Stainless

204471160

Unavailable

45

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

46

Stereo Adaptor Harness

204470930

Unavailable

47

STEREO TRIM RING - Call your local BRP dealership

204471010

Unavailable

48

RADIO SUPPORT - Call your local BRP dealership

204471194

Unavailable

49

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

50

Antenna

204470931

Unavailable

51

SPEAKER COVER ASS'Y - Call your local BRP dealership

204470982

Unavailable

52

Tie Wrap 94 mm | 4X4

293750001

$1.03

53

Tie Wrap 142 mm

293750002

$1.25

54

Fascia

204471172

Unavailable

55

Socket Head Screw M4 X 25

205342569

Unavailable

56

RH Panel Switch

204471173

Unavailable

57

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

58

LH PANEL SWITCH - Call your local BRP dealership

204471174

Unavailable

59

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable
