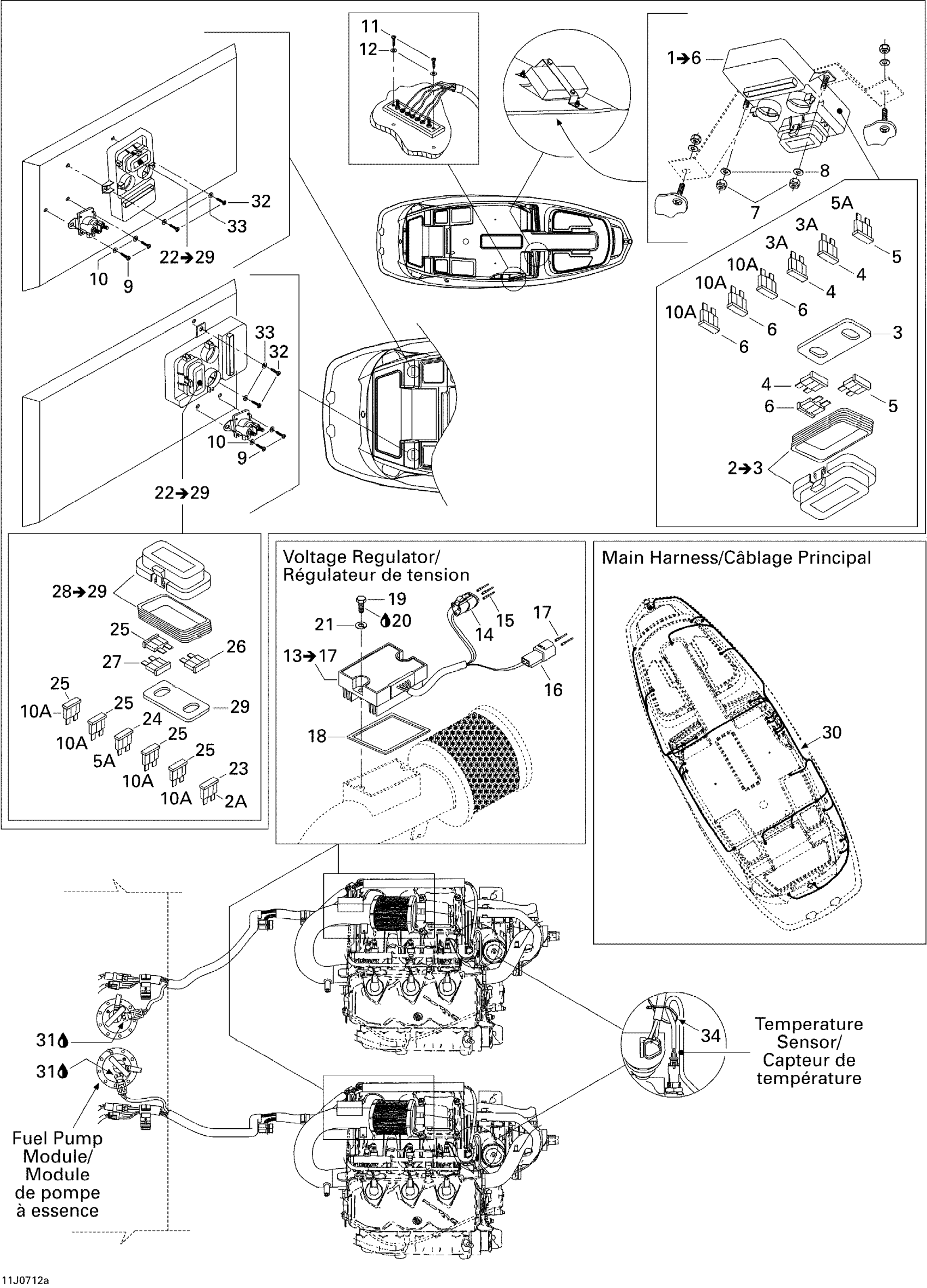

Sea-doo Challenger 230 155NA, 2007 Electrical Accessories 1 Diagram

#

Description
Price

1

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.12

6

Fuse, 10 Amperes | North America

278001197

$1.79

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Flat Washer M6, Stainless

234062600

$0.64

9

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

10

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

11

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

12

Flat Washer 4 mm, Stainless

234041600

$0.91

13

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

14

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

15

Female Terminal

278000632

$1.69

16

Male Housing, 2 Circuits

409206900

$8.72

17

Female Terminal

515175567

$5.85

18

SEAL - Call your local BRP dealership

293250123

Unavailable

19

TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership

204100134

Unavailable

20

Loctite 271, 10 ml

293800005

$20.77

21

Lock Washer 1/4”

211200025

$1.04

22

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

23

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

24

Fuse, 5 Amperes | CE

278000344

$3.12

25

Fuse, 10 Amperes | North America

278001197

$1.79

26

Fuse, 20 Amperes

409003900

$3.12

27

Fuse, 30 Amperes

410917200

$3.12

28

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

29

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

30

Main Harness (Accessory Harness)

204471098

Unavailable

31

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

32

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

33

Stainless Flat Washer M6

234061600

$0.25

34

Tie Wrap 142 mm

293750002

$0.88
