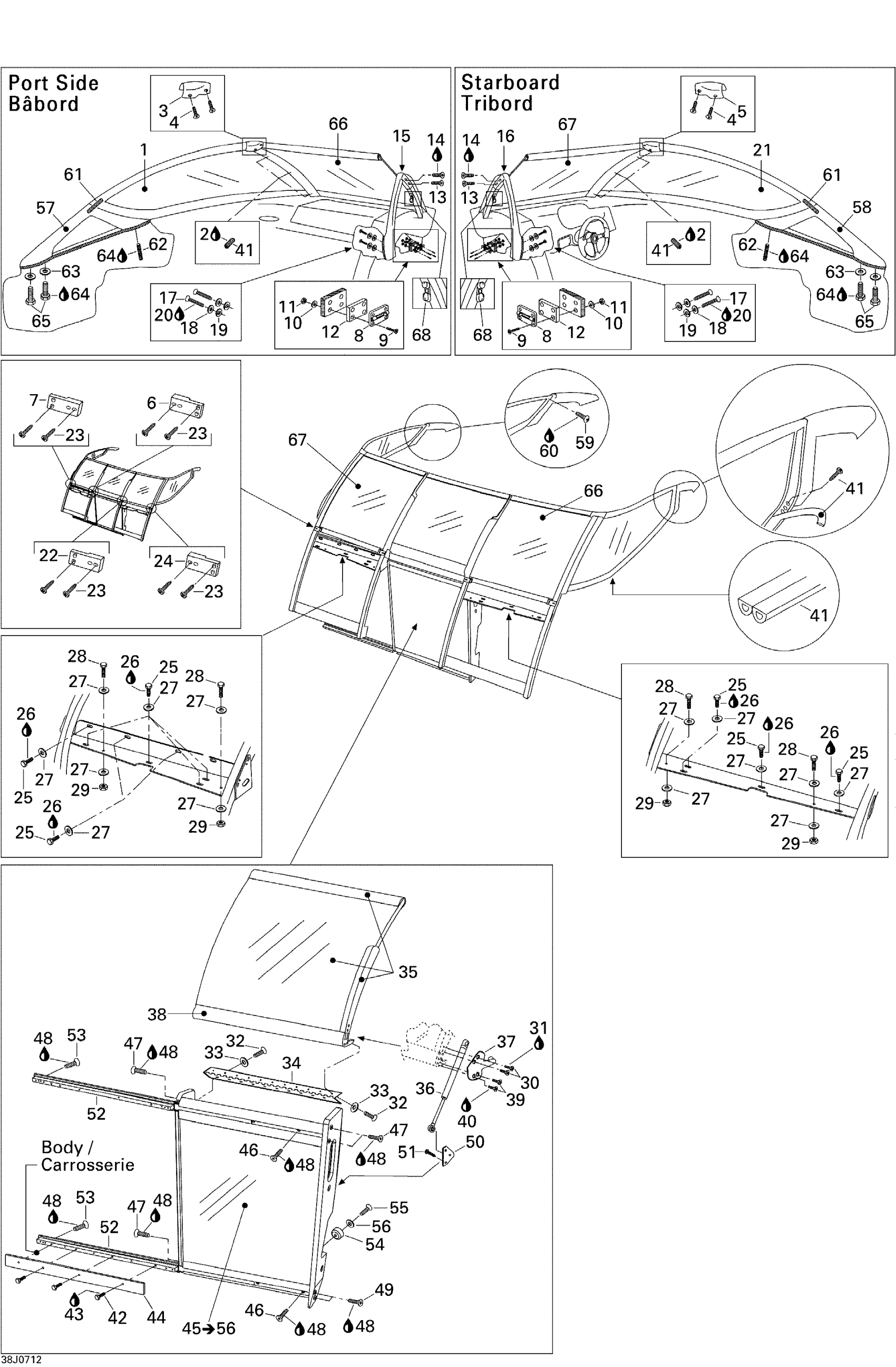

Sea-doo Challenger 230 155NA, 2007 09- Windshield Diagram
#
1
WINDSHIELD WING ASS'Y, PORT SIDE - Call your local BRP dealership
204072506
Unavailable
2
Loctite 243, 10 ml
293800060
$21.49
3
Corner Cap, Port Side
204072925
Unavailable
4
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
5
Corner Cap, Starboard
204072926
Unavailable
6
Clamp
204130165
Unavailable
7
Clamp
204072933
Unavailable
8
DOOR LATCH - Call your local BRP dealership
204100204
Unavailable
9
Phillips Screw M4 X 30
208443060
$1.48
10
Flat Washer 4 mm, Stainless
234041600
$1.15
11
Elastic Stop Nut M4
232541600
$1.15
12
Latch Spacer 3/8"
204072976
Unavailable
12
LATCH SPACER 1/8 - Call your local BRP dealership
204072977
Unavailable
13
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
14
Loctite 243, 10 ml
293800060
$21.49
15
Stanchion, Port Side
204072534
Unavailable
16
Stanchion, Starboard
204072741
Unavailable
17
Hex. Screw M8 X 18
207181860
$1.48
18
Flat Washer 8 mm, Stainless
234082600
$2.43
19
Lock Washer 8 mm, Stainless
234181601
$0.55
20
Loctite 243, 10 ml
293800060
$21.49
21
Windshield Wing Ass'y, Starboard
204072517
Unavailable
22
Clamp
204130165
Unavailable
23
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
24
Clamp
204072934
Unavailable
25
Hex. Screw M6 X 16
207161660
$1.59
26
Loctite 243, 10 ml
293800060
$21.49
27
Flat Washer M6, Stainless
234062600
$0.77
28
Hex. Screw M6 X 25
207162560
$1.47
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
Tapping Phillips Screw #10X1/2"
204100210
Unavailable
31
Loctite 243, 10 ml
293800060
$21.49
32
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
33
Flat Washer 4 mm, Stainless
234041600
$1.15
34
Center Door Hinge
204072540
Unavailable
35
CENTER DOOR WINDOW - Call your local BRP dealership
204072727
Unavailable
36
GAS SHOCK - Call your local BRP dealership
204072899
Unavailable
37
Shock Support, Starboard
204072901
Unavailable
37
Shock Support, Port Side
204072900
Unavailable
38
Hinge Extrusion
204072830
Unavailable
39
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
40
Loctite 243, 10 ml
293800060
$21.49
41
WINDSHIELD INSTALLATION HARDWARE KIT - Call your local BRP dealership
204072544
Unavailable
42
Hex. Screw M6 X 30
207163060
$1.48
43
Loctite 243, 10 ml
293800060
$21.49
44
Walk-Thru Door Support
204072896
Unavailable
45
Walk-Thru Door Ass'y | Includes 45 to 56
204072728
Unavailable
46
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
47
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
48
Loctite 243, 10 ml
293800060
$21.49
49
Phillips Screw M6 X 25
208562560
$2.32
50
Shock Bracket
204071673
Unavailable
51
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
52
Drawer Slides, Long
204070612
Unavailable
53
Phillips Screw M4 X 12
208641260
$1.03
54
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
55
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership
204100147
Unavailable
56
Flat Washer M3, Stainless
234032600
$0.55
57
Windshield Wing Support, Port Side
204072833
Unavailable
58
Windshield Wing Support, Starboard
204072834
Unavailable
59
SCREW M5 X 10 - Call your local BRP dealership
208651060
Unavailable
60
Loctite 243, 10 ml
293800060
$21.49
61
STAINLESS STEEL DOWEL PIN 1/4 - Call your local BRP dealership
204130183
Unavailable
62
Threaded Stud M8 X 25
204130184
Unavailable
63
Flat Washer 8 mm, Stainless
234082600
$2.43
64
Loctite 243, 10 ml
293800060
$21.49
65
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
66
WINDSHIELD GATE ASS'Y, PORT SIDE - Call your local BRP dealership
204072991
Unavailable
67
WINDSHIELD GATE ASS'Y, STARBOARD - Call your local BRP dealership
204072995
Unavailable
68
Door Latch
204072875
Unavailable
