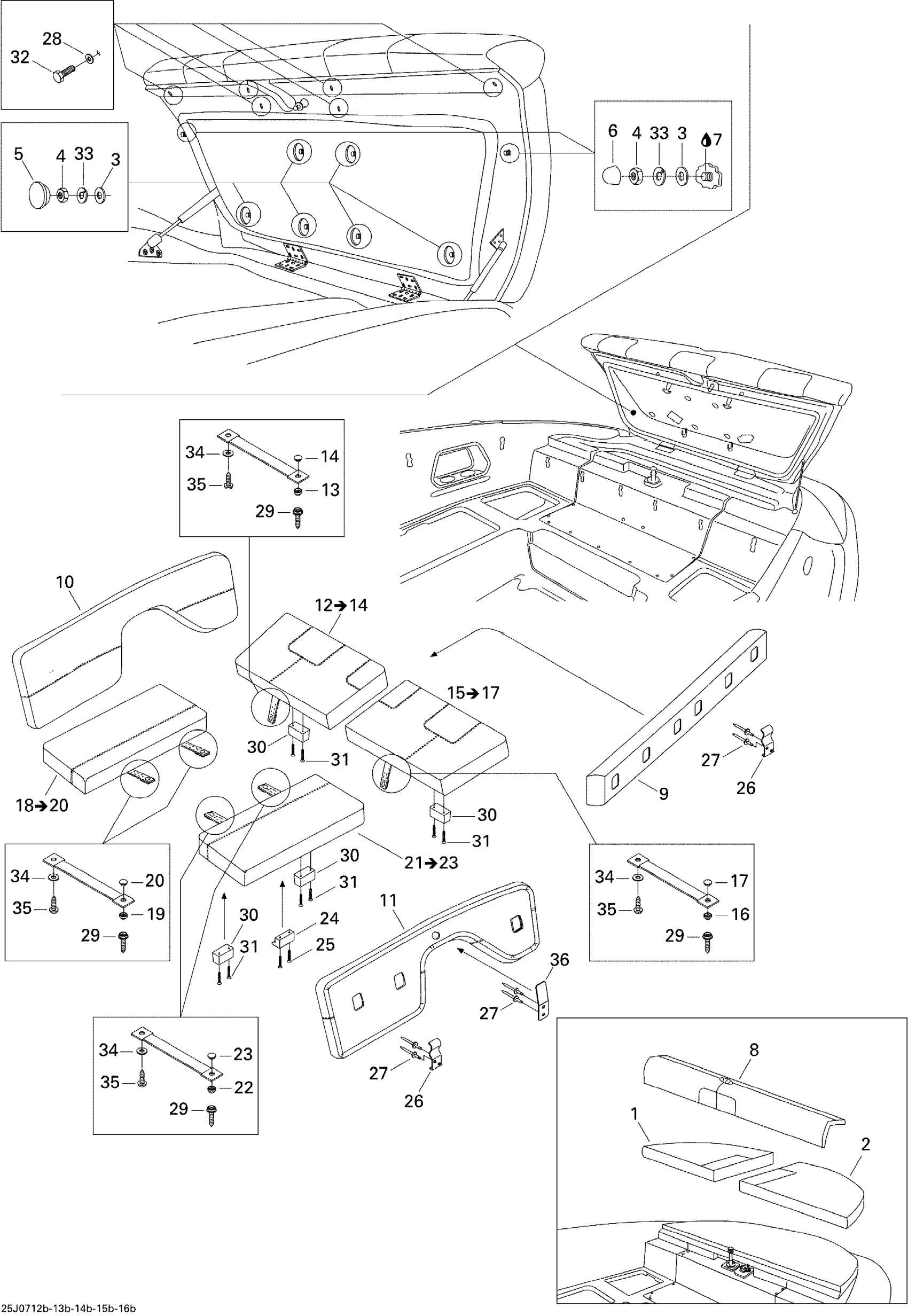

Sea-doo Challenger 230 155NA, 2007 09- Seat, Rear View Diagram

#

Description
Price

1

Sundeck Cushion, Starboard

204613802

Unavailable

2

Sundeck Cushion, Port Side

204613790

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.43

4

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

5

BLACK CAP 1 1/2 - Call your local BRP dealership

204130190

Unavailable

6

Plastic Cap, White

204130008

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Engine Cover Backrest

204613806

Unavailable

9

REAR BACKREST - Call your local BRP dealership | Navy Blue

204613804

Unavailable

10

Rear Side Backrest, Starboard

204613808

Unavailable

11

Rear Side Backrest, Port Side

204613807

Unavailable

12

Rear Cushion Ass'y, Starboard | Includes 12 to 14

204613810

Unavailable

13

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

14

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

15

Rear Cushion Ass'y, Port Side | Includes 15 to 17

204613809

Unavailable

16

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

17

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

18

Rear Side Cushion, Starboard | Includes 18 to 20

204613812

Unavailable

19

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

20

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

21

Rear Side Cushion, Port Side | Includes 21 to 23

204613811

Unavailable

22

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

23

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

24

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

25

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

26

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

27

Pop Rivet 3/16"

293150043

$2.09

28

Stainless Flat Washer M6

234061600

$0.33

29

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

30

LATCH - Call your local BRP dealership

204611805

Unavailable

31

SCREW #8 X 1-1/4? - Call your local BRP dealership

204100081

Unavailable

32

Hex. Screw M6 X 35

207163560

$1.49

33

Lock Washer 1/4”

211200025

$1.29

34

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

35

Tapping Screw #8 X 3/4"

294100054

Unavailable

36

RETAINING CLIP - Call your local BRP dealership

204611531

Unavailable
