- Challenger 230 155NA, 2007
09- Lower Hull And Ladder

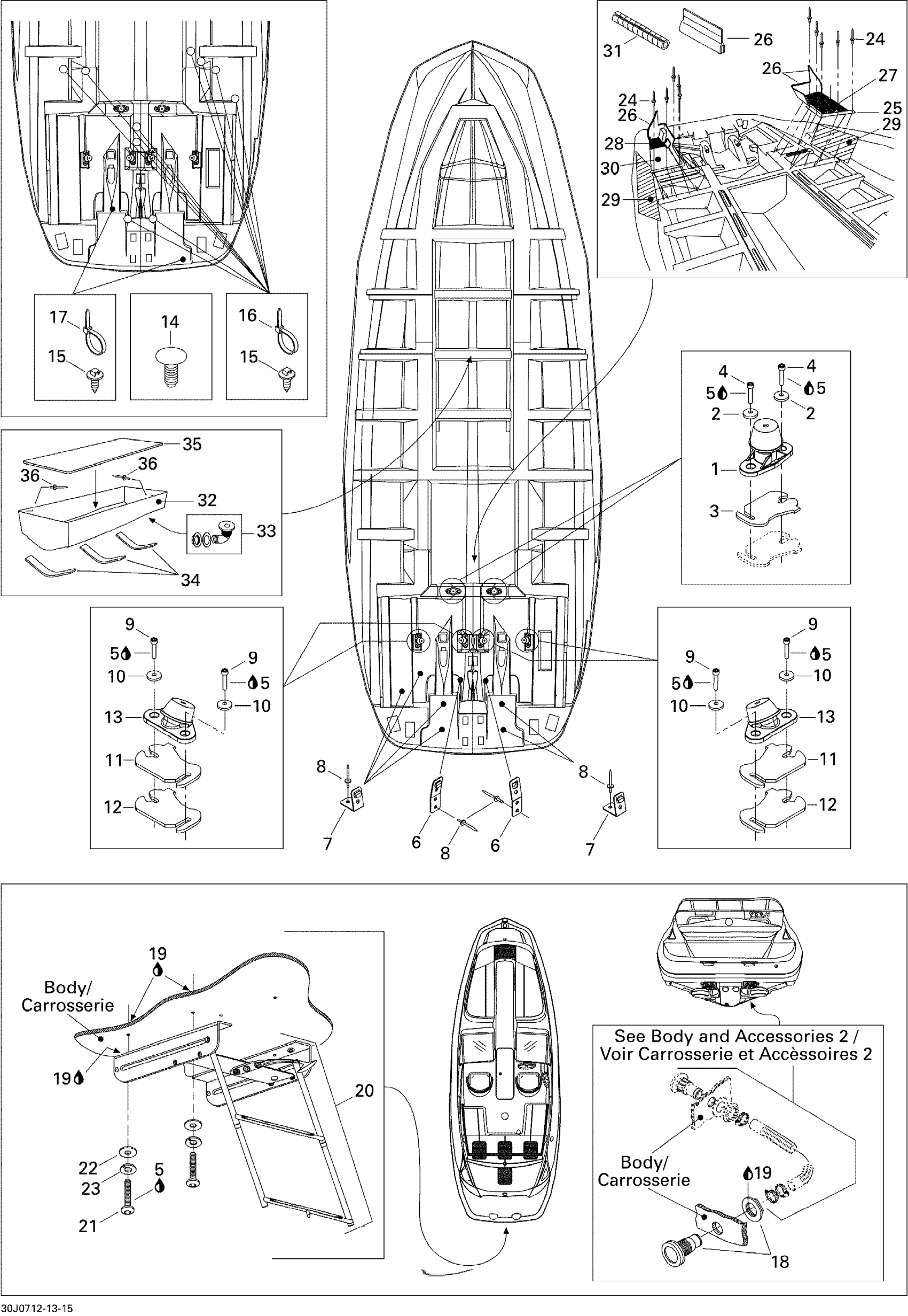

Sea-doo Challenger 230 155NA, 2007 09- Lower Hull And Ladder Diagram
#
Description
Price
1
Engine Support Ass'y
270001096
$97.99
2
Cone Washer
250200018
$5.61
3
Shim 0.3 mm - Call your local BRP dealership
204250048
Unavailable
4
Socket Head Screw M8 X 45
205084560
$3.59
5
Loctite 243, 10 ml
293800060
$21.49
6
Strap Clip
293850030
$11.12
7
Strap Clip 90°
204060017
Unavailable
8
Avdel Rivet 3/16"
293150037
$0.56
9
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
10
Cone Washer
250200018
$5.61
11
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
12
Shim 1.3 mm
270000762
$12.99
13
Engine Support Ass'y
270001081
$109.99
14
Black, Dart
293730006
$0.99
15
Mount Dart
293730040
$1.04
16
Tie-Rap 180 mm
414115200
$0.11
17
Tie Wrap 368 mm
293750008
$1.04
18
SCUPPER VALVE - Call your local BRP dealership
204061102
Unavailable
19
Silicone Sealant 51388, 300 ml
296000309
$36.99
20
TWO STEP LADDER - Call your local BRP dealership | Includes 35 to 37
204061193
Unavailable
21
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
22
Flat Washer 10 mm, Stainless
234001600
$1.15
23
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
26
TRIM LOCK, METER - Call your local BRP dealership
204130079
Unavailable
27
Rear Storage Liner, Port Side
204061139
Unavailable
28
Rear Storage Liner, Starboard
204061148
Unavailable
29
STERN STORAGE CARPET - Call your local BRP dealership
204061140
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
DRAIN FITTING 90 - Call your local BRP dealership
204071166
Unavailable
34
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
35
Ski Locker Liner Carpet
204061138
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
