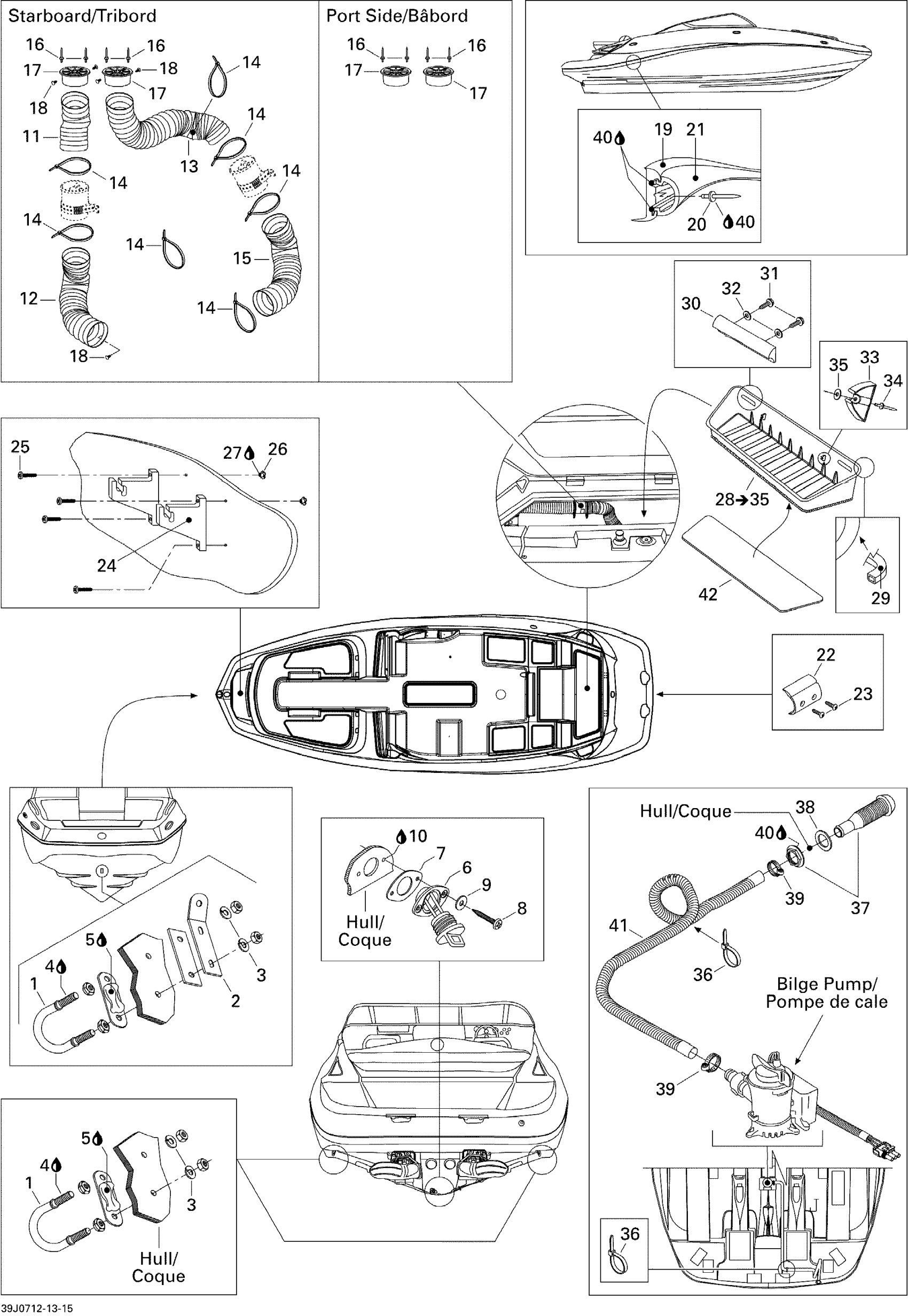

Sea-doo Challenger 230 155NA, 2007 09- Hull Diagram
#
1
BOW EYE KIT 1/2? - Call your local BRP dealership
204050336
Unavailable
2
BRACKET-TIE DOWN - Call your local BRP dealership
204050722
Unavailable
3
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership
204100048
Unavailable
4
Loctite 271, 10 ml
293800005
$26.99
5
Silicone Sealant 51388, 300 ml
296000309
$36.99
6
Drain Plug
292000187
$14.49
7
GASKET - Call your local BRP dealership
293250030
Unavailable
8
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
9
Flat Washer 4 mm, Stainless
234041600
$1.15
10
Silicone Sealant 51388, 300 ml
296000309
$36.99
11
Was 204050122 Vent Hose 4"
219704358
$25.99
12
Was 204050122 Vent Hose 4"
219704358
$25.99
13
Was 204050122 Vent Hose 4"
219704358
$25.99
14
Tie Wrap 368 mm
293750008
$1.04
15
Was 204050122 Vent Hose 4"
219704358
$25.99
16
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
17
Vent Grille 4 - Call your local BRP dealership
204050637
Unavailable
18
Black, Dart
293730006
$0.99
19
BUMPER, BLACK - Call your local BRP dealership
204050713
Unavailable
20
Pop Rivet 3/16"
293150013
$1.37
21
BUMPER TRIM, BLACK - Call your local BRP dealership
204050714
Unavailable
22
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
23
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
24
ANCHOR BRACKET - Call your local BRP dealership
204050723
Unavailable
25
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership
204100201
Unavailable
26
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
26
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
27
Loctite 243, 10 ml
293800060
$21.49
28
Accessories Cover Ass'y | Includes 34 to 41
204050729
Unavailable
29
Seal Tray 1000Mm Long
219704368
$13.99
30
HANDLE, WHITE - Call your local BRP dealership
291000608
Unavailable
31
Hex. Flange Screw K40 X 16
241141660
$1.48
32
Flat Washer 4 mm, Stainless
234042600
$1.15
33
Pole Support
291000642
Unavailable
34
Pop Rivet 3/16"
293150005
$0.52
35
Flat Washer M5, Stainless
234051600
$0.77
36
Tie-Rap 180 mm
414115200
$0.11
37
Fitting
293710162
$13.49
38
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
39
Tridon Clamp
293650016
$10.99
40
Silicone Sealant 51388, 300 ml
296000309
$36.99
41
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
42
PANEL FOAM - Call your local BRP dealership
204050709
Unavailable
