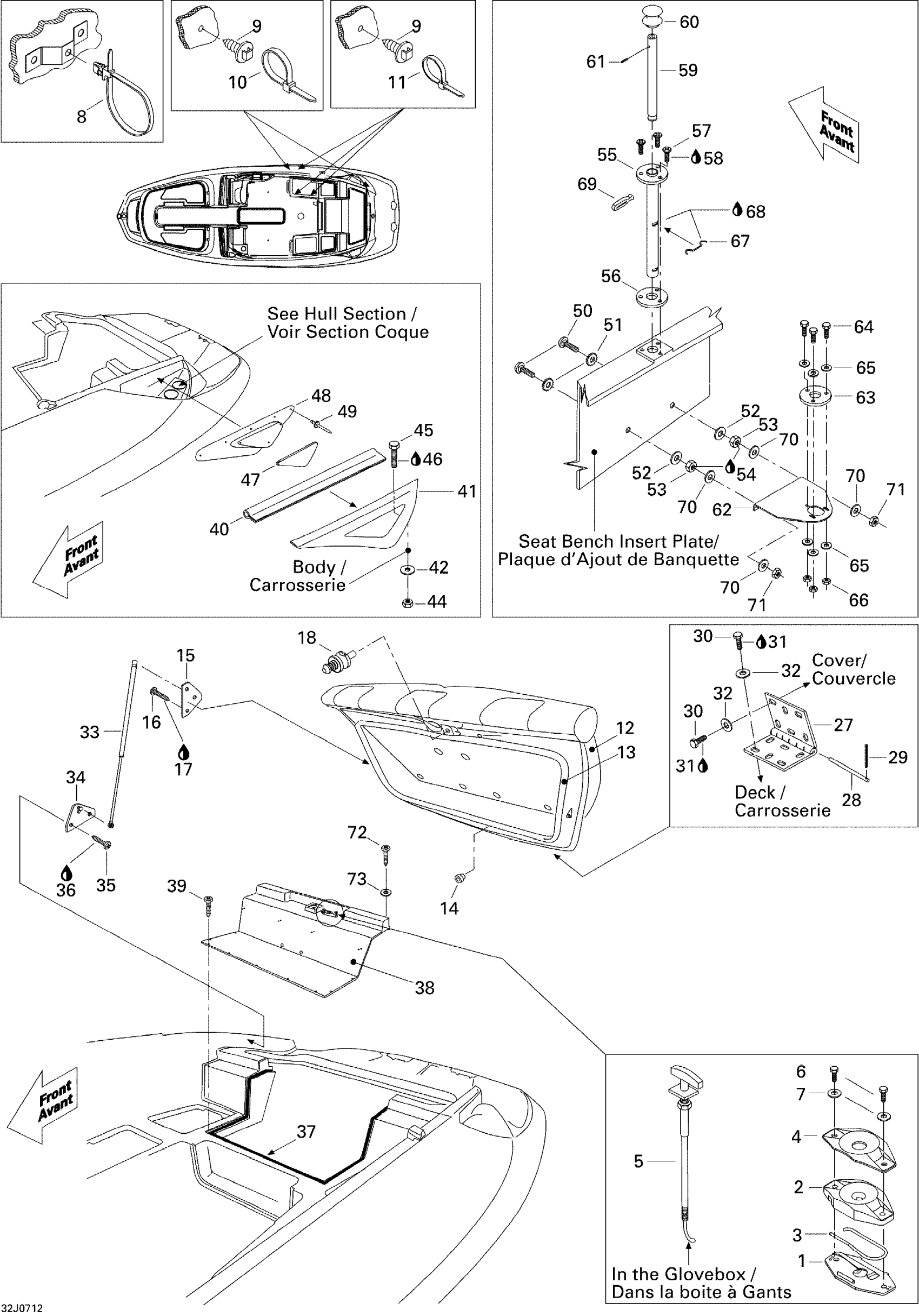

Sea-doo Challenger 230 155NA, 2007 Engine Compartment And Accessories Diagram

#

Description
Price

1

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

2

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

5

LATCH CABLE - Call your local BRP dealership

204072793

Unavailable

6

Hex. Screw M6 X 35

207163560

$1.17

7

Stainless Flat Washer M6

234061600

$0.25

8

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

9

Mount Dart

293730040

$0.86

10

Tie Wrap 368 mm

293750008

$0.85

11

Tie-Rap 180 mm

414115200

$0.09

12

Engine Cover

204072984

Unavailable

13

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

14

GROMMET - Call your local BRP dealership

293720017

Unavailable

15

Shock Bracket

204071673

Unavailable

16

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

17

Loctite 243, 10 ml

293800060

$20.77

18

Latch Stud

204130146

$136.54

27

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

28

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

29

Cotter Pin M2.5 X 12

204070205

Unavailable

30

Hex. Screw M6 X 25

207162560

$1.22

31

Loctite 243, 10 ml

293800060

$20.77

32

Stainless Flat Washer M6

234061600

$0.25

33

GAS SHOCK - Call your local BRP dealership

204072798

Unavailable

34

Shock Bracket

204071673

Unavailable

35

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

36

Loctite 243, 10 ml

293800060

$20.77

37

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

38

Seat Bench Insert Plate

204072685

Unavailable

39

Phillips Head Screw 1/4 - 20 X 1-1/2"

204100200

$2.99

40

J-Trim, Blue

204073002

Unavailable

41

Vent Cover, Port Side, Blue

204072491

Unavailable

41

VENT COVER, STARBOARD, BLUE - Call your local BRP dealership

204072493

Unavailable

42

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

44

Hex. Elastic Stop Nut M6

232561600

$0.92

45

Hex. Screw M6 X 35

207163560

$1.17

46

Loctite 243, 10 ml

293800060

$20.77

47

VENT INSERT, PORT SIDE - Call your local BRP dealership

204073029

Unavailable

47

VENT INSERT, STARBOARD - Call your local BRP dealership

204073035

Unavailable

48

VENT BASE, PORT SIDE - Call your local BRP dealership

204072801

Unavailable

48

VENT BASE, STARBOARD - Call your local BRP dealership

204072802

Unavailable

49

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

50

Elevator Bolt

204000130

Unavailable

51

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

52

Flat Washer M6, Stainless

234062600

$0.64

53

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

54

Loctite 271, 10 ml

293800005

$20.77

55

FIX TUBE - Call your local BRP dealership

204072904

Unavailable

56

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

57

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

58

Loctite 243, 10 ml

293800060

$20.77

59

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

60

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

61

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

62

FIXATION PLATE - Call your local BRP dealership

204072906

Unavailable

63

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

64

Hex. Forming Screw M6 X 20

207162060

$1.03

65

Flat Washer M6, Stainless

234062600

$0.64

66

Hex. Elastic Stop Nut M6

232561600

$0.92

67

SPRING - Call your local BRP dealership

291001205

Unavailable

68

Synthetic Grease, 400 G

293550010

Unavailable

69

Windshield Latch

570023800

$3.58

70

Flat Washer M6, Stainless

234062600

$0.64

71

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

72

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

73

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable
