- Challenger 230 155NA, 2007
09- Body And Accessories 2

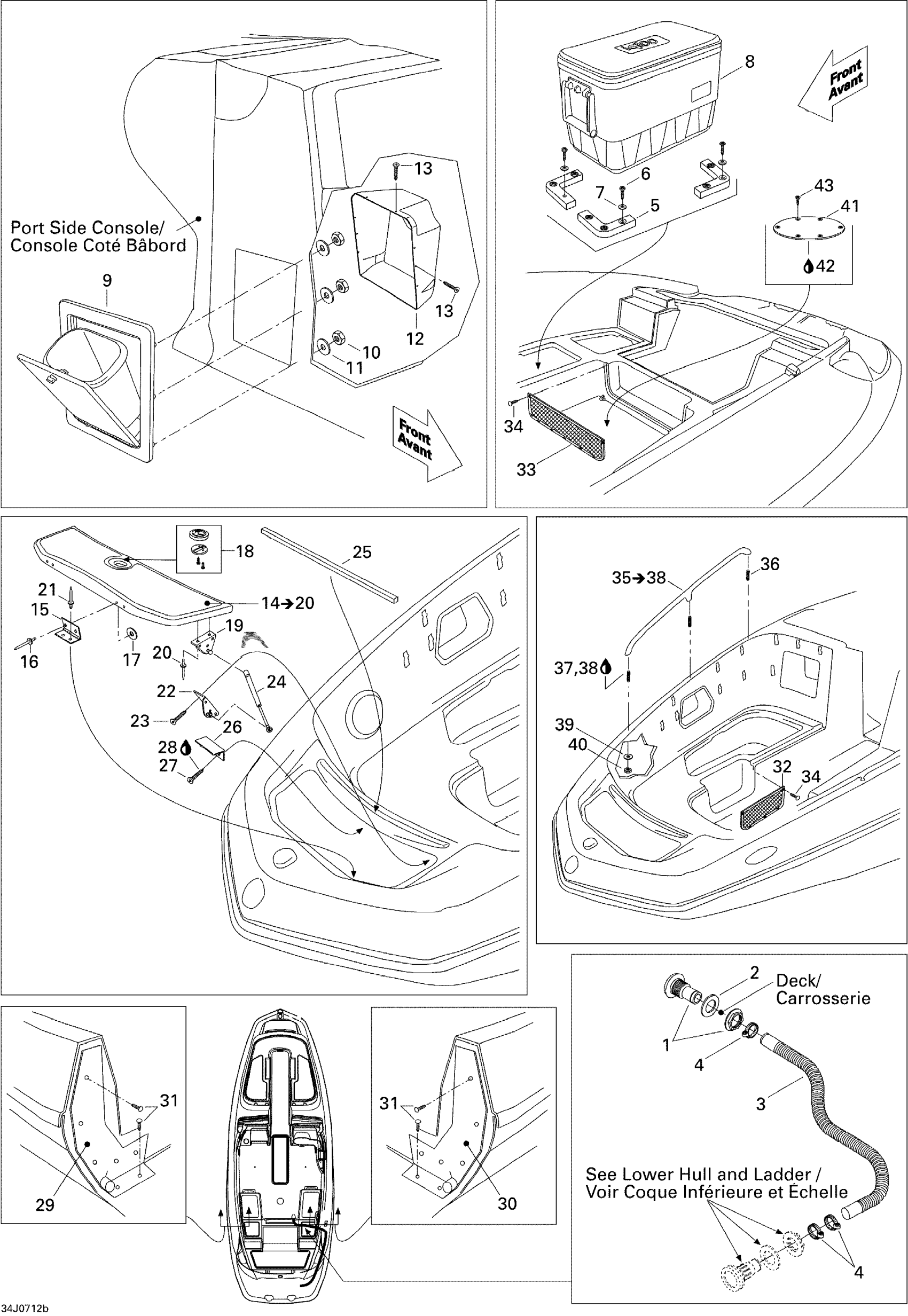

Sea-doo Challenger 230 155NA, 2007 09- Body And Accessories 2 Diagram
#
1
DRAIN FITTING - Call your local BRP dealership
204130163
Unavailable
2
GASKET - Call your local BRP dealership
292800106
Unavailable
3
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
4
Norma Clamp
293650074
$17.05
5
Cooler Mount Kit
204072718
Unavailable
6
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
7
Flat Washer 4 mm, Stainless
234041600
$1.15
8
COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership
204072662
Unavailable
9
Trash Storage
204072969
Unavailable
10
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
11
Flat Washer 5 mm, Stainless
234052600
$0.77
12
Trash Storage Liner
204072973
Unavailable
13
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
14
Anchor Lid | Includes 14 To 20
204072664
Unavailable
15
HINGE - Call your local BRP dealership
204072601
Unavailable
16
Avdel Rivet 3/16"
293150037
$0.56
17
Flat Washer M5, Stainless
234051600
$0.77
18
Stainless Latch
204072838
$144.99
19
Shock Bracket
204073074
$27.99
20
Pop Rivet 3/16"
293150088
$0.99
21
Avdel Rivet 3/16"
293150037
$0.56
22
Shock Bracket
204073074
$27.99
23
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
24
GAS SHOCK - Call your local BRP dealership
204073017
Unavailable
25
Seal, Neoprene
293200095
Unavailable
26
KEEPER - Call your local BRP dealership
204070060
Unavailable
27
Phillips Screw M4 X 12
208641260
$1.03
28
Loctite 243, 10 ml
293800060
$21.49
29
SOUNDWALL SEAL, PORT SIDE - Call your local BRP dealership
204072504
Unavailable
30
Soundwall Seal, Starboard
204072505
Unavailable
31
Black, Dart
293730006
$0.99
32
Storage Net, Starboard
204072691
Unavailable
32
Storage Net, Port Side
204072692
Unavailable
33
Storage Net, Rear
204072693
Unavailable
34
Black, Dart
293730006
$0.99
35
Bow Rail Ass'y, Starboard | Includes 35 to 38
204072537
Unavailable
35
Bow Rail Ass'y, Port Side | Includes 35 to 38
204072535
Unavailable
36
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
37
Loctite 271, 10 ml
293800005
$26.99
38
Was 293800041 Loctite Primer 7649
219704458
$39.99
39
Flat Washer 10 mm, Stainless
234002600
$2.22
40
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
41
TABLE PLUG - Call your local BRP dealership
204072909
Unavailable
42
Silicone Sealant 51388, 300 ml
296000309
$36.99
43
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
