- Challenger 230 155NA, 2007
05- Propulsion

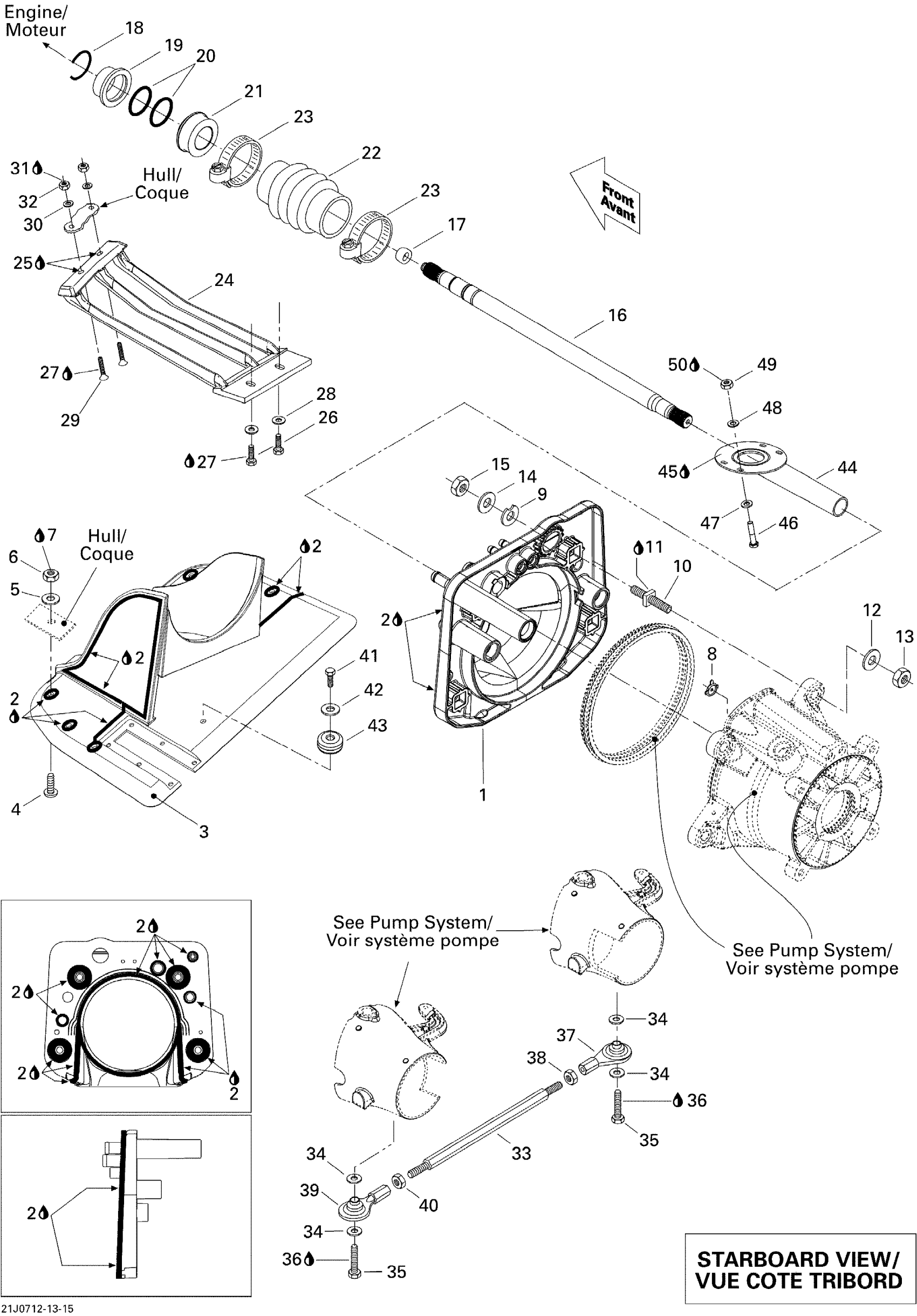

Sea-doo Challenger 230 155NA, 2007 05- Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership
204120333
Unavailable
2
Instant Gasket
219701421
$51.99
3
PLATE_RIDE - Call your local BRP dealership
204120334
Unavailable
3
PLATE_RIDE - Call your local BRP dealership
204120335
Unavailable
4
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
5
Flat Washer M6, Stainless
234062600
$0.77
6
Hex. Elastic Stop Nut M6
232561600
$1.15
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
Reducer This part replaces 291001887.
291004649
$17.49
9
Shim 0.3 mm
272000053
$11.49
9
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
10
Square Stud
250300022
$20.99
11
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
12
Flat Washer
211200051
$1.68
13
Elastic Stop Nut M10, Brass
232501200
$2.64
14
Flat Washer 10 mm, Stainless
234002600
$2.22
15
Elastic Stop Nut M10, Brass
232501200
$2.64
16
Drive Shaft This part replaces 271001534.
271001724
$328.49
17
Drive Shaft Plug
272000173
$8.68
18
C-Clip
271001575
$6.11
19
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
20
O-Ring
293300044
$1.05
21
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
22
Bellows
272000183
$28.99
23
Norma Clamp
293650077
$7.41
24
GRATE-STBD,PAINTED This part replaces 204120337.
0462118
$209.99
24
FIXED GRATE - Call your local BRP dealership
204120336
Unavailable
25
Instant Gasket
219701421
$51.99
26
Hex. Screw M6 X 16
207161660
$1.59
27
Loctite 271, 10 ml
293800005
$26.99
28
Stainless Flat Washer M6
234061600
$0.33
29
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
30
Flat Washer M6, Stainless
234062600
$0.77
31
Silicone Sealant 51388, 300 ml
296000309
$36.99
32
Hex. Elastic Stop Nut M6
232561600
$1.15
33
LINK ROD - Call your local BRP dealership
204120255
Unavailable
34
Stainless Flat Washer M6
234061600
$0.33
35
Hex. Screw M6 X 25
207162560
$1.47
36
Loctite 243, 10 ml
293800060
$21.49
37
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
38
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
39
BALL JOINT - Call your local BRP dealership
204120075
Unavailable
40
HEX. NUT 5/16-24 - Call your local BRP dealership
211100034
Unavailable
41
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
42
Stainless Flat Washer M6
234061600
$0.33
43
Anode Zinc
271001813
$18.99
44
SHAFT GUARD - Call your local BRP dealership
204120328
Unavailable
45
Instant Gasket
219701421
$51.99
46
Phillips Screw M5 X 35
208653560
$2.22
47
Flat Washer M5, Stainless
234051600
$0.77
48
Flat Washer 5 mm, Stainless
234052600
$0.77
49
Hex. Elastic Nut M5 | X
232551600
$1.15
50
Silicone Sealant 51388, 300 ml
296000309
$36.99
