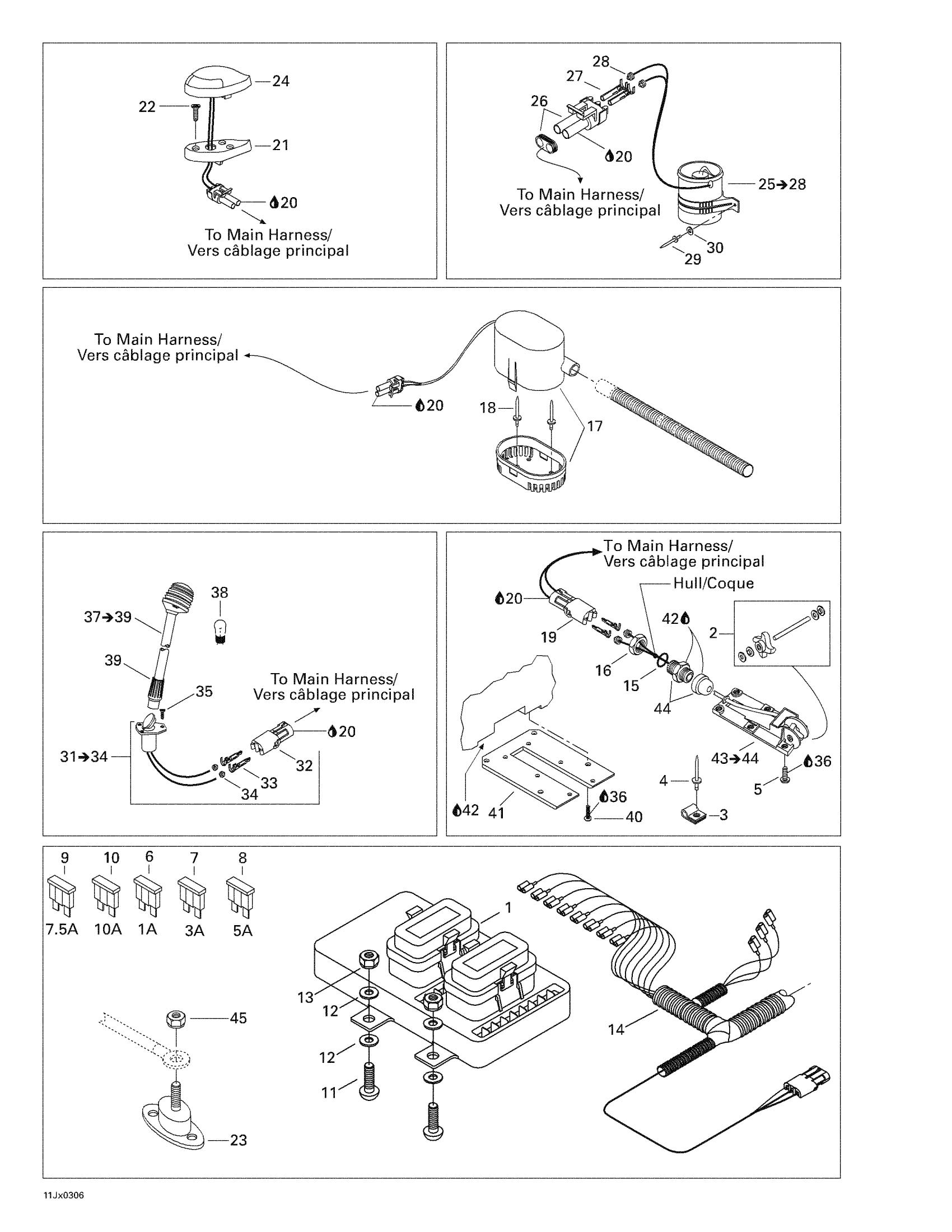

Sea-doo Challenger 2000, Electrical Accessories 2 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

2

Paddle Wheel Kit

295500108

Unavailable

3

Cable Clamp 3/16”

204100026

Unavailable

4

Pop Rivet 3/16"

293150088

$0.99

5

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

6

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

7

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

8

Fuse, 5 Amperes | CE

278000344

$3.28

9

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

10

Fuse, 10 Amperes | North America

278001197

$2.21

11

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Accessories Harness

204470835

Unavailable

15

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

16

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

17

Bilge Pump

204471431

Unavailable

18

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

19

Female Housing, 2 Circuits

278000217

$9.59

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

23

Ground Post

204470715

Unavailable

24

Front Lamp

204470311

Unavailable

25

Fan Ass'y | Includes 44 to 47

204470108

$144.99

26

Male Connector, 2 Circuits

278000220

$15.49

27

Female Terminal

278000223

$3.19

28

Wire Seal

278000218

$4.39

29

Pop Rivet 3/16"

293150008

$0.50

30

Flat Washer 5 mm, Stainless

234052600

$0.77

31

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

32

Female Housing, 2 Circuits

278000217

$9.59

33

Male Terminal | XT Models

278000222

$3.19

34

Wire Seal

278000218

$4.39

35

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

36

Loctite 243, 10 ml

293800060

$21.49

37

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

38

Bulb

204470053

Unavailable

39

COLLAR - Call your local BRP dealership

204470350

Unavailable

40

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

41

Sensor Support

204470538

Unavailable

42

Silicone Sealant 51388, 300 ml

296000309

$36.99

43

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

44

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

45

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable
