09- Seat (front And Rear)

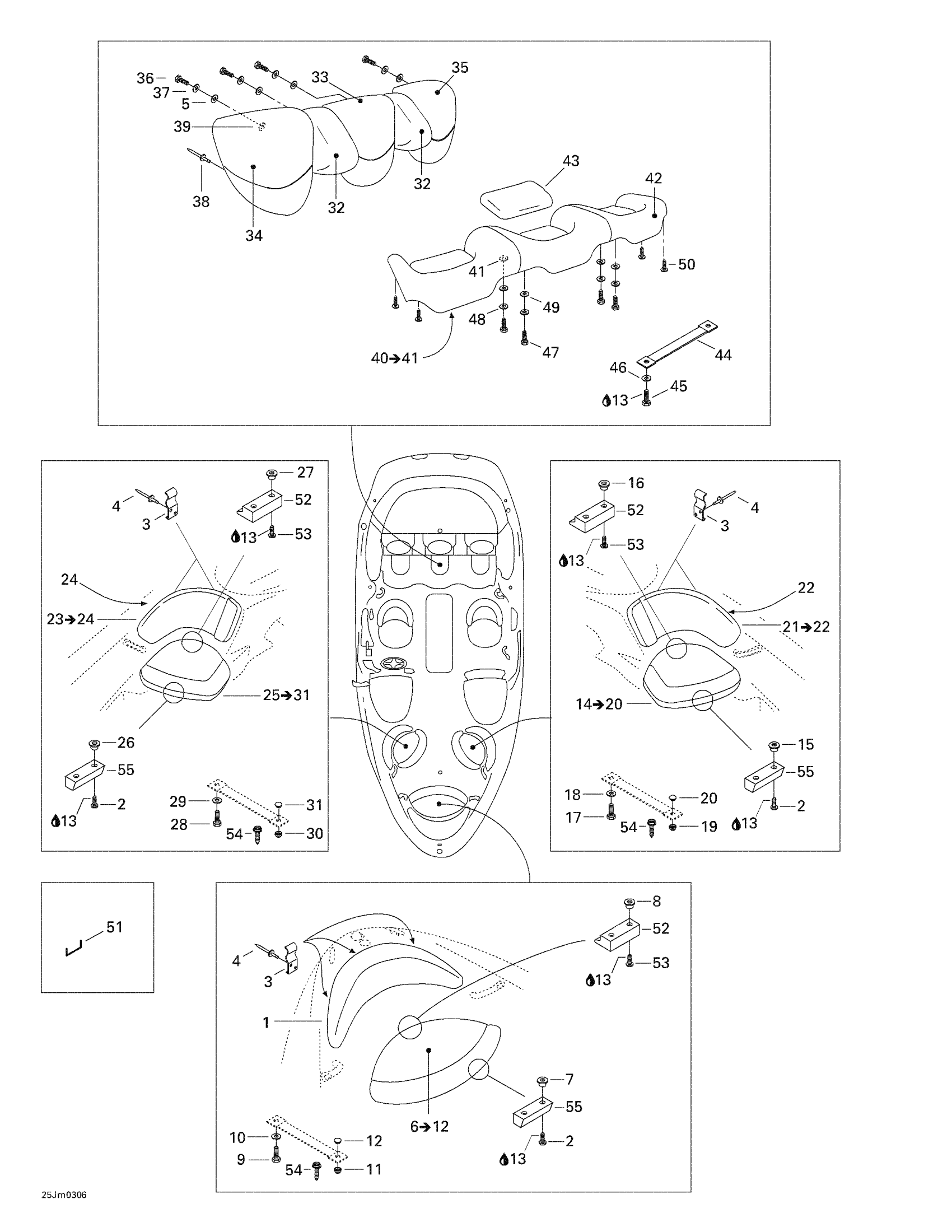

Sea-doo Challenger 2000 09- Seat (front And Rear) Diagram
#
1
Front Backrest Ass'y
204612175
Unavailable
2
Screw 10-32 X 1-1/4”
204100075
Unavailable
3
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
4
Pop Rivet 3/16"
293150043
$2.09
5
Flat Washer 8 mm, Stainless
234082600
$2.43
6
Front Seat ass'y | Includes 6 - 12.
204610989
Unavailable
7
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
8
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
9
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
10
Flat Washer 4 mm, Stainless
234042600
$1.15
11
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
12
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
13
Loctite 243, 10 ml
293800060
$21.49
14
Front Seat Ass'y, Port | Includes 17 to 23
204612187
Unavailable
15
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
16
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
17
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
18
Flat Washer 4 mm, Stainless
234042600
$1.15
19
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
20
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
21
LH Backrest Ass'y | Includes 24 to 25
204612194
Unavailable
22
Was 293200017 Neoprene Seal
219704365
$149.99
23
RH Backrest Ass'y | Includes 26 to 27
204612197
Unavailable
24
Was 293200017 Neoprene Seal
219704365
$149.99
25
RH Seat Ass’Y | Includes 28 to 34
204612199
Unavailable
26
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
27
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
28
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
29
Flat Washer 4 mm, Stainless
234042600
$1.15
30
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
31
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
32
Bump Cover, Ultraviolet Pearl
204612204
Unavailable
33
Backrest Cover, Silver Metallic
204612205
Unavailable
34
RH Backrest Cover, Silver Metallic
204612206
Unavailable
35
LH Backrest Cover, Silver Metallic
204612207
Unavailable
36
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
37
Flat Washer M6, Stainless
234062600
$0.77
38
RIVET - Call your local BRP dealership
293150065
Unavailable
39
Anchor Washer
204100005
Unavailable
40
Rear Seat Base | Includes 35 - 36.
204610303
Unavailable
41
Anchor Washer
204100005
Unavailable
42
Rear Seat Cover, Off White
204612209
Unavailable
43
Rear Seat Cushion, Silver Metallic
204612210
Unavailable
44
Rear Seat Strap, Off White
204612212
Unavailable
45
Hex. Screw M6 X 16
207161660
$1.59
46
Flat Washer M6, Stainless
234062600
$0.77
47
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
48
Flat Washer M6, Stainless
234062600
$0.77
49
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
50
Dart
293730021
$7.79
51
Staple
293730005
Unavailable
52
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
53
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
54
Threaded Stud 5/8”
204100046
Unavailable
55
LATCH - Call your local BRP dealership
204611805
Unavailable
