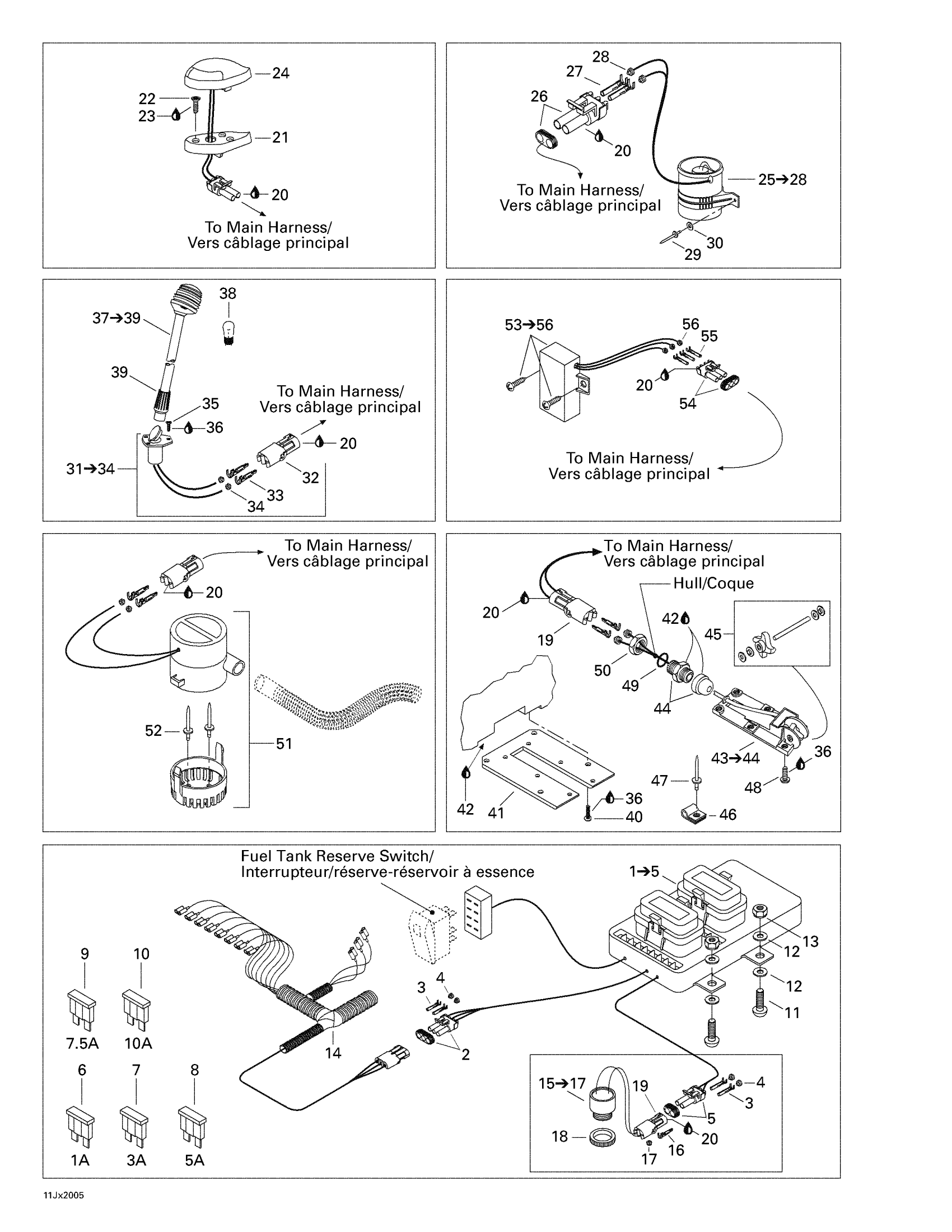

Sea-doo Challenger 2000, Electrical Accessories 2 Diagram

#

Description
Price

1

Fuse Block | Includes 48 - 57.

204470470

Unavailable

2

Male Housing, 3 Circuits

278000273

$7.59

3

Female Terminal

278000223

$2.55

4

Wire Seal

278000218

$3.48

5

Male Connector, 2 Circuits

278000220

$11.02

6

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

7

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

8

Fuse, 5 Amperes | CE

278000344

$3.22

9

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

10

Fuse, 10 Amperes | North America

278001197

$1.79

11

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.64

13

Hex. Elastic Stop Nut M6

232561600

$0.92

14

Accessories Harness

204470371

Unavailable

15

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

16

Male Terminal | XT Models

278000222

$2.55

17

Wire Seal

278000218

$3.48

18

Buzzer Nut

278000707

Unavailable

19

Female Housing, 2 Circuits

278000217

$7.59

20

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

Phillips Screw M4 X 16

208641660

$0.74

23

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

24

Front Lamp

204470311

Unavailable

25

Fan Ass'y | Includes 44 to 47

204470108

$114.37

26

Male Connector, 2 Circuits

278000220

$11.02

27

Female Terminal

278000223

$2.55

28

Wire Seal

278000218

$3.48

29

Pop Rivet 3/16"

293150008

$0.40

30

Flat Washer 5 mm, Stainless

234052600

$0.64

31

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

32

Female Housing, 2 Circuits

278000217

$7.59

33

Male Terminal | XT Models

278000222

$2.55

34

Wire Seal

278000218

$3.48

35

SCREW M4 X 30 - Call your local BRP dealership

208443070

Unavailable

36

Loctite 243, 10 ml

293800060

$20.77

37

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

38

Bulb

204470053

Unavailable

39

COLLAR - Call your local BRP dealership

204470350

Unavailable

40

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.94

41

Sensor Support

204470538

Unavailable

42

Silicone Sealant 51388, 300 ml

296000309

$35.72

43

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

44

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

45

Paddle Wheel Kit

295500108

Unavailable

46

Cable Clamp 3/16”

204100026

Unavailable

47

Avdel Rivet 3/16"

293150037

$0.47

48

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

49

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

50

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

51

Bilge Pump This part replaces 204470220.

278002020

$79.92

52

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

53

Water sensor | Includes 44 - 47.

204470476

Unavailable

54

Male Housing, 3 Circuits

278000273

$7.59

55

Female Terminal

409007300

$0.36

56

Wire Seal

710000048

$5.10
