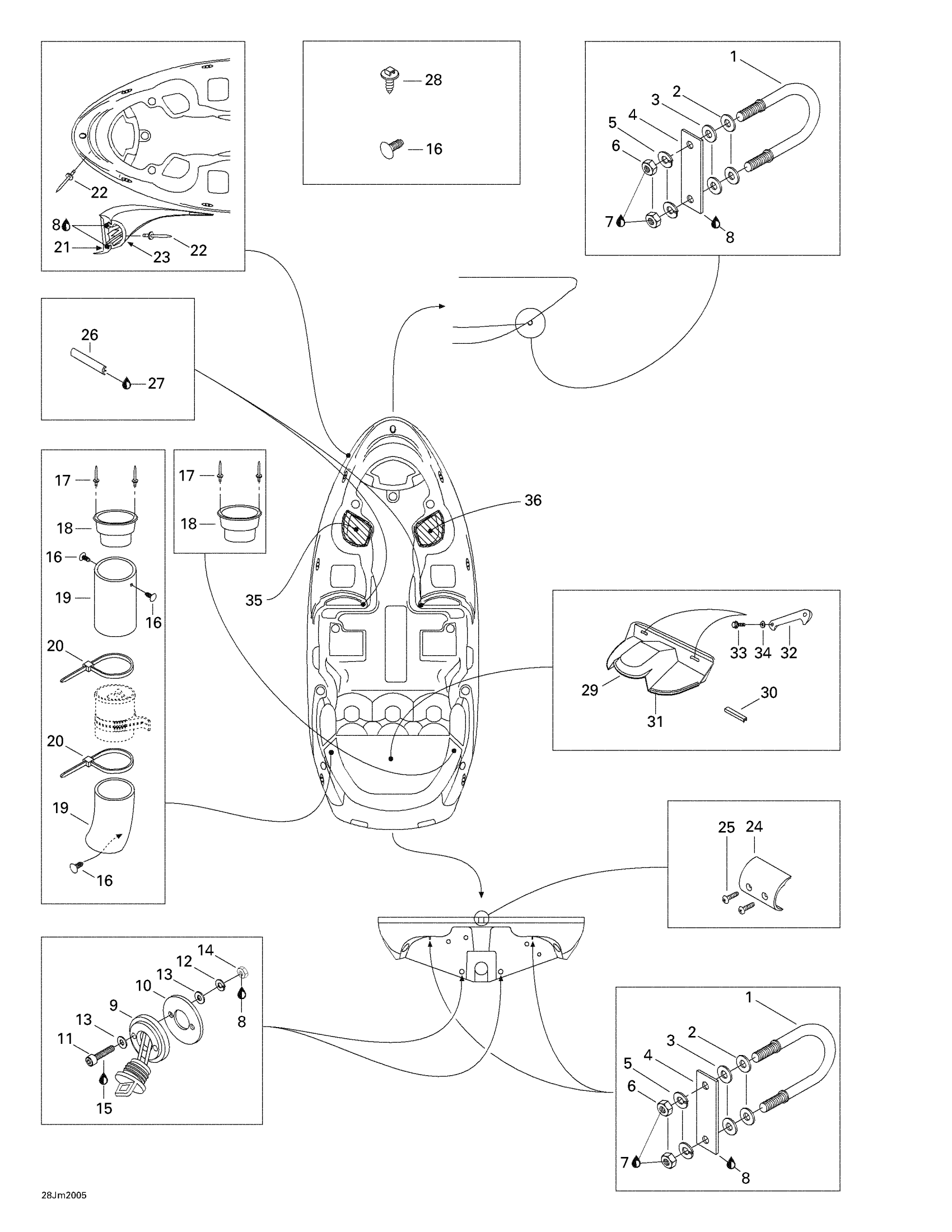

Sea-doo Challenger 2000, Body And Accessories 1 Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Flat Washer M8.5 x 18

293050001

$3.07

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Hex. Nut M8

232081600

$1.47

7

Loctite 271, 10 ml

293800005

$26.99

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Drain Plug

292000187

$14.49

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

Socket Screw M4 X 30

205043060

Unavailable

12

Lock Washer 4 mm

234141601

$1.15

13

Flat Washer 4 mm

234040600

$0.55

14

NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership

232041600

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Black, Dart

293730006

$0.99

17

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

18

Vent Adaptor

204050160

Unavailable

19

Was 204050122 Vent Hose 4"

219704358

$25.99

20

Tie Rap

293750019

$3.29

21

Bumper

204050199

Unavailable

22

Pop Rivet 3/16"

293150013

$1.37

23

Bumper Trim

204050200

Unavailable

24

BUMPER COVER - Call your local BRP dealership

291000905

Unavailable

25

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

26

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

27

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

28

Mount Dart

293730040

$1.04

29

Accessories Cover

204050204

Unavailable

30

Trim, Meter

204050213

Unavailable

31

Seal Tray 1000Mm Long

219704368

$13.99

32

Black, Handle - Call your local BRP dealership

204050159

Unavailable

33

Hex. Flange Screw K40 X 16

241141660

$1.48

34

Flat Washer 4 mm, Stainless

234042600

$1.15

35

LH Storage Box Carpet

204070848

Unavailable

36

RH Storage Box Carpet

204070852

Unavailable
