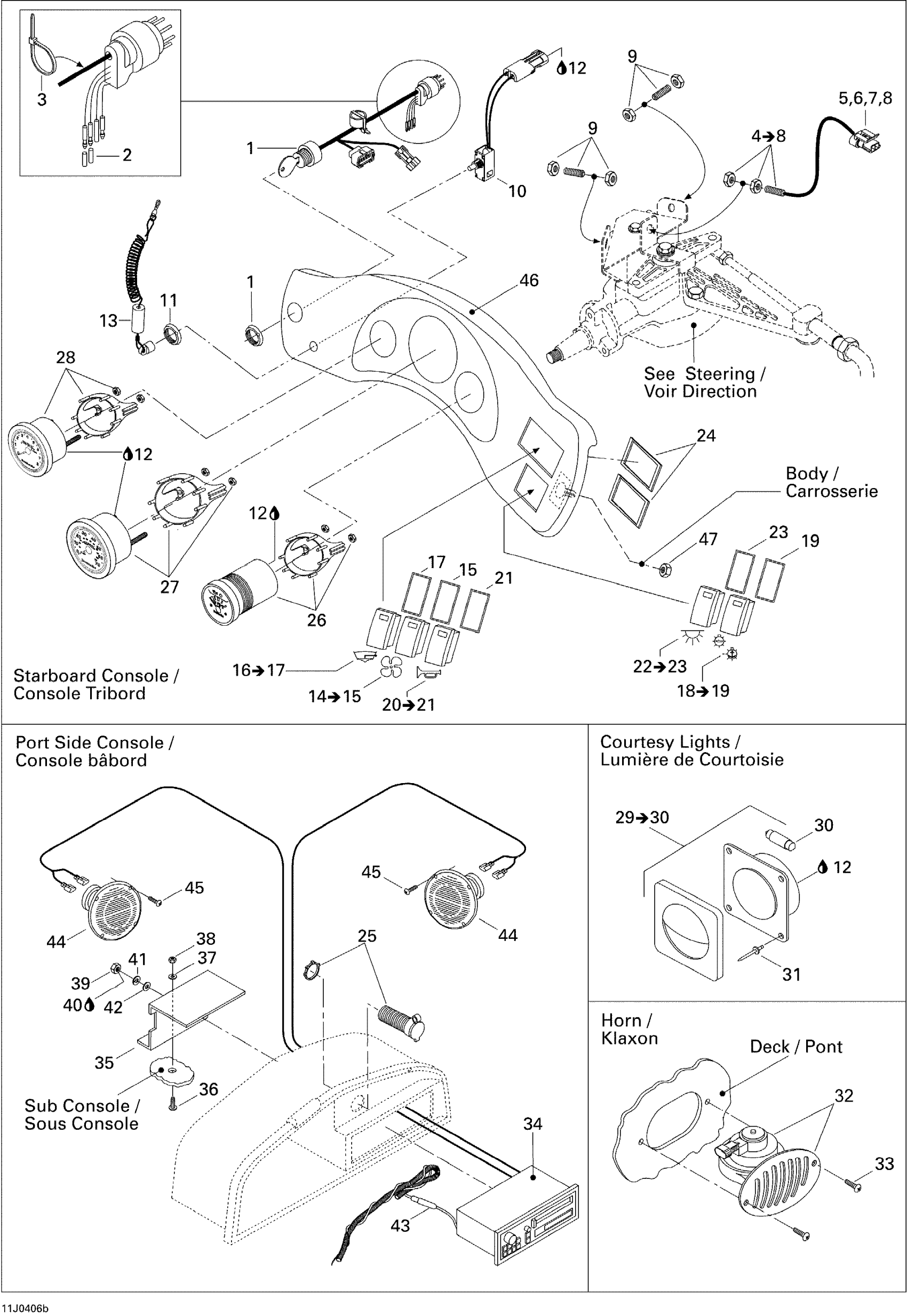

Sea-doo Challenger 2000 Electrical Accessories 2 Diagram

#

Description
Price

1

Instrument Harness, Mercury

204470800

Unavailable

2

RUBBER CAP - Call your local BRP dealership

204130033

Unavailable

3

Tie Wrap 94 mm | 4X4

293750001

Unavailable

4

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

5

Female Terminal Housing

204470634

Unavailable

6

Terminal Support

204470635

Unavailable

7

Wire Seal

204470641

Unavailable

8

Female Terminal

278001481

Unavailable

9

Low Speed Control Actuator

204470632

Unavailable

10

SAFETY SWITCH ASS'Y - Call your local BRP dealership | Includes 10 to 13

204470867

Unavailable

11

Safety Switch Nut

278000099

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

13

Safety Lanyard

278001431

Unavailable

14

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

15

Gasket

204470132

Unavailable

16

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

17

Gasket

204470132

Unavailable

18

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

19

Gasket

204470132

Unavailable

20

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

Unavailable

21

Gasket

204470132

Unavailable

22

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

23

Gasket

204470132

Unavailable

24

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

25

DC Outlet

710001248

Unavailable

26

Oil/Fuel Gauge

204470806

Unavailable

27

Speedometer Gauge

204470805

Unavailable

28

Tachometer Gauge

204470807

Unavailable

29

Courtesy Light Ass'y | Includes 29 to 30

204470026

Unavailable

30

BULB - Call your local BRP dealership

204470081

Unavailable

31

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

32

HORN - Call your local BRP dealership

204470801

Unavailable

33

Phillips Tapping Screw M4.2 X 32

209943260

Unavailable

34

Compact Disk Radio

204470869

Unavailable

35

Radio Support

204470688

Unavailable

36

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

37

Flat Washer M6, Stainless

234062600

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

Unavailable

39

Hex. Nut M5

232051600

Unavailable

40

Loctite 243, 10 ml

293800060

Unavailable

41

Helical Lock Washer M5

234151601

Unavailable

42

Flat Washer 5 mm, Stainless

234052600

Unavailable

43

Antenna

204470380

Unavailable

44

Speaker

204470378

Unavailable

45

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

46

Fascia

204470767

Unavailable

47

Hex. Elastic Nut M8

232581600

Unavailable
