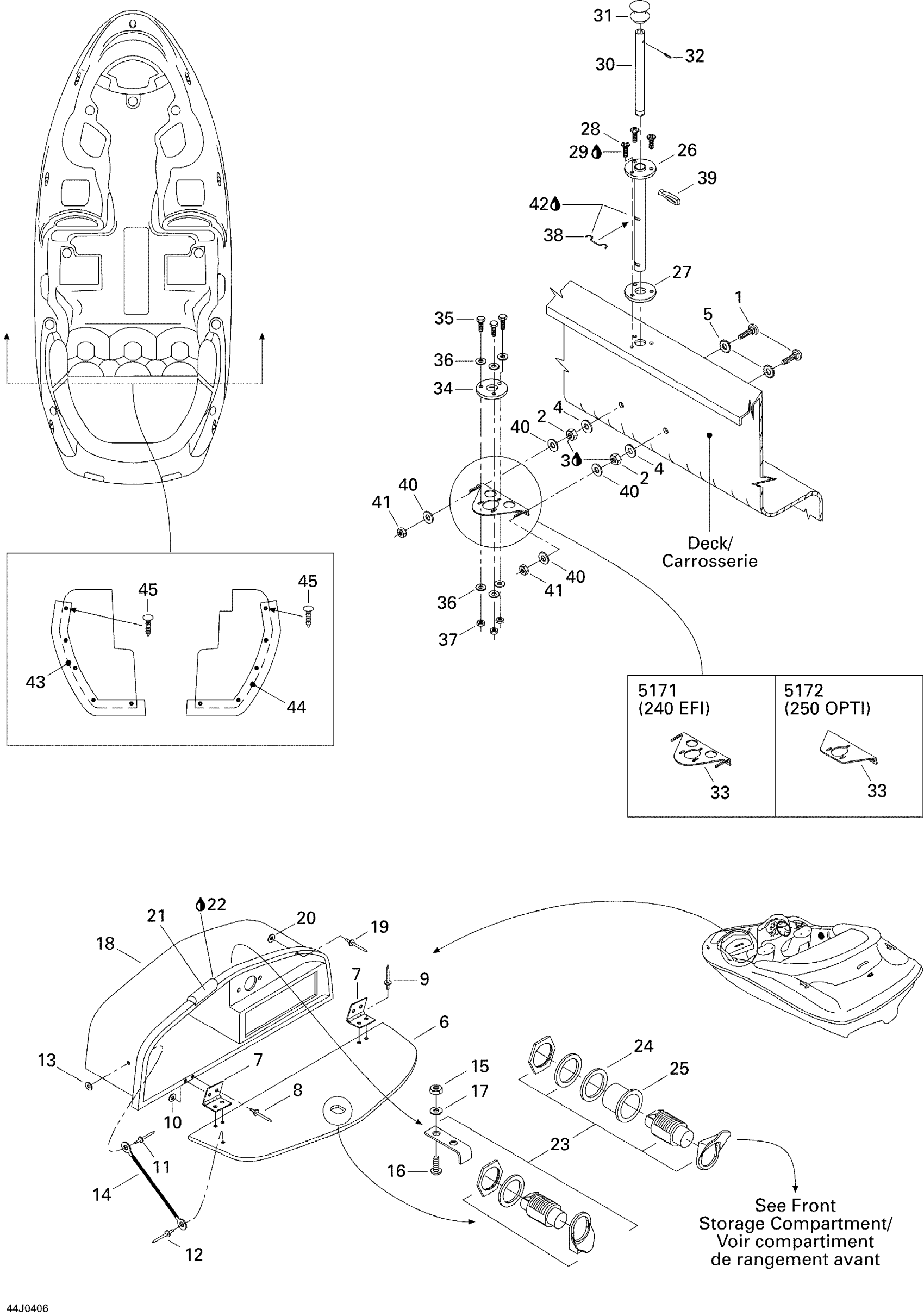

Sea-doo Challenger 2000 09- Ski Shaft and Glove Box Diagram

#

Description
Price

1

Elevator Bolt

204000130

Unavailable

2

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

3

Loctite 271, 10 ml

293800005

$26.99

4

Flat Washer M6, Stainless

234062600

$0.77

5

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

6

Tray Door Ass'y

204071891

Unavailable

7

HINGE - Call your local BRP dealership

204071462

Unavailable

8

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

9

Pop Rivet 1/8”

293150063

Unavailable

10

Flat Washer M3, Stainless

234032600

$0.55

11

Pop Rivet 3/16"

293150008

$0.50

12

Pop Rivet 3/16"

293150043

$2.09

13

Flat Washer 5 mm, Stainless

234052600

$0.77

14

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

15

Elastic Stop Nut M4

232541600

$1.15

16

Phillips Screw M4 X 12

208641260

$1.03

17

Flat Washer 4 mm

234040600

$0.55

18

Glove Box

204070392

Unavailable

19

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

20

Flat Washer M3, Stainless

234032600

$0.55

21

Neoprene, Meter

204070115

Unavailable

22

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

23

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

24

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

25

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable

26

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

27

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

28

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

29

Loctite 243, 10 ml

293800060

$21.49

30

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

31

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

32

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

33

Fixation Plate

291001059

Unavailable

33

Fixation Plate

204071675

Unavailable

34

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

35

Hex. Forming Screw M6 X 20

207162060

$1.29

36

Flat Washer M6, Stainless

234062600

$0.77

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

SPRING - Call your local BRP dealership

291001205

Unavailable

39

Windshield Latch

570023800

$4.49

40

Flat Washer M6, Stainless

234062600

$0.77

41

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

42

Synthetic Grease, 400 G

293550010

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Black, Dart

293730006

$0.99
