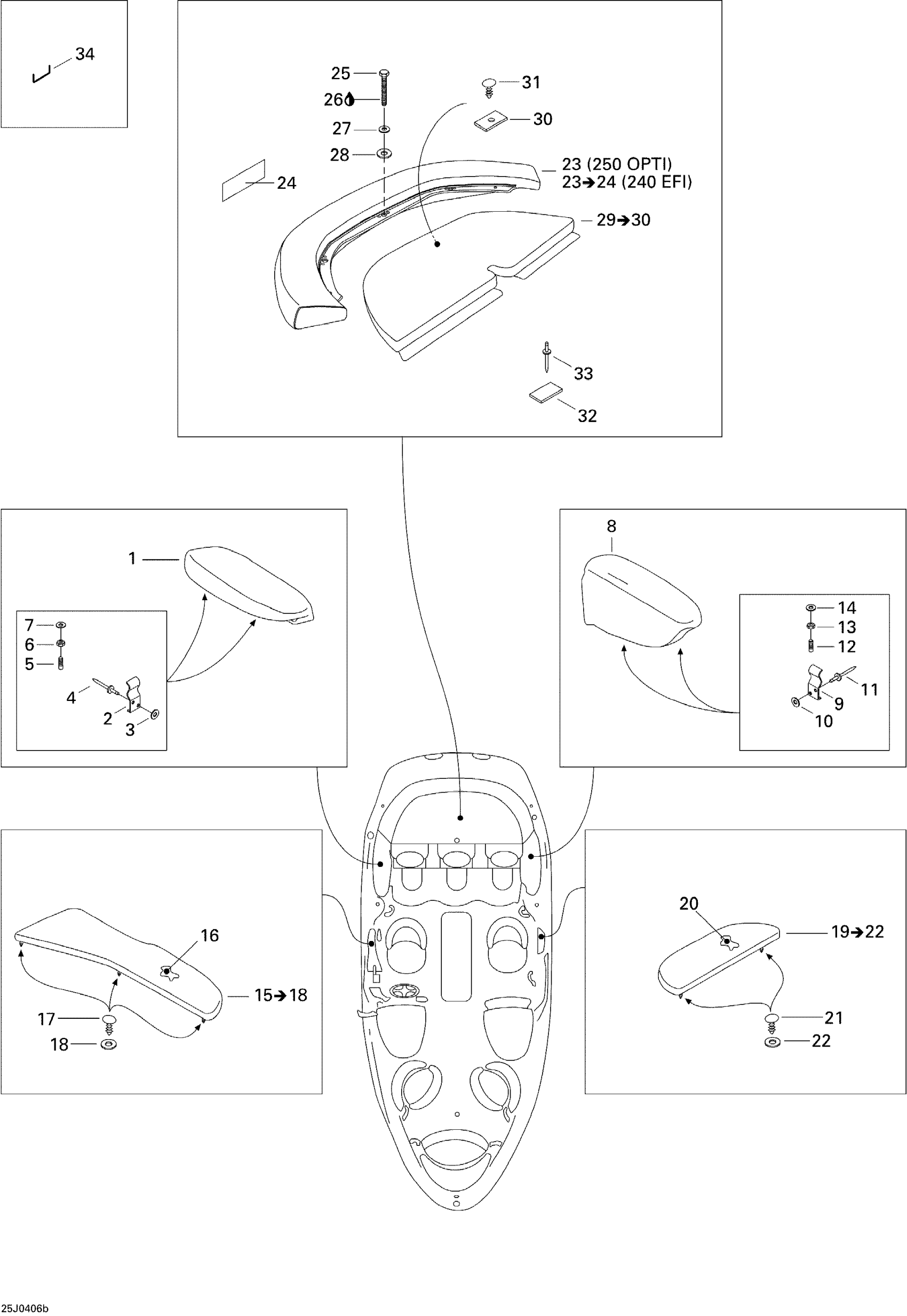

Sea-doo Challenger 2000 Seat (Platform and Armrest) Diagram

#

Description
Price

1

RH Armrest Ass'y

204612213

Unavailable

2

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

3

Stainless Flat Washer M6

234061600

Unavailable

4

Pop Rivet 3/16"

293150043

Unavailable

5

Socket Set Screw M5 X 40, Scotch Grip

206254069

Unavailable

6

Hex. Elastic Nut M5 | X

232551600

Unavailable

7

Flat Washer 5 mm, Stainless

234052600

Unavailable

8

LH Armrest Ass'y

204612215

Unavailable

9

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

10

Stainless Flat Washer M6

234061600

Unavailable

11

Pop Rivet 3/16"

293150043

Unavailable

12

Socket Set Screw M5 X 40, Scotch Grip

206254069

Unavailable

13

Hex. Elastic Nut M5 | X

232551600

Unavailable

14

Flat Washer 5 mm, Stainless

234052600

Unavailable

15

RH Elbow Padding Ass'y | Includes 57 to 60

204612217

Unavailable

16

Neoprene Foam

204610121

Unavailable

17

Black, Dart

293730006

Unavailable

18

Flat Washer M6, Stainless

234062600

Unavailable

19

LH Elbow Padding Ass'y | Includes 61 to 64

204612219

Unavailable

20

Neoprene Foam

204610123

Unavailable

21

Black, Dart

293730006

Unavailable

22

Flat Washer M6, Stainless

234062600

Unavailable

23

Rear Spoiler Ass'y | 5171 (250 OPTI)

204612238

Unavailable

23

Rear Spoiler Ass'y | Includes 65 to 66

204612233

Unavailable

24

Staple Cover, Meter

204610184

Unavailable

25

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

Unavailable

26

Loctite 243, 10 ml

293800060

Unavailable

27

Flat Washer M6, Stainless

234062600

Unavailable

28

Flat Washer 10 mm, Stainless

234002600

Unavailable

29

Platform Ass'y | Includes 71 to 72

204612691

Unavailable

30

Strap

204610194

Unavailable

31

Black, Dart

293730006

Unavailable

32

Velcro 25 Mm X 940 Mm

204611298

Unavailable

32

Velcro 25 Mm X 635 Mm

204611299

Unavailable

33

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

33

Pop Rivet 3/16"

293150008

Unavailable

34

Staple

293730005

Unavailable
