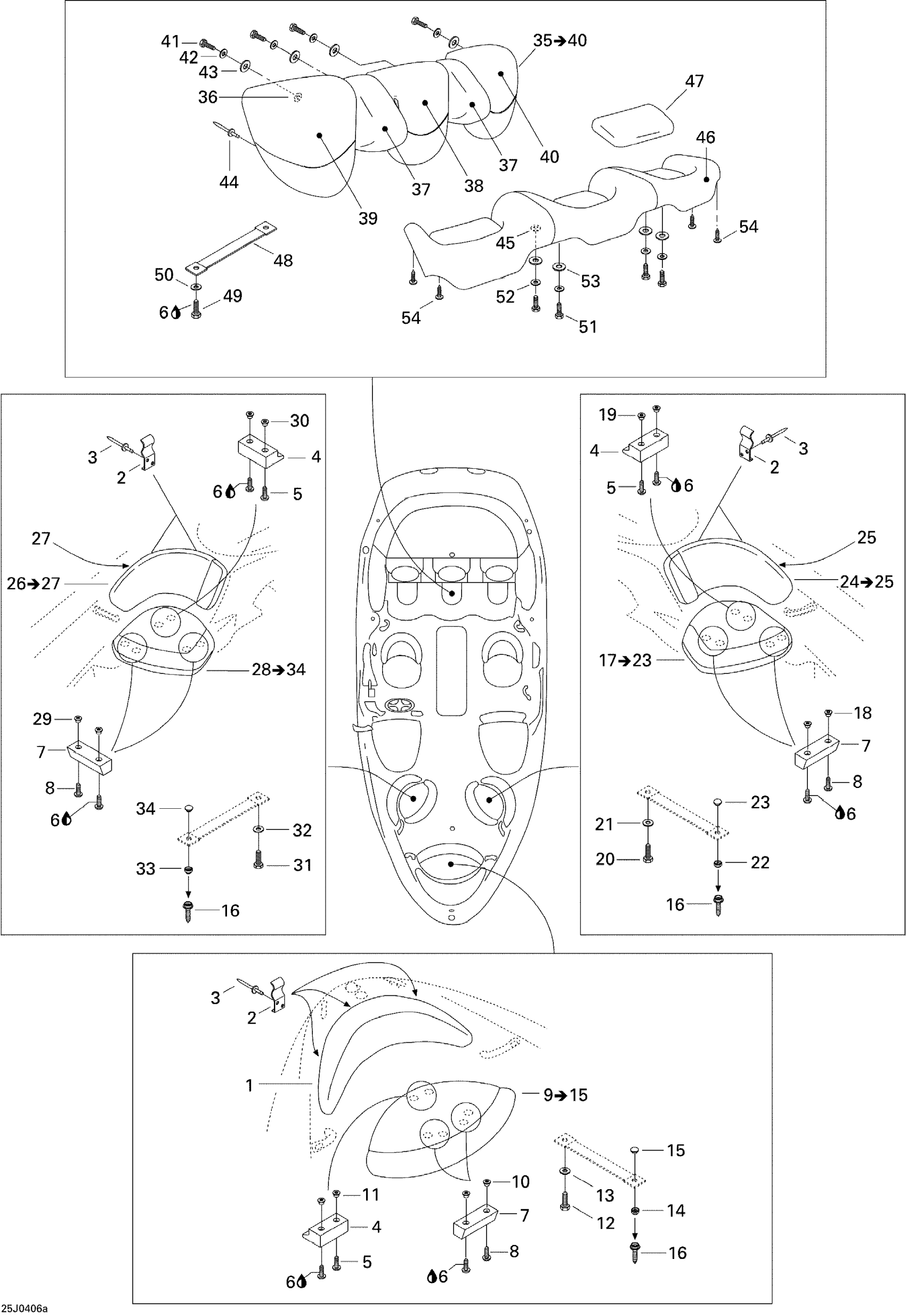

Sea-doo Challenger 2000 09- Seat (Front and Rear) Diagram

#

Description
Price

1

Front Backrest Ass'y

204612175

Unavailable

2

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

3

Pop Rivet 3/16"

293150043

$2.09

4

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

5

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

LATCH - Call your local BRP dealership

204611805

Unavailable

8

Screw 10-32 X 1-1/4”

204100075

Unavailable

9

Front Central Seat Ass'y | Includes 9 to 15

204612177

Unavailable

10

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

11

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

12

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

13

Flat Washer 4 mm, Stainless

234042600

$1.15

14

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

15

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

16

Threaded Stud 5/8”

204100046

Unavailable

17

Front Seat Ass'y, Port | Includes 17 to 23

204612187

Unavailable

18

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

19

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

20

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

21

Flat Washer 4 mm, Stainless

234042600

$1.15

22

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

23

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

24

LH Backrest Ass'y | Includes 24 to 25

204612194

Unavailable

25

Was 293200017 Neoprene Seal

219704365

$149.99

26

RH Backrest Ass'y | Includes 26 to 27

204612197

Unavailable

27

Was 293200017 Neoprene Seal

219704365

$149.99

28

RH Seat Ass’Y | Includes 28 to 34

204612199

Unavailable

29

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

30

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

31

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

32

Flat Washer 4 mm, Stainless

234042600

$1.15

33

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

34

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

35

Rear Backrest Ass'y | Includes 27 to 31

204612692

Unavailable

36

Anchor Washer

204100005

Unavailable

37

Bump Cover

204612699

Unavailable

38

Backrest Cover, Silver Metallic

204612205

Unavailable

39

RH Backrest Cover, Silver Metallic

204612206

Unavailable

40

LH Backrest Cover, Silver Metallic

204612207

Unavailable

41

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

42

Flat Washer M6, Stainless

234062600

$0.77

43

Flat Washer 8 mm, Stainless

234082600

$2.43

44

RIVET - Call your local BRP dealership

293150065

Unavailable

45

Anchor Washer

204100005

Unavailable

46

Rear Seat Cover, Off White

204612209

Unavailable

47

Rear Seat Cushion, Silver Metallic

204612210

Unavailable

48

Rear Seat Strap, Off White

204612212

Unavailable

49

Hex. Screw M6 X 16

207161660

$1.59

50

Flat Washer M6, Stainless

234062600

$0.77

51

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

52

Flat Washer M6, Stainless

234062600

$0.77

53

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

54

Dart

293730021

$7.79
