09- Seat (Driver and Passenger)

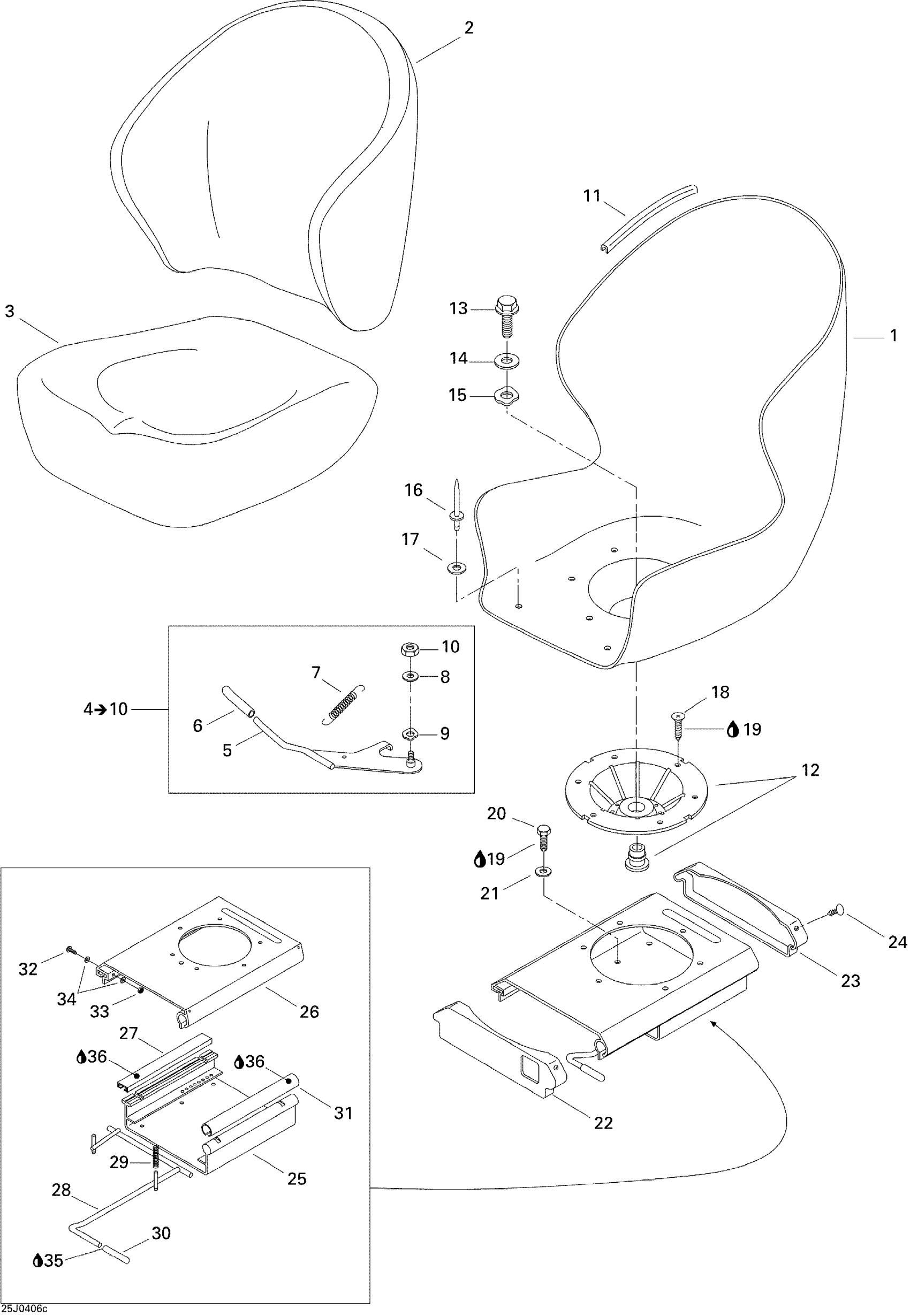

Sea-doo Challenger 2000 09- Seat (Driver and Passenger) Diagram
#
1
Seat Base
204611146
Unavailable
2
Backrest Cushion (Silver Metallic)
295501064
Unavailable
3
Seat Cushion
204612695
Unavailable
4
Lever Arm Ass’y
204610523
Unavailable
5
Lever Arm
204610524
Unavailable
6
Handle
204610348
Unavailable
7
SPRING - Call your local BRP dealership
204610349
Unavailable
8
Stainless Flat Washer M6
234061600
$0.33
9
Washer
211200059
Unavailable
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
12
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
13
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
14
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
15
WASHER - Call your local BRP dealership
293200056
Unavailable
16
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
17
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
18
PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
208561660
Unavailable
19
Loctite 243, 10 ml
293800060
$21.49
20
Hex. Screw M6 X 35
207163560
$1.49
21
Flat Washer M6, Stainless
234062600
$0.77
22
Front Protector
204610375
Unavailable
23
Rear Protector
204610376
Unavailable
24
Black, Dart
293730006
$0.99
25
Lower Part
269500636
Unavailable
26
Upper Part
269500637
Unavailable
27
Rectangular Bushing
269500638
Unavailable
28
Rod Ass'y
269500639
Unavailable
29
Spring
269500640
Unavailable
30
Handle
204610348
Unavailable
31
Circle Bushing
269500642
Unavailable
32
Hex. Screw M6 X 50
207065060
$2.22
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
Stainless Flat Washer M6
234061600
$0.33
35
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
36
Synthetic Grease, 400 G
293550010
Unavailable
