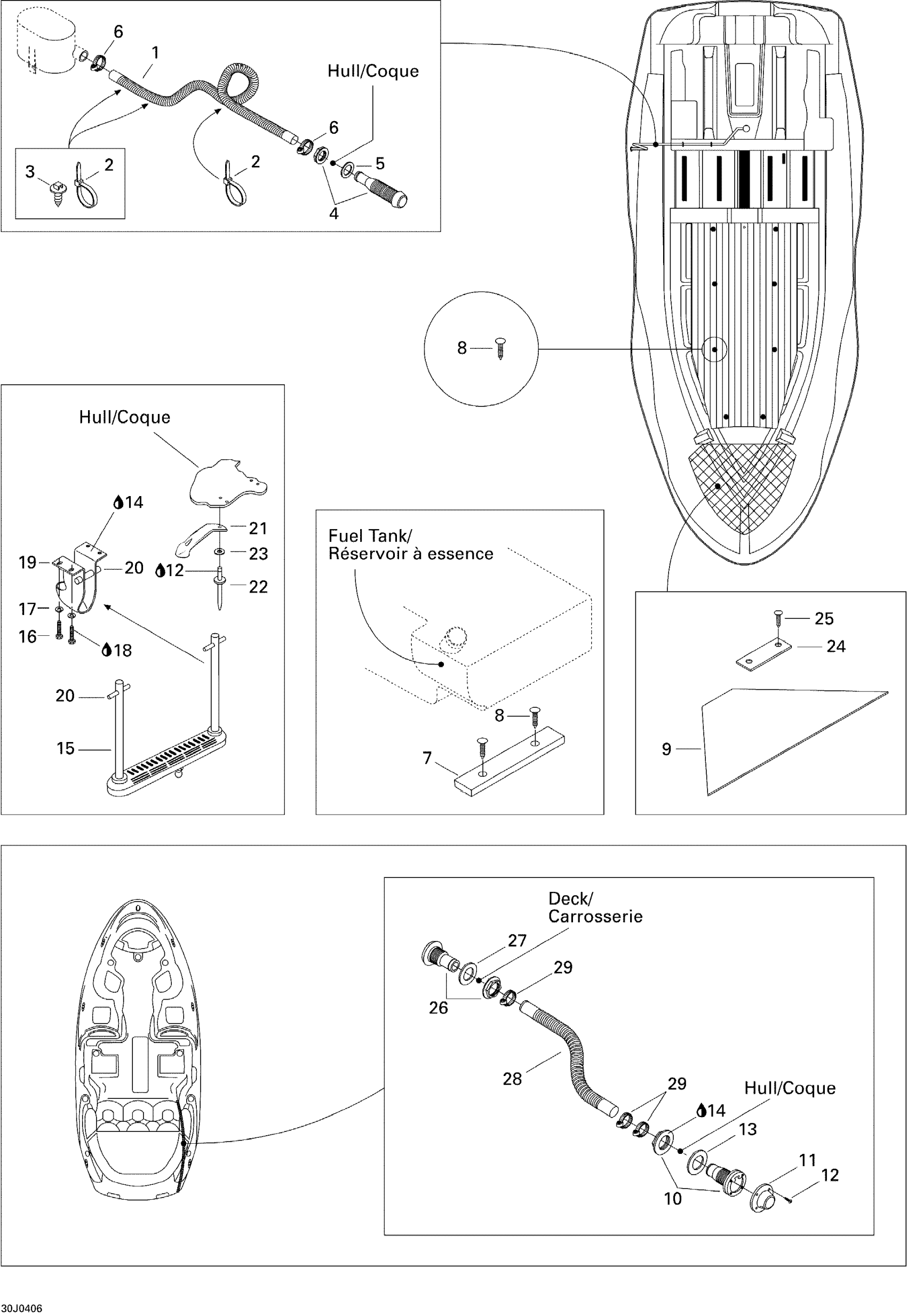

Sea-doo Challenger 2000 Lower Hull and Ladder Diagram

#

Description
Price

1

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

2

Tie-Rap 180 mm

414115200

$0.11

3

Mount Dart

293730040

$1.04

4

Fitting

293710162

$13.49

5

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

6

Tridon Clamp

293650016

$10.99

7

Rubber Pad

204060701

Unavailable

8

Black, Dart

293730006

$0.99

9

Anchor Storage, Black

204060707

Unavailable

10

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

11

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

12

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

13

GASKET - Call your local BRP dealership

292800106

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

LADDER - Call your local BRP dealership

204060187

Unavailable

16

Hex. Screw M6 X 35

207163560

$1.49

17

Lock Washer Helical M6

234161601

$1.15

18

Loctite 243, 10 ml

293800060

$21.49

19

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

20

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

21

Hood Latch

570027100

$13.49

22

Pop Rivet 3/16"

293150013

$1.37

23

Flat Washer 5 mm, Stainless

234052600

$0.77

24

Trim Anchor Storage

204050234

Unavailable

25

Black, Dart

293730006

$0.99

26

FITTING - Call your local BRP dealership

293710060

Unavailable

27

GASKET - Call your local BRP dealership

292800106

Unavailable

28

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

29

Norma Clamp

293650074

$17.05
