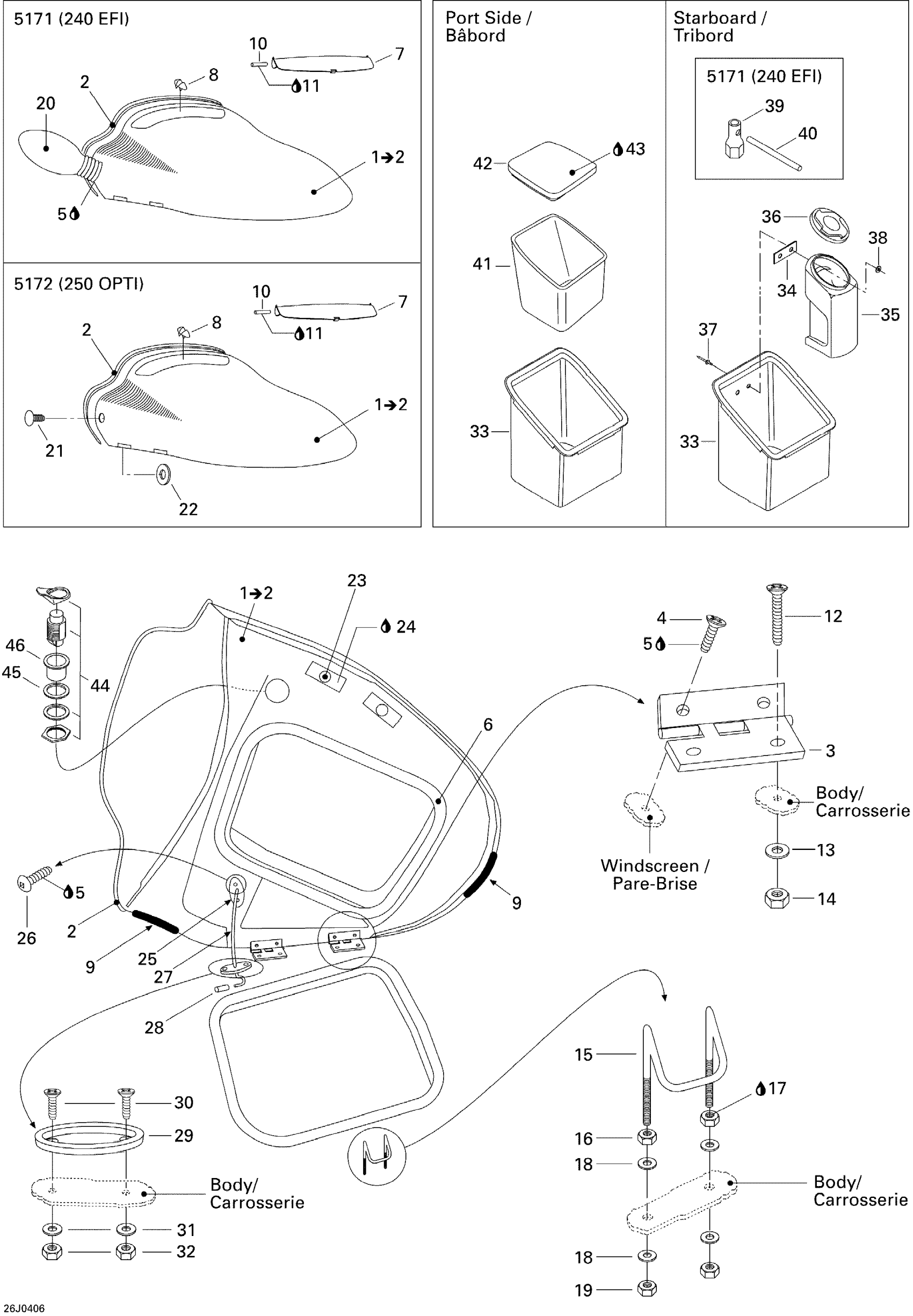

Sea-doo Challenger 2000 Front Storage Compartment Diagram

#

Description
Price

1

RH Windshield | Includes 1 to 2

204620217

Unavailable

1

LH Windshield | Includes 1 to 2

204620218

Unavailable

2

Trim, Meter

204620100

Unavailable

3

Console Hinge

204620005

Unavailable

4

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

5

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

6

Seal Tray 1000Mm Long

219704368

Unavailable

7

DEFLECTOR - Call your local BRP dealership

204073803

Unavailable

8

REAR STOPPER - Call your local BRP dealership

204073804

Unavailable

9

Waterproof Seal, Meter

204620117

Unavailable

10

ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership

204620126

Unavailable

11

Glue Tube, Loctite 454, 20 G

413708300

Unavailable

12

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

13

Flat Washer 4 mm, Stainless

234042600

Unavailable

14

Elastic Stop Nut M4

232541600

Unavailable

15

Hook

204620151

Unavailable

16

Hex. Nut M6

232061600

Unavailable

17

Loctite 243, 10 ml

293800060

Unavailable

18

Flat Washer M6, Stainless

234062600

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

Unavailable

20

Black, RH Mirror

204620026

Unavailable

21

Dart

293730028

Unavailable

22

Flat Washer 10 mm, Stainless

234000600

Unavailable

23

RUBBER STOPPER - Call your local BRP dealership

204620295

Unavailable

24

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

25

ROD HOLDER - Call your local BRP dealership

204620028

Unavailable

26

PHILLIPS SCREW M4 X 16 - Call your local BRP dealership

208441660

Unavailable

27

SUPPORT ROD - Call your local BRP dealership

204620219

Unavailable

28

CAP - Call your local BRP dealership

204620044

Unavailable

29

ROD STOP - Call your local BRP dealership

204620030

Unavailable

30

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

31

Flat Washer 4 mm, Stainless

234042600

Unavailable

32

Elastic Stop Nut M4

232541600

Unavailable

33

STORAGE TRAY - Call your local BRP dealership

269501940

Unavailable

34

GASKET - Call your local BRP dealership

293250037

Unavailable

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

36

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

37

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

38

Flat Washer M3, Stainless

234032600

Unavailable

39

Socket Wrench

204630050

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

42

Icebox Foam Cover

204630013

Unavailable

43

Silicone Sealant 51388, 300 ml

296000309

Unavailable

44

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

45

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

46

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable
