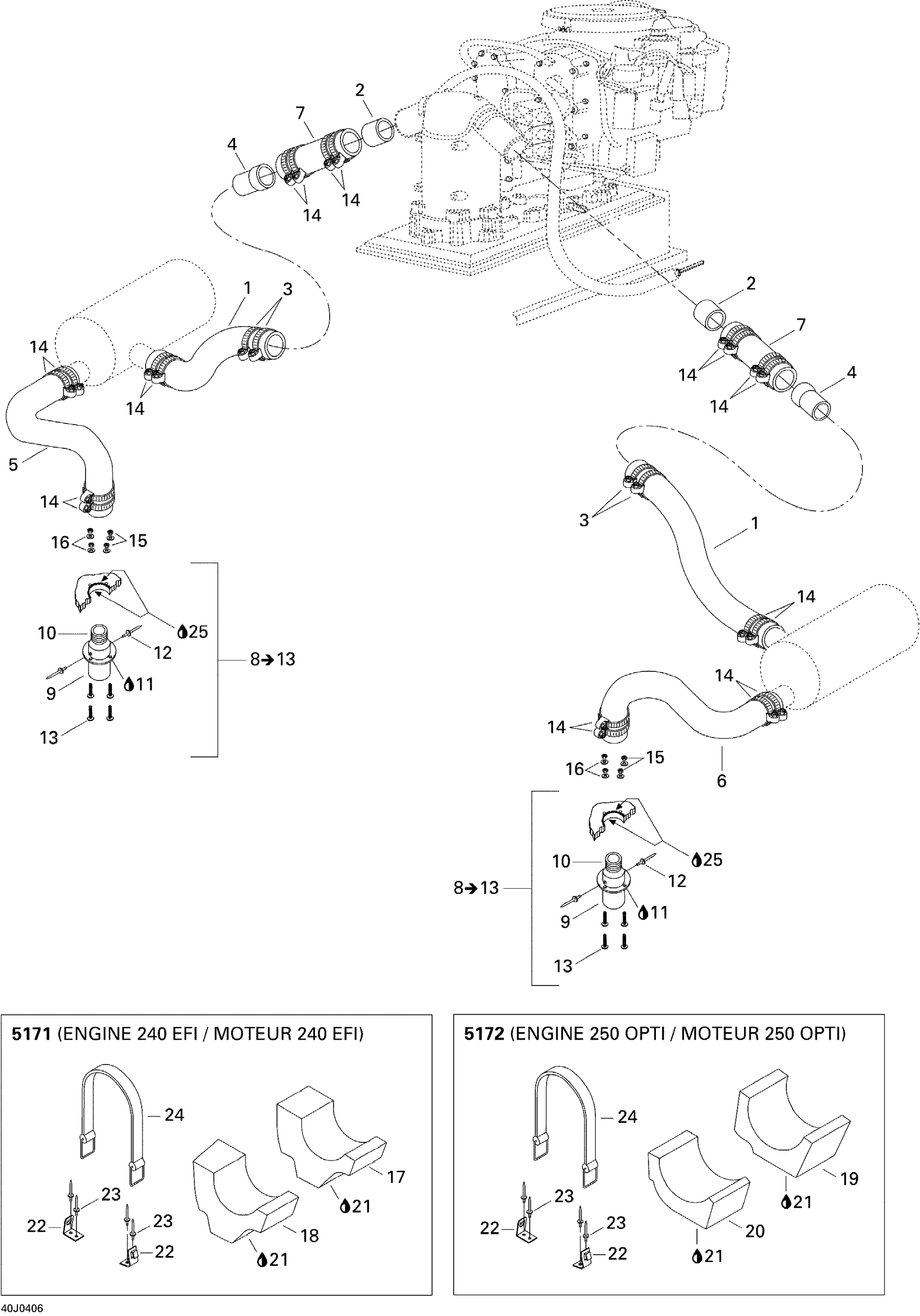

Sea-doo Challenger 2000 Exhaust Diagram
#
Description
Price
1
Exhaust Hose | 5171 (240 EFI)
204340406
Unavailable
Exhaust Hose
204340408
Unavailable
2
Exhaust Spacer
204340403
Unavailable
3
Tridon Clamp
293650064
Unavailable
4
Exhaust Adaptor
204340402
Unavailable
5
Exhaust Hose | 5171 (240 EFI)
204340290
Unavailable
Exhaust Hose
204340299
Unavailable
6
Exhaust Hose | 5171 (240 EFI)
204340291
Unavailable
Exhaust Hose
204340299
Unavailable
7
Exhaust Hose, Meter
204340256
Unavailable
8
Exhaust Outlet Ass’Y | Includes 7 to 10
204340322
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Exhaust Outlet
204340229
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Pop Rivet 3/16"
293150043
Unavailable
13
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
14
Tridon Clamp
293650112
Unavailable
15
Hex. Elastic Stop Nut M6
232561600
Unavailable
16
Stainless Flat Washer M6
234061600
Unavailable
17
RH Muffler Support | 5171 (240 EFI)
204340219
Unavailable
LH Muffler Support | 5171 (240 EFI)
204340218
Unavailable
18
RH Muffler Support | 5171 (240 EFI)
204340221
Unavailable
LH Muffler Support | 5171 (240 EFI)
204340218
Unavailable
19
Outer Muffler Support, Port Side
204340369
Unavailable
20
Inner Muffler Support
204340383
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Strap Clip 90°
204060017
Unavailable
23
Pop Rivet 3/16"
293150088
Unavailable
24
STRAP - Call your local BRP dealership
293850022
Unavailable
25
Silicone Sealant 51388, 300 ml
296000309
Unavailable
