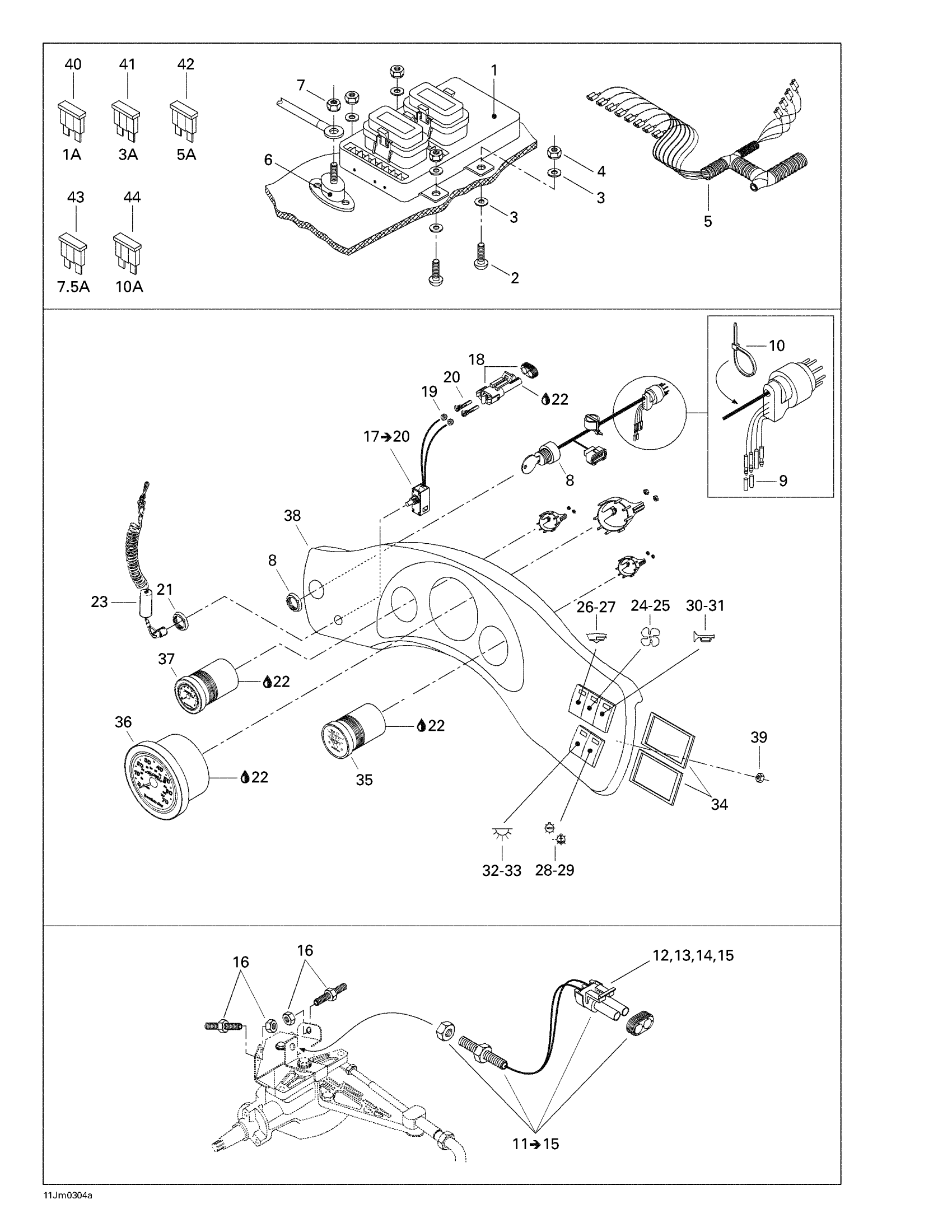

Sea-doo Challenger 1800, 5774/5775, 2003 Electrical Accessories 1 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

2

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

3

Flat Washer M6, Stainless

234062600

$0.77

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Main Harness, Challenger 1800

204470834

Unavailable

6

Ground Post

204470715

Unavailable

7

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

8

Instrumentation Harness | CHALLENGER 1800 (5774).

204470630

Unavailable

9

RUBBER CAP - Call your local BRP dealership

204130033

Unavailable

10

Tie Wrap 94 mm | 4X4

293750001

$1.03

11

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

12

Female Terminal Housing

204470634

Unavailable

13

Terminal Support

204470635

Unavailable

14

Wire Seal

204470641

Unavailable

15

Female Terminal

278001481

$3.49

16

Low Speed Control Actuator

204470632

$42.99

17

Safety Switch | Includes 17 - 20.

204470463

Unavailable

18

Male Connector, 2 Circuits

278000220

$15.49

19

Wire Seal

278000218

$4.39

20

Female Terminal

278000223

$3.19

21

Safety Switch Nut

278000099

Unavailable

22

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

23

Safety Lanyard

278001431

$47.49

24

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

25

Gasket

204470132

Unavailable

26

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

27

Gasket

204470132

Unavailable

28

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

29

Gasket

204470132

Unavailable

30

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

31

Gasket

204470132

Unavailable

32

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

33

Gasket

204470132

Unavailable

34

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

35

Oil/Fuel Gauge

204470806

Unavailable

36

Speedometer Gauge

204470805

Unavailable

37

Tachometer Gauge

204470807

Unavailable

38

Fascia

204470767

Unavailable

39

Hex. Elastic Nut M8

232581600

$1.48

40

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

41

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

42

Fuse, 5 Amperes | CE

278000344

$3.28

43

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

44

Fuse, 10 Amperes | North America

278001197

$2.21
