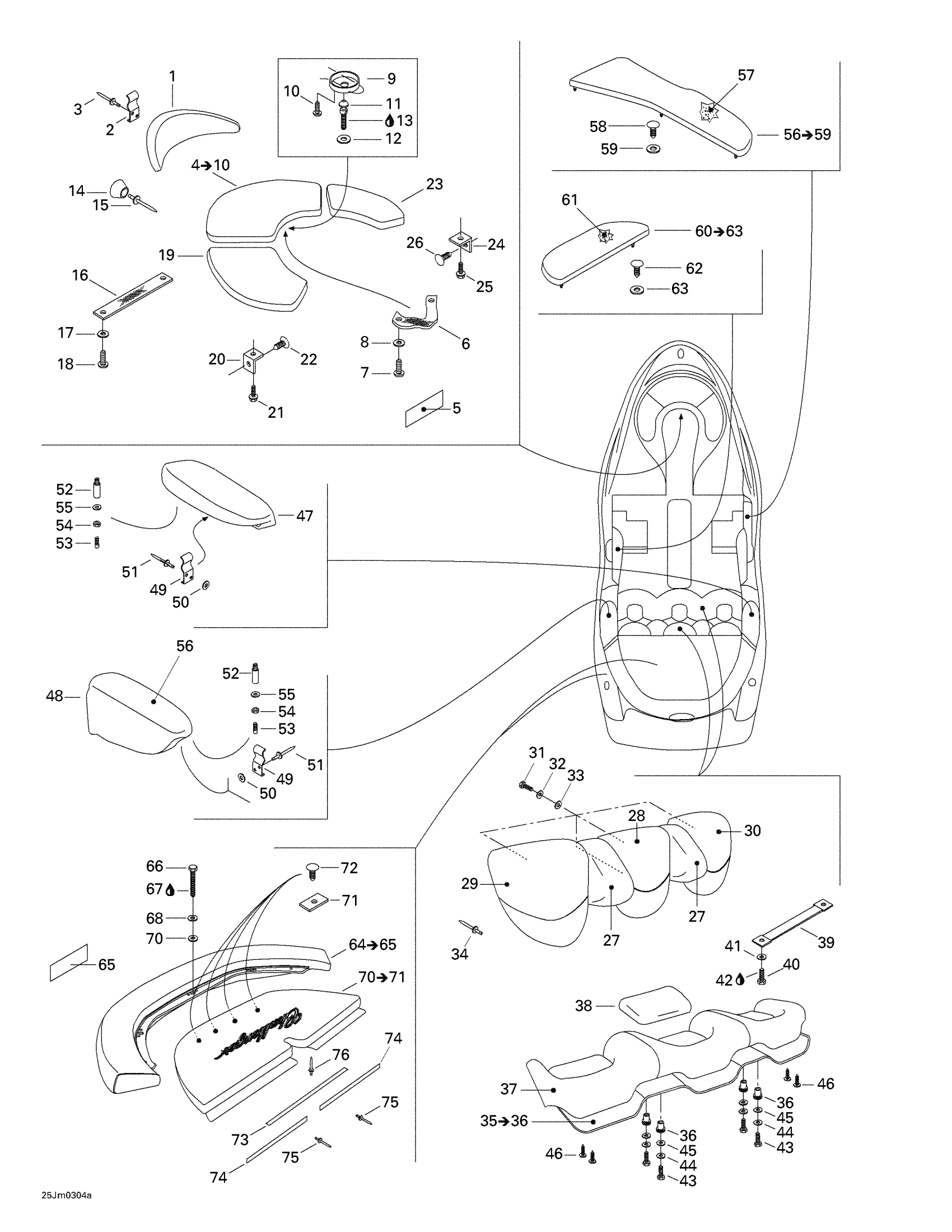

Sea-doo Challenger 1800, 5774/5775, 2003 Seat (front And Rear) Diagram

#

Description
Price

1

Front Backrest Ass'y

204612175

Unavailable

2

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

3

Pop Rivet 3/16"

293150043

$2.09

4

Center Front Seat Ass'y | Includes 4 to 10

204612411

Unavailable

5

Staple Cover, Meter

204610184

Unavailable

6

Passenger Strap

293000060

Unavailable

7

Screw K40 X 10

241140060

$1.48

8

Flat Washer 4 mm, Stainless

234042600

$1.15

9

Front Seat Latch

204610178

Unavailable

10

Socket Head Screw M4 X 16

205441660

$1.47

11

Seat Stud

204610207

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Loctite 243, 10 ml

293800060

$21.49

14

Rubber Stopper

293830043

Unavailable

15

Pop Rivet 3/16"

293150013

$1.37

16

Strap

204610963

Unavailable

17

Flat Washer 4 mm, Stainless

234042600

$1.15

18

Screw K40 X 10

241140060

$1.48

19

LH Front Seat Ass'y

204612413

Unavailable

20

SEAT BRACKET - Call your local BRP dealership

204610100

Unavailable

21

Screw K40 X 10

241140060

$1.48

22

Black, Dart

293730006

$0.99

23

RH Front Seat Ass'y

204612415

Unavailable

24

SEAT BRACKET - Call your local BRP dealership

204610100

Unavailable

25

Screw K40 X 10

241140060

$1.48

26

Black, Dart

293730006

$0.99

27

Bump Cover, Ultraviolet Pearl

204612204

Unavailable

28

Backrest Cover, Silver Metallic

204612205

Unavailable

29

RH Backrest Cover, Silver Metallic

204612206

Unavailable

30

LH Backrest Cover, Silver Metallic

204612207

Unavailable

31

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

32

Flat Washer M6, Stainless

234062600

$0.77

33

Flat Washer 8 mm, Stainless

234082600

$2.43

34

RIVET - Call your local BRP dealership

293150065

Unavailable

35

Rear Seat Base | Includes 35 - 36.

204610303

Unavailable

36

Anchor Washer

204100005

Unavailable

37

Rear Seat Cover, Off White

204612209

Unavailable

38

Rear Seat Cushion, Silver Metallic

204612210

Unavailable

39

Rear Seat Strap, Off White

204612212

Unavailable

40

Hex. Screw M6 X 16

207161660

$1.59

41

Flat Washer M6, Stainless

234062600

$0.77

42

Loctite 243, 10 ml

293800060

$21.49

43

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

44

Flat Washer M6, Stainless

234062600

$0.77

45

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

46

Dart

293730021

$7.79

47

RH Armrest Ass'y

204612213

Unavailable

48

LH Armrest Ass'y

204612215

Unavailable

49

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

50

Stainless Flat Washer M6

234061600

$0.33

51

Pop Rivet 3/16"

293150043

$2.09

52

Threaded Rod M5, Scotch Grip

204130015

Unavailable

53

Socket Set Screw M5 X 40, Scotch Grip

206254069

Unavailable

54

Hex. Elastic Nut M5 | X

232551600

$1.15

55

Flat Washer 5 mm, Stainless

234052600

$0.77

56

RH Elbow Padding Ass'y | Includes 57 to 60

204612217

Unavailable

57

Neoprene Foam

204610121

Unavailable

58

Black, Dart

293730006

$0.99

59

Flat Washer M6, Stainless

234062600

$0.77

60

LH Elbow Padding Ass'y | Includes 61 to 64

204612219

Unavailable

61

Neoprene Foam

204610123

Unavailable

62

Black, Dart

293730006

$0.99

63

Flat Washer M6, Stainless

234062600

$0.77

64

Rear Spoiler Ass'y | Includes 65 to 66

204612233

Unavailable

65

Staple Cover, Meter

204610184

Unavailable

66

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

67

Loctite 243, 10 ml

293800060

$21.49

68

Flat Washer M6, Stainless

234062600

$0.77

69

Flat Washer 10 mm, Stainless

234002600

$2.22

70

Platform Ass'y | Includes 70 - 71.

204612235

Unavailable

71

Strap

204610194

Unavailable

72

Black, Dart

293730006

$0.99

73

Velcro 25 Mm X 940 Mm

204611298

Unavailable

74

Velcro 25 Mm X 635 Mm

204611299

Unavailable

75

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

76

Pop Rivet 3/16"

293150008

$0.50
