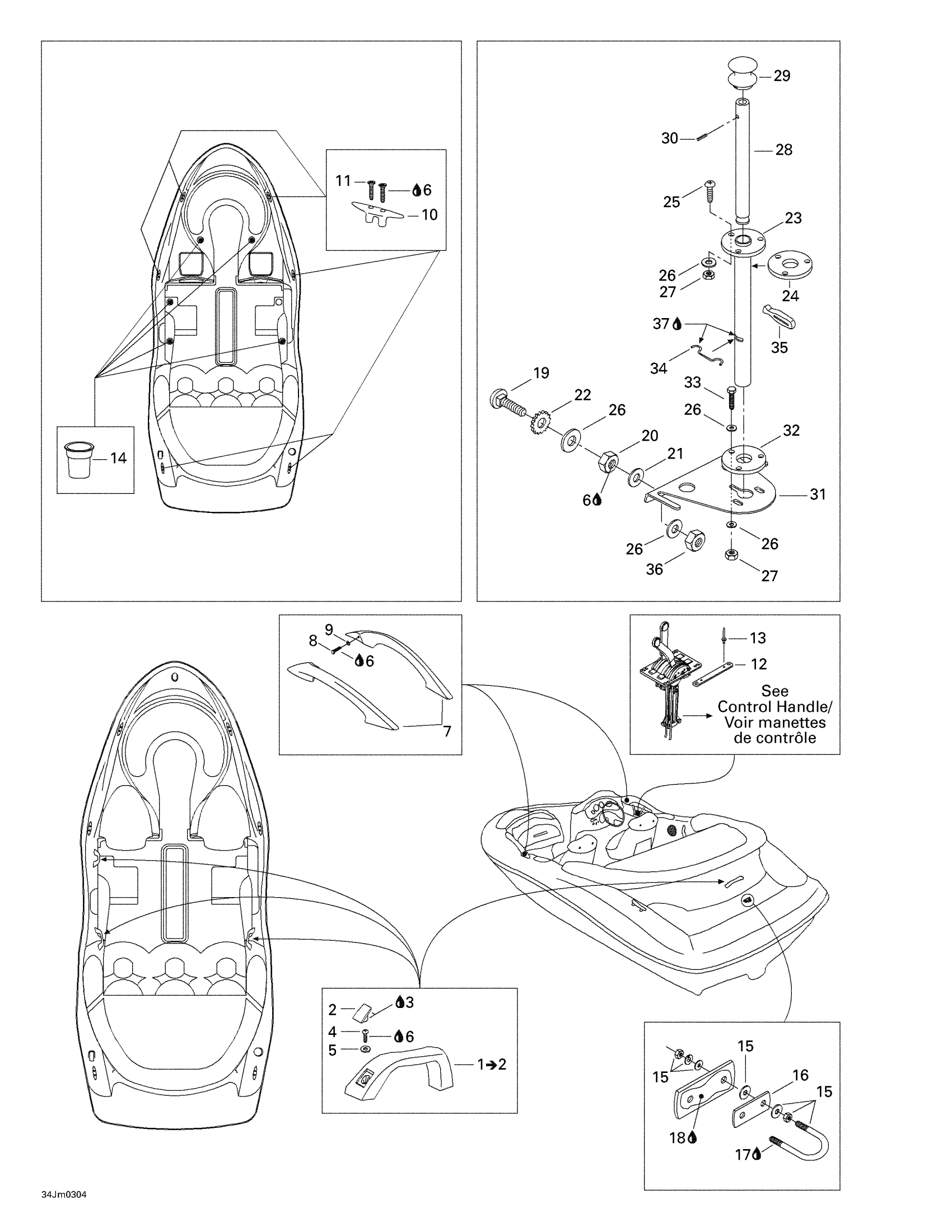

Sea-doo Challenger 1800, 5774/5775, 2003 09- Body And Accessories 4 Diagram

#

Description
Price

1

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

2

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

3

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

4

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

5

Stainless Flat Washer M6

234061600

$0.33

6

Loctite 243, 10 ml

293800060

$21.49

7

RH Lateral Grip Handle

204070590

Unavailable

LH Lateral Grip Handle

204070591

Unavailable

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

11

Socket Head Screw M6 X 70

205367060

Unavailable

12

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

13

Pop Rivet 3/16"

293150013

$1.37

14

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

15

U-Bolt

204070418

Unavailable

16

Finition Plate

204070219

Unavailable

17

Loctite 271, 10 ml

293800005

$26.99

18

Silicone Sealant 51388, 300 ml

296000309

$36.99

19

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

20

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

21

Stainless, Flat Washer 8 mm

234081600

$0.55

22

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

23

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

24

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

25

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

29

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

30

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

31

Fixation Plate

291001059

Unavailable

32

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

33

Hex. Forming Screw M6 X 20

207162060

$1.29

34

SPRING - Call your local BRP dealership

291001205

Unavailable

35

Windshield Latch

570023800

$4.49

36

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

37

Synthetic Grease, 400 G

293550010

Unavailable
