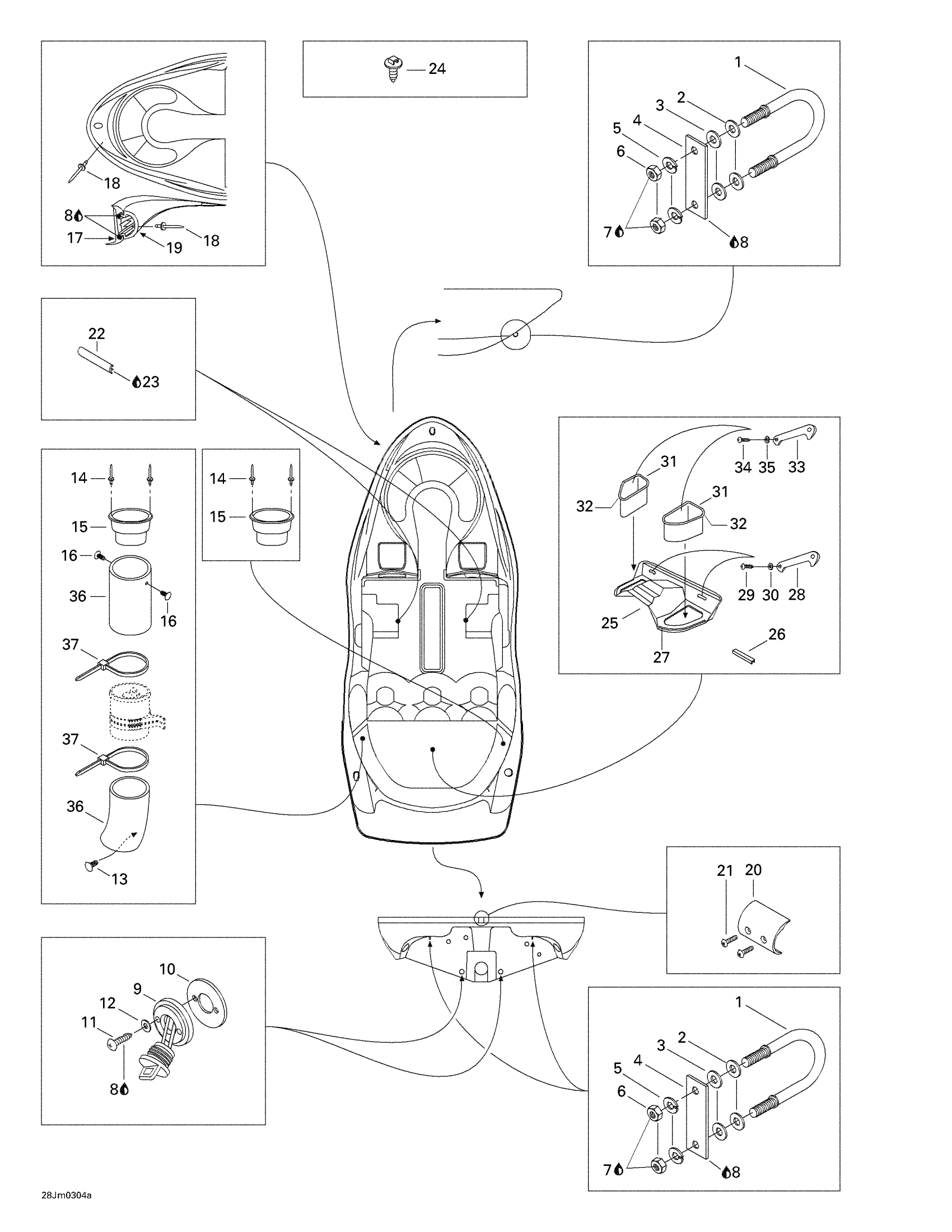

Sea-doo Challenger 1800, 5774/5775, 2003 Body And Accessories 1 Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Flat Washer M8.5 x 18

293050001

$3.07

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Hex. Nut M8

232081600

$1.47

7

Loctite 271, 10 ml

293800005

$26.99

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Drain Plug

292000187

$14.49

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

12

Flat Washer 4 mm, Stainless

234041600

$1.15

13

Black, Dart

293730006

$0.99

14

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

15

VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.

204050803

Unavailable

16

Black, Dart

293730006

$0.99

17

Bumper, Metallic Pewter

291000903

Unavailable

18

Pop Rivet 3/16"

293150013

$1.37

19

Bumper Trim, Metallic Pewter

291000904

Unavailable

20

BUMPER COVER - Call your local BRP dealership

291000905

Unavailable

21

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

22

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

23

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

24

Mount Dart

293730040

$1.04

25

Accessories Cover

204050422

Unavailable

26

Trim, Meter

204050213

Unavailable

27

Seal Tray 1000Mm Long

219704368

$13.99

28

Black, Handle - Call your local BRP dealership

204050159

Unavailable

29

Hex. Flange Screw K40 X 16

241141660

$1.48

30

Flat Washer 4 mm, Stainless

234042600

$1.15

31

LH Storage Basket

204050210

Unavailable

RH Storage Basket

204050212

Unavailable

32

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

33

Black, Handle - Call your local BRP dealership

204050159

Unavailable

34

Hex. Flange Screw K40 X 16

241141660

$1.48

35

Flat Washer 4 mm, Stainless

234042600

$1.15

36

Was 204050122 Vent Hose 4"

219704358

$25.99

37

Tie Wrap 368 mm

293750008

$1.04
