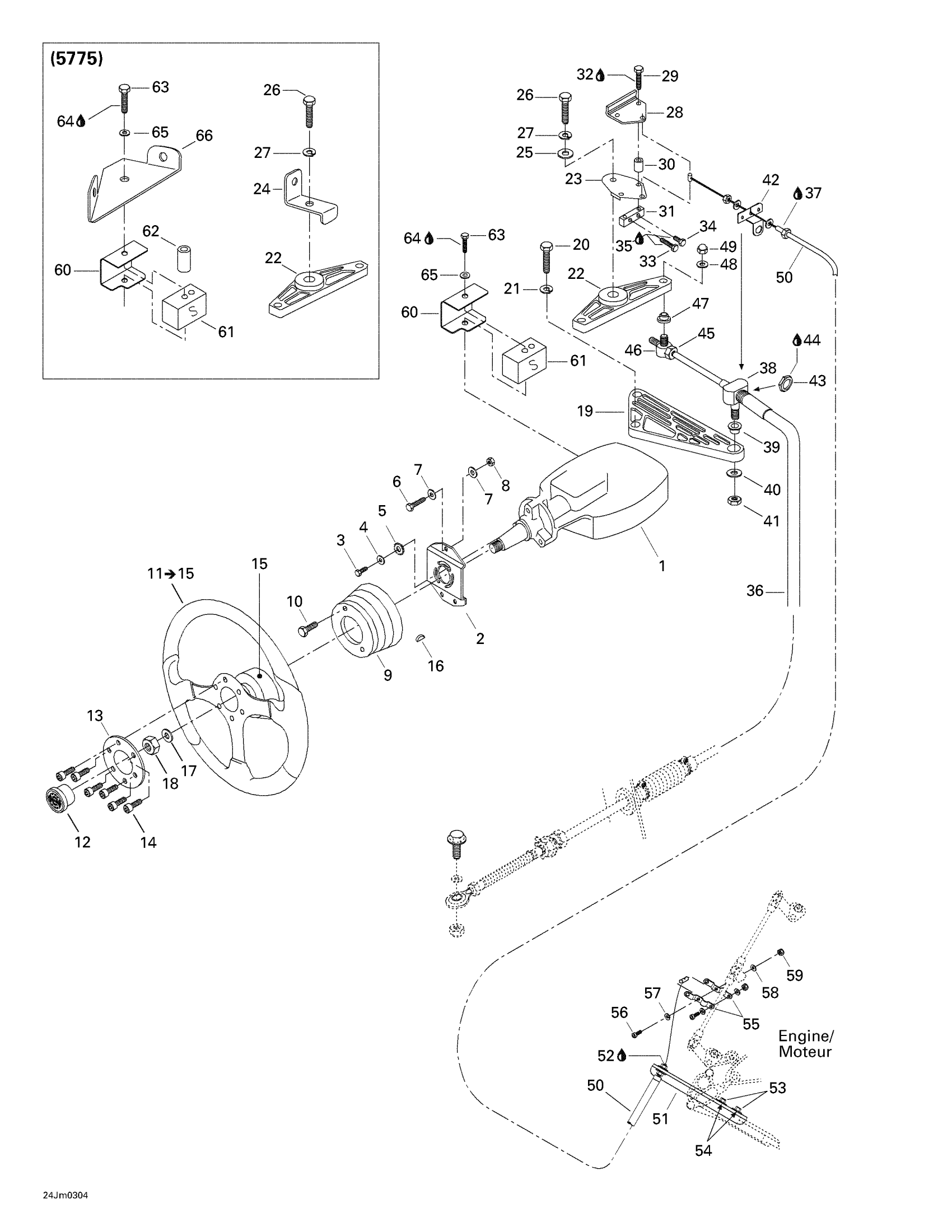

Sea-doo Challenger 1800, 5774/5775, 2003 Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Support

277000383

Unavailable

3

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.77

5

Serrated Lock Washer 8 mm

234481608

$1.15

6

Hex. Screw M6 X 30

207163060

$1.48

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

10

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

11

Steering | Includes 11 to 16

204390170

Unavailable

12

Center Cap

204390327

Unavailable

13

Center Ring

204390328

Unavailable

14

SCREW PACK - Call your local BRP dealership

204390329

Unavailable

15

Nylon Hub

204390330

Unavailable

16

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

17

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

18

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

19

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

20

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

21

Lock Washer 1/4”

211200025

$1.29

22

ARM - Call your local BRP dealership

204390040

Unavailable

23

Lower Clip | CHALLENGER 1800 (5774).

204390283

Unavailable

24

Lower Clip

204390271

Unavailable

25

Spacer

204390057

Unavailable

26

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

27

Lock Washer 1/4”

211200025

$1.29

28

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

29

Hex. Screw M6 X 25

207162560

$1.47

30

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

31

Adjustment Block

204390056

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Hex. Screw M5 X 35

207153560

Unavailable

34

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

STEERING CABLE - Call your local BRP dealership

204390212

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

39

Flanged Bushing

293350014

$12.99

40

Flat Washer 10 mm, Stainless

234001600

$1.15

41

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

42

Cable Support | CHALLENGER 1800 (5774).

204390232

Unavailable

43

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49

45

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

46

PIVOT - Call your local BRP dealership

277000456

Unavailable

47

BUSHING - Call your local BRP dealership

293350012

Unavailable

48

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

49

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

50

Low Speed Cable Control | CHALLENGER 1800 (5774).

204390236

Unavailable

51

Cable Support | CHALLENGER 1800 (5774).

204390233

Unavailable

52

Loctite 243, 10 ml

293800060

$21.49

53

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

54

Helical Lock Washer M5

234151601

$1.15

55

Cable Attachment | CHALLENGER 1800 (5774).

204390234

Unavailable

56

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

57

Helical Lock Washer M5

234151601

$1.15

58

Flat Washer M5, Stainless

234051600

$0.77

59

Hex. Elastic Nut M5 | X

232551600

$1.15

60

Bumper Support

204390245

Unavailable

61

Bumper

204390246

Unavailable

62

Bushing

204130004

Unavailable

63

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

64

Loctite 243, 10 ml

293800060

$21.49

65

Flat Washer M6, Stainless

234062600

$0.77

66

Cam Switch

204390339

Unavailable
