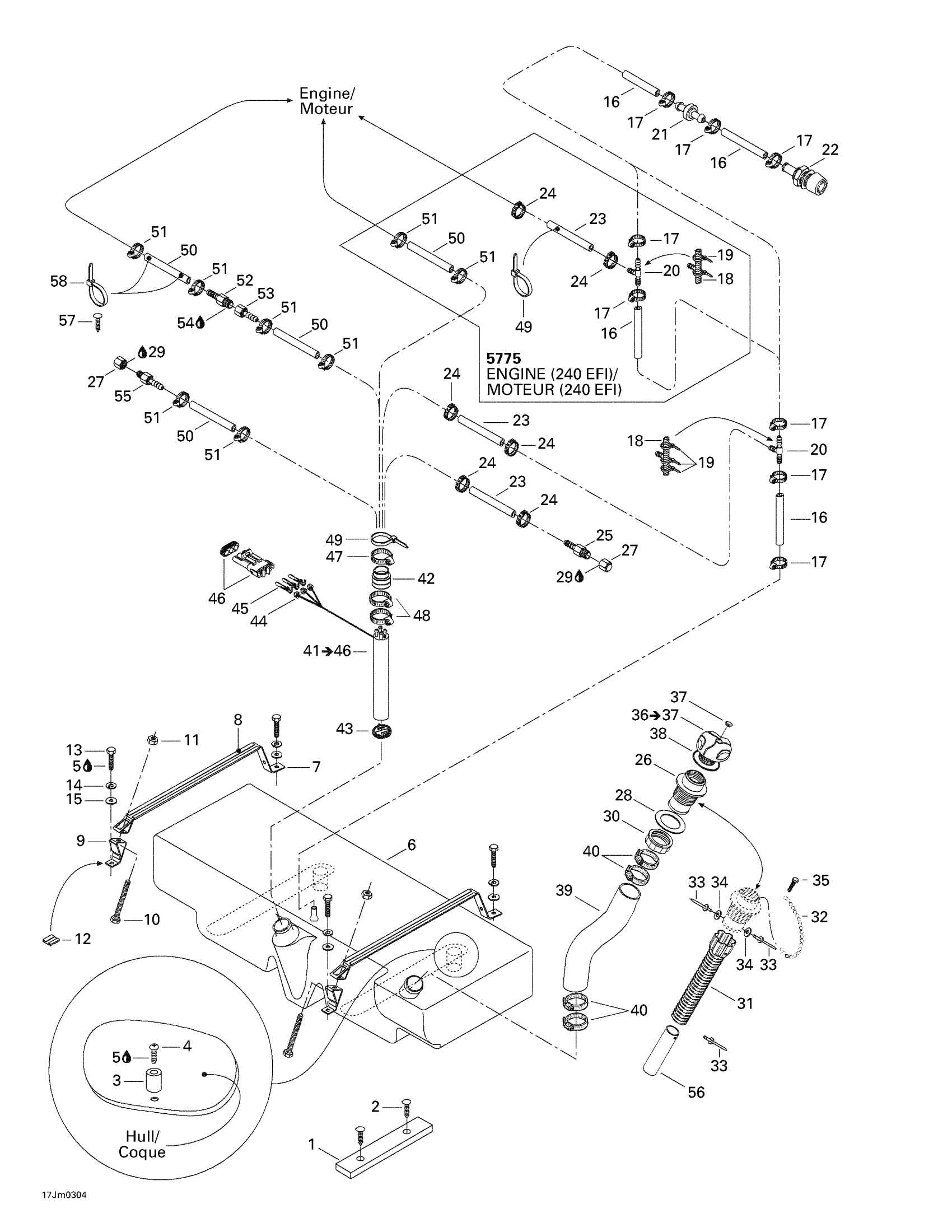

Sea-doo Challenger 1800, 5774/5775, 2003 Fuel System Diagram

#

Description
Price

1

Rubber Pad

204060701

Unavailable

2

Black, Dart

293730006

$0.99

3

Rubber Bumper

204560039

Unavailable

4

Phillips Screw M5 X 35

208653560

$2.22

5

Loctite 271, 10 ml

293800005

$26.99

6

Fuel Tank, Plastic

204560073

Unavailable

7

Fuel Tank Strap

204560189

Unavailable

8

Protector Pad

204560037

Unavailable

9

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

10

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

11

Hex. Elastic Nut M8

232581600

$1.48

12

Protecteur Pad

204560027

Unavailable

13

Hex. Screw M8 X 30

207183060

$1.58

14

Lock Washer 8 mm, Stainless

234181601

$0.55

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

17

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

T-Fitting

204560038

Unavailable

21

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

22

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

23

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

24

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

25

COUPLER - Call your local BRP dealership

204560265

Unavailable

26

Filler Neck

275500247

Unavailable

27

Pipe Cap

204560263

Unavailable

28

Gasket

293250029

$14.82

29

Was 293800013 Loctite 56765

219704454

$65.99

30

Filler Neck Nut, Fuel

211100012

$14.22

31

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

32

Oil Cap Chain

275500015

Unavailable

33

Rivet 1/8”

293150057

Unavailable

34

Flat Washer M3, Stainless

234032600

$0.55

35

Screw K40 X 10

241140060

$1.48

36

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

37

Black, Snap Cap

293000034

$9.39

38

Gasket

293250017

Unavailable

39

Filler Neck Hose

204560033

Unavailable

40

Norma Clamp

293650081

$12.18

41

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

42

Fuel Tube Adaptor

204560066

Unavailable

43

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

44

Wire Seal

278000218

$4.39

45

Female Terminal

278000223

$3.19

46

Male Housing, 3 Circuits

278000273

$9.59

47

Norma Clamp

293650077

$7.41

48

Norma Clamp

293650081

$12.18

49

Tie-Rap 180 mm

414115200

$0.11

50

Hose 5/16”, Meter

204560177

Unavailable

51

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

52

Anti-Siphon Valve | CHALLENGER 1800 (5774).

204560122

Unavailable

53

HOSE FITTING - Call your local BRP dealership | CHALLENGER 1800 (5774).

293700038

Unavailable

54

Was 293800013 Loctite 56765

219704454

$65.99

55

Hose Fitting

204560264

Unavailable

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Black, Dart

293730006

$0.99

58

Tie-Rap 180 mm

414115200

$0.11
