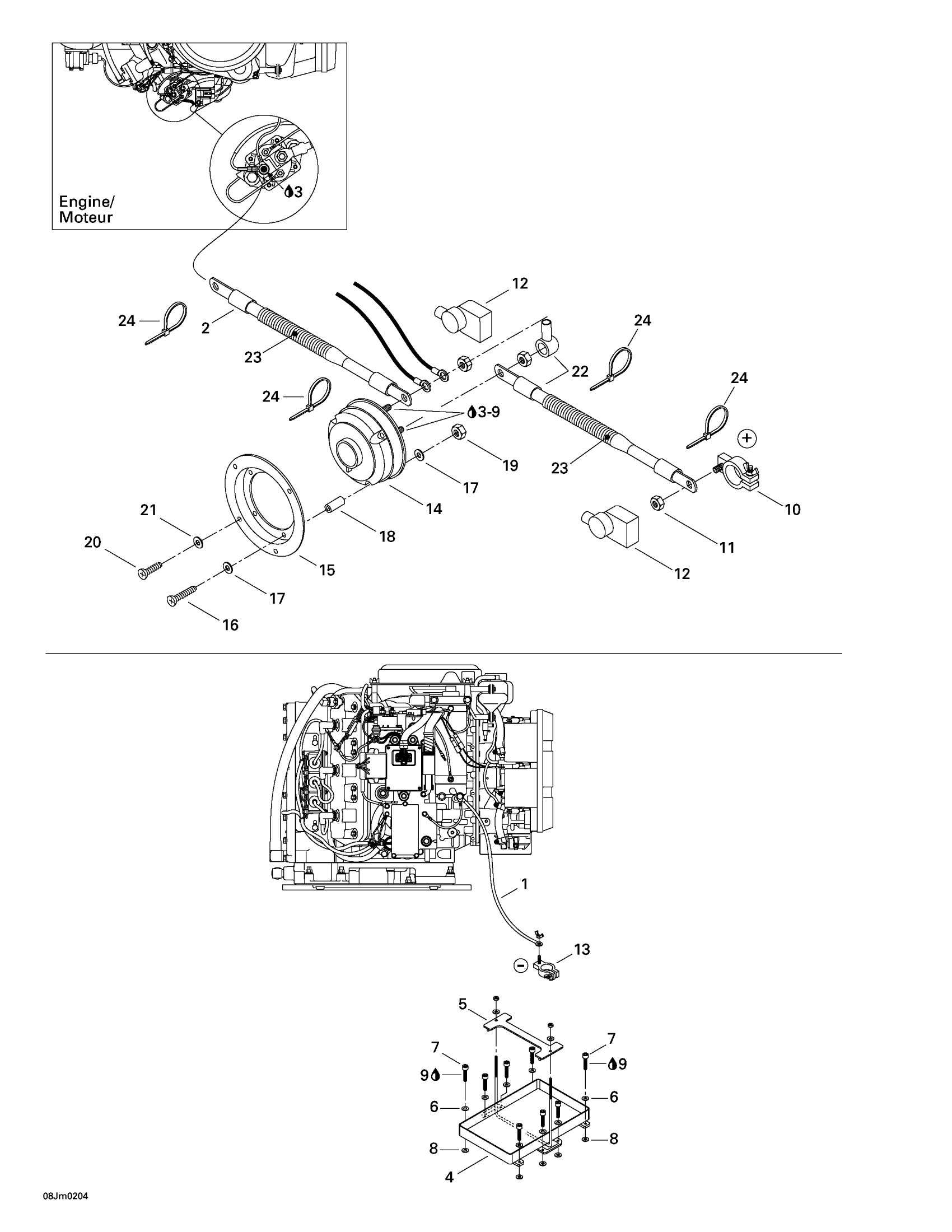

Sea-doo Challenger 1800, 5701 (210), 2002 Electrical System Diagram

#

Description
Price

1

Battery Ground Cable

204470389

Unavailable

2

Positive Cable, Red

204470386

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

5

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

6

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

7

Socket Head Screw M6 X 25

205062560

$1.69

8

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

11

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

12

Red Boot

204470388

Unavailable

13

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

14

Battery Switch

204470329

Unavailable

15

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

16

Phillips Screw M5 X 25

208652560

$3.39

17

Flat Washer M5, Stainless

234051600

$0.77

18

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

19

Hex. Elastic Nut M5 | X

232551600

$1.15

20

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

21

Flat Washer 4 mm, Stainless

234041600

$1.15

22

Positive Switch Cable

204470387

Unavailable

23

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

24

Tie Wrap 94 mm | 4X4

293750001

$1.03
