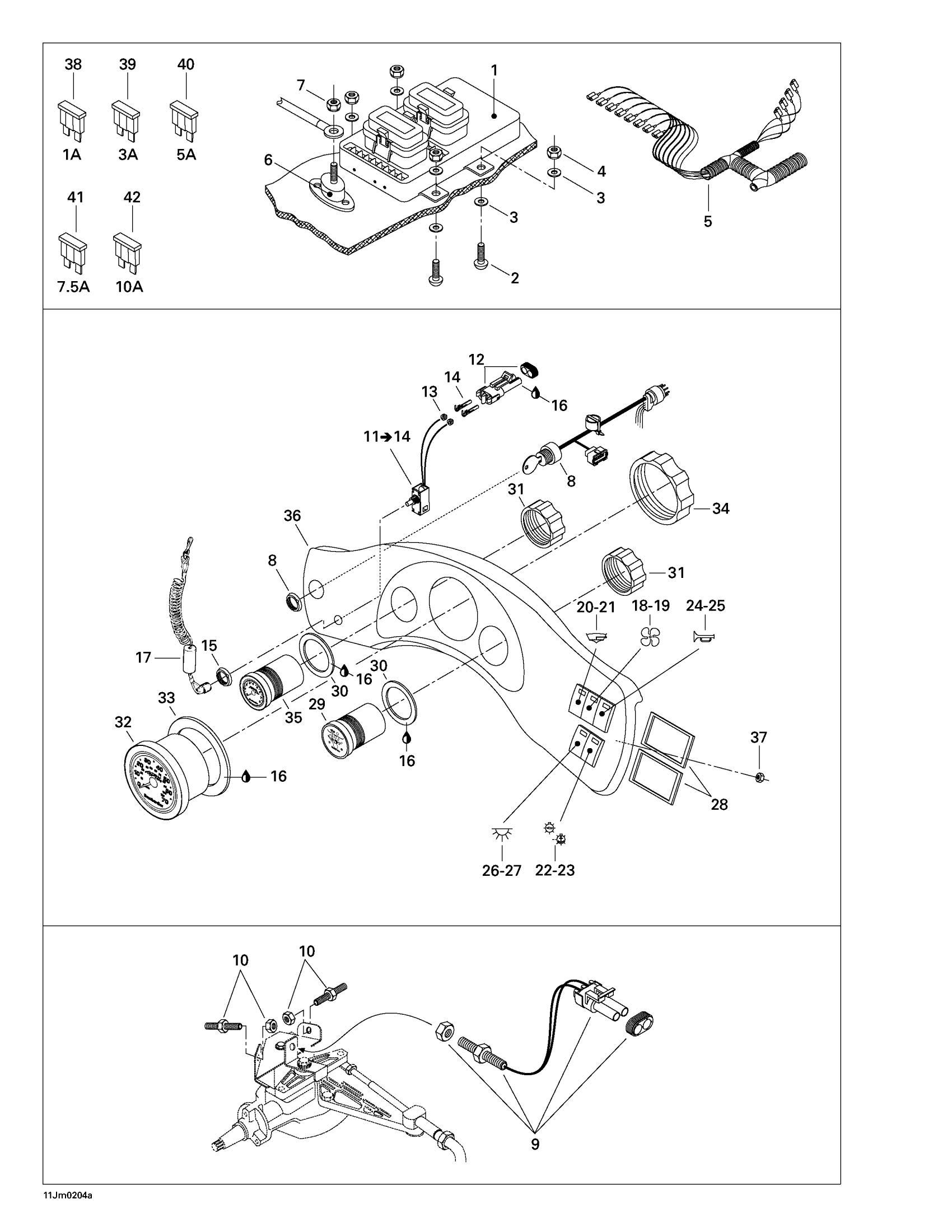

Sea-doo Challenger 1800, 5701 (210), 2002 Electrical Accessories 1 Diagram

#

Description
Price

1

Fuse Block

204470597

Unavailable

2

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

3

Flat Washer M6, Stainless

234062600

$0.77

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Harness (Accessories)

204470699

Unavailable

6

Ground Post

204470715

Unavailable

7

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

8

Instrumentation Harness | CHALLENGER 1800 (5774).

204470630

Unavailable

9

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

10

Low Speed Control Actuator

204470632

$42.99

11

Safety Switch | Includes 17 - 20.

204470463

Unavailable

12

Male Connector, 2 Circuits

278000220

$15.49

13

Wire Seal

278000218

$4.39

14

Female Terminal

278000223

$3.19

15

Safety Switch Nut

278000099

Unavailable

16

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

17

Safety Lanyard

278001431

$47.49

18

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

19

Gasket

204470132

Unavailable

20

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

21

Gasket

204470132

Unavailable

22

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

23

Gasket

204470132

Unavailable

24

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

25

Gasket

204470132

Unavailable

26

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

27

Gasket

204470132

Unavailable

28

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

29

Oil/Fuel Gauge

204470391

Unavailable

30

Gasket

204470308

Unavailable

31

Gauge Nut

204470146

Unavailable

32

Speedometer Gauge

204470374

Unavailable

33

Gasket

204470309

Unavailable

34

Gauge Nut

204470171

Unavailable

35

Tachometer Gauge

204470466

Unavailable

36

Fascia

204470693

Unavailable

37

Hex. Elastic Nut M8

232581600

$1.48

38

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

39

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

40

Fuse, 5 Amperes | CE

278000344

$3.28

41

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

42

Fuse, 10 Amperes | North America

278001197

$2.21
