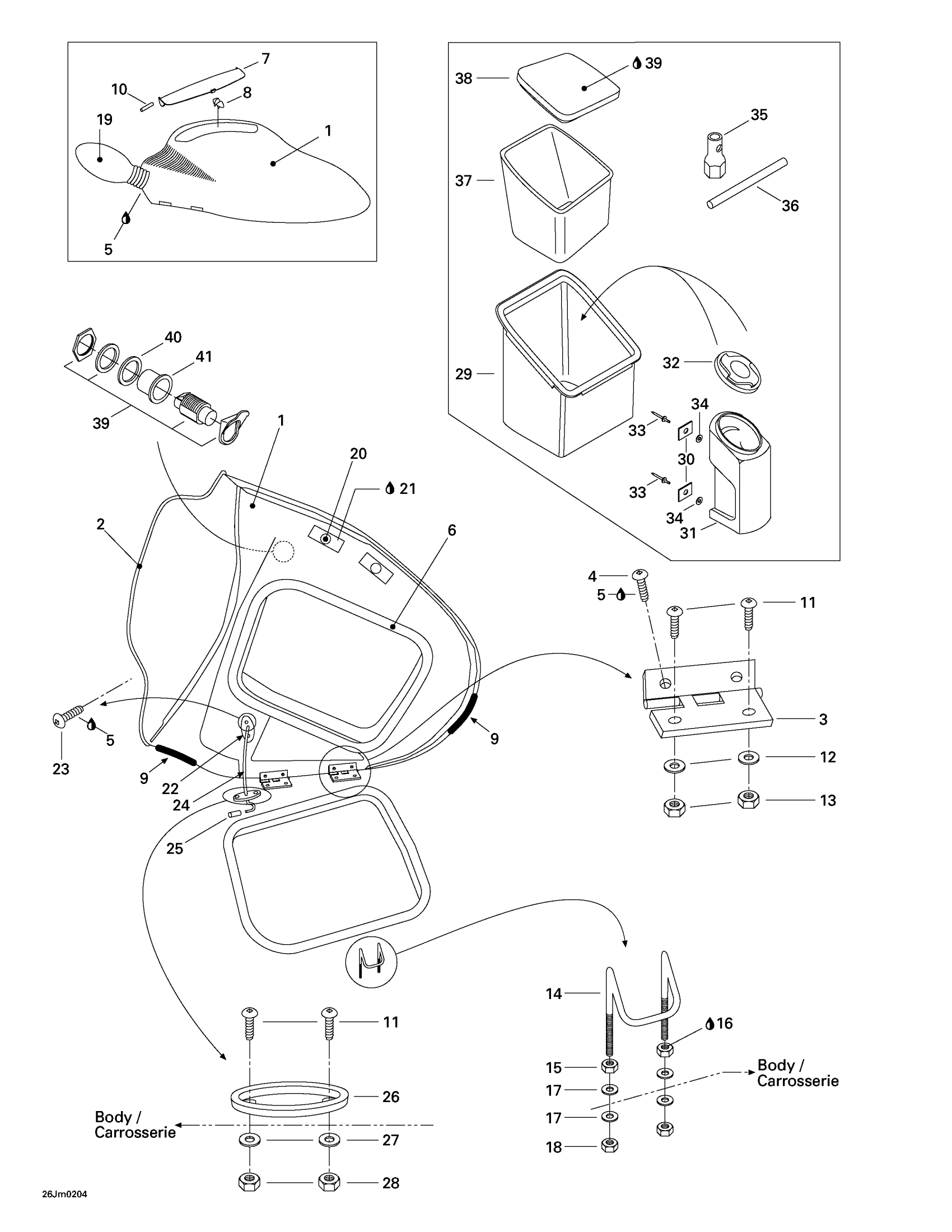

Sea-doo Challenger 1800, 5701 (210), 2002 Front Storage Compartment Diagram

#

Description
Price

1

RH Windshield | Includes 1 to 2

204620217

Unavailable

LH Windshield | Includes 1 to 2

204620218

Unavailable

2

Trim, Meter

204620100

Unavailable

3

Console Hinge

204620005

Unavailable

4

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

5

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

6

Seal Tray 1000Mm Long

219704368

$13.99

7

DEFLECTOR - Call your local BRP dealership

204073803

$63.99

8

REAR STOPPER - Call your local BRP dealership

204073804

Unavailable

9

Waterproof Seal, Meter

204620117

Unavailable

10

ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership

204620126

Unavailable

11

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

12

Flat Washer 4 mm, Stainless

234042600

$1.15

13

Elastic Stop Nut M4

232541600

$1.15

14

Hook

204620151

Unavailable

15

Hex. Nut M6

232061600

$1.15

16

Loctite 243, 10 ml

293800060

$21.49

17

Flat Washer M6, Stainless

234062600

$0.77

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Black, RH Mirror

204620026

Unavailable

20

RUBBER STOPPER - Call your local BRP dealership

204620295

Unavailable

21

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

22

ROD HOLDER - Call your local BRP dealership

204620028

Unavailable

23

PHILLIPS SCREW M4 X 16 - Call your local BRP dealership

208441660

Unavailable

24

SUPPORT ROD - Call your local BRP dealership

204620219

Unavailable

25

CAP - Call your local BRP dealership

204620044

Unavailable

26

ROD STOP - Call your local BRP dealership

204620030

Unavailable

27

Flat Washer 4 mm, Stainless

234042600

$1.15

28

Elastic Stop Nut M4

232541600

$1.15

29

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

30

GASKET - Call your local BRP dealership

293250037

Unavailable

31

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

32

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

33

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

34

Flat Washer M3, Stainless

234032600

$0.55

35

Socket Wrench

204630050

Unavailable

36

Steel Bar

204630051

Unavailable

37

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

38

Icebox Foam Cover

204630013

Unavailable

39

Silicone Sealant 51388, 300 ml

296000309

$36.99

39

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

40

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

41

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable
