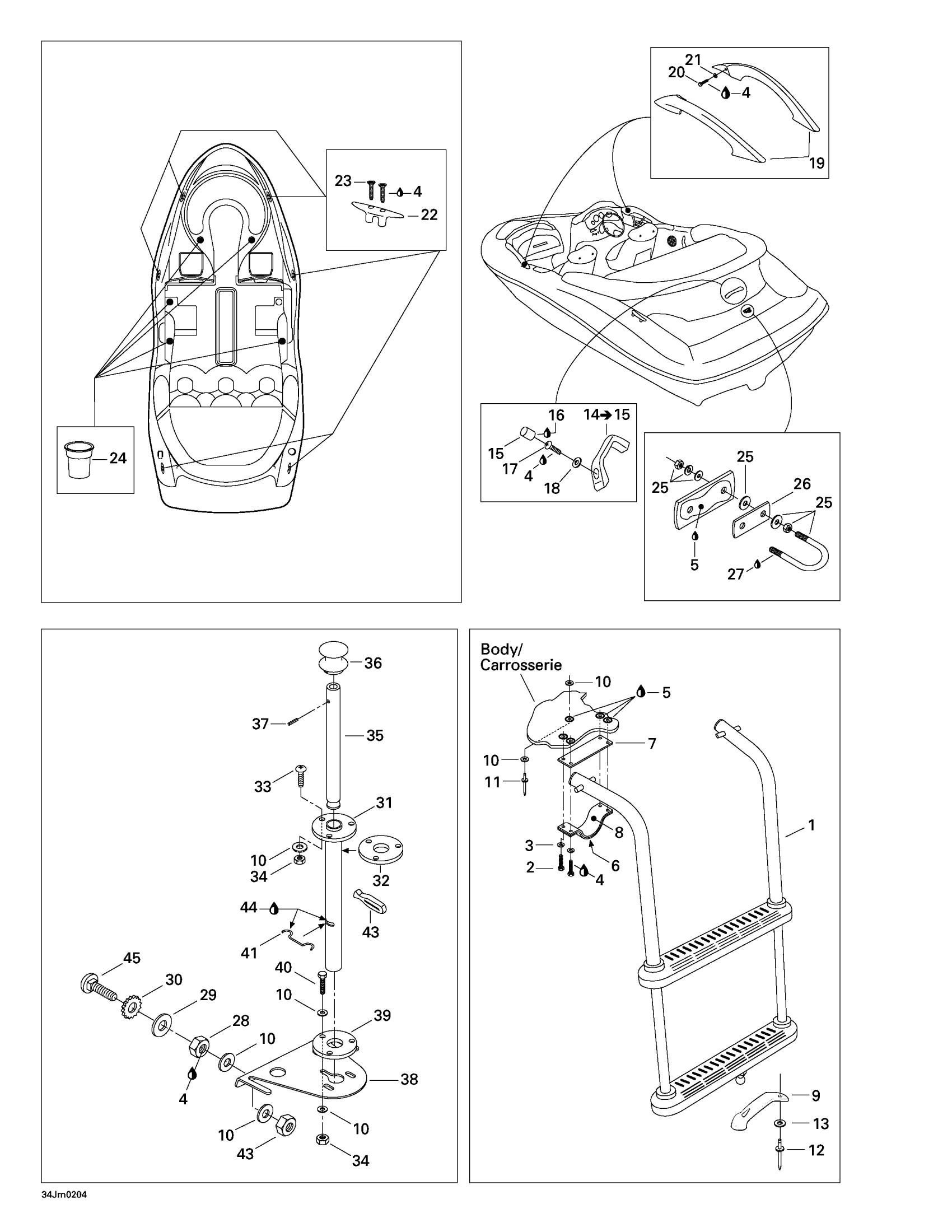

Sea-doo Challenger 1800, 5701 (210), 2002 09- Body And Accessories 2 Diagram

#

Description
Price

1

Ladder Ass'y

204060612

Unavailable

2

Hex. Screw M6 X 35

207163560

$1.49

3

Lock Washer Helical M6

234161601

$1.15

4

Loctite 243, 10 ml

293800060

$21.49

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

7

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

8

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

9

Hood Latch

570027100

$13.49

10

Flat Washer M6, Stainless

234062600

$0.77

11

Pop Rivet 3/16"

293150043

$2.09

12

Pop Rivet 3/16"

293150013

$1.37

13

Flat Washer 5 mm, Stainless

234052600

$0.77

14

Grip Handle | Includes 6 to 7

204070045

Unavailable

15

Snap Cap

204070056

Unavailable

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

17

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

18

Stainless Flat Washer M6

234061600

$0.33

19

RH Lateral Grip Handle

204070590

Unavailable

LH Lateral Grip Handle

204070591

Unavailable

20

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

21

Flat Washer 8 mm, Stainless

234082600

$2.43

22

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

23

Socket Head Screw M6 x 55

205365560

Unavailable

24

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

25

U-Bolt

204070418

Unavailable

26

Finition Plate

204070219

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

31

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

32

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

33

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

36

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

37

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

38

Fixation Plate

291001059

Unavailable

39

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

40

Hex. Forming Screw M6 X 20

207162060

$1.29

41

SPRING - Call your local BRP dealership

291001205

Unavailable

42

Windshield Latch

570023800

$4.49

43

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

44

Synthetic Grease, 400 G

293550010

Unavailable

45

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable
