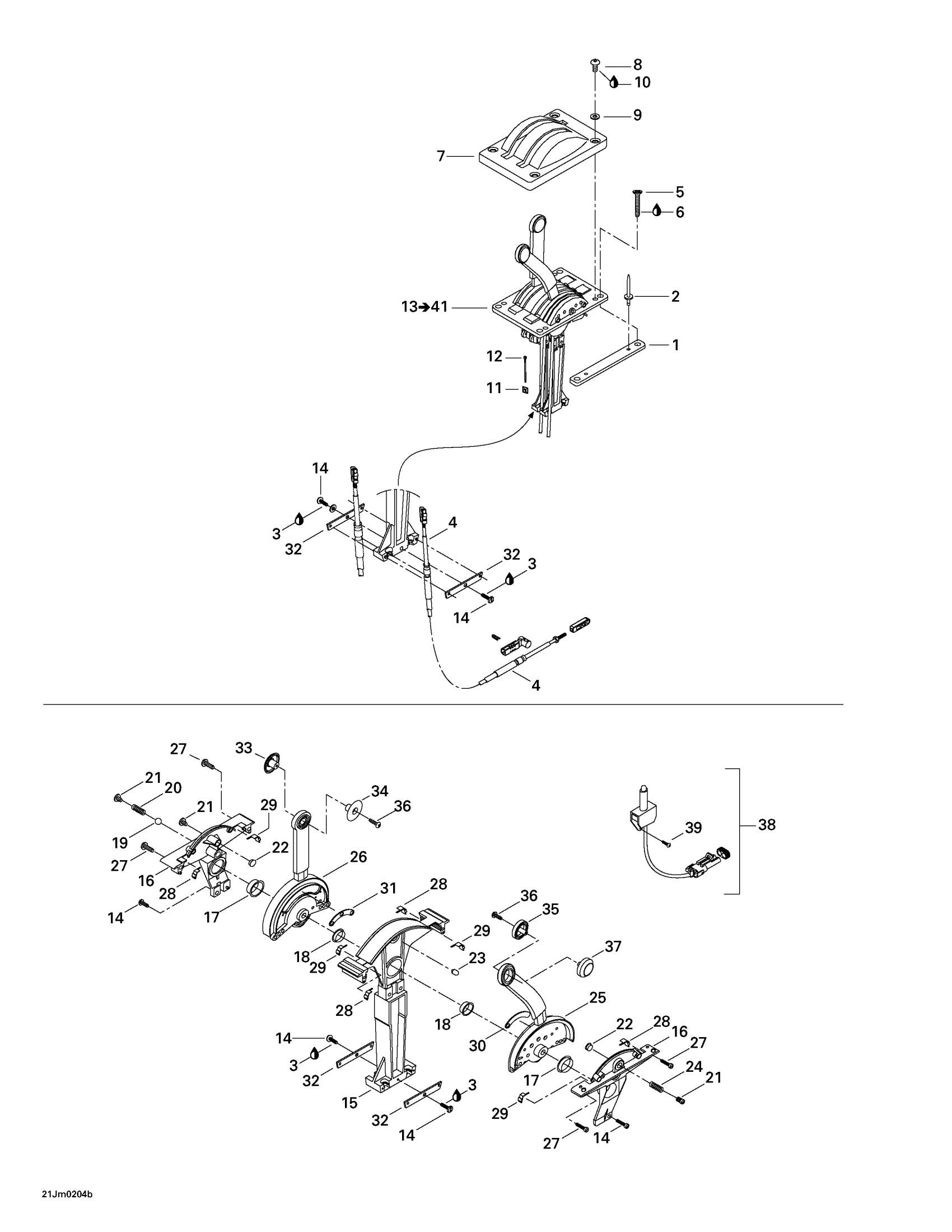

Sea-doo Challenger 1800, 5701 (210), 2002 05- Control Handle Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.37

3

Loctite 243, 10 ml

293800060

$21.49

4

Throttle Cable

204390211

Unavailable

5

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

6

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

7

Control Cover

204390123

Unavailable

8

Phillips Screw M4 X 10

208641060

$1.01

9

Flat Washer 4 mm

234040600

$0.55

10

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

11

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Ultraflex Control Ass'y | Includes 18 to 46

204390377

$1.00

14

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

15

LH Frame

204390224

Unavailable

16

Half-Case

277000703

Unavailable

17

BUSHING - Call your local BRP dealership

277000397

Unavailable

18

BUSHING - Call your local BRP dealership

277000398

Unavailable

19

BALL - Call your local BRP dealership

277000399

Unavailable

20

SPRING - Call your local BRP dealership

277000400

Unavailable

21

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

22

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

23

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

24

SPRING - Call your local BRP dealership

277000401

Unavailable

25

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

26

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

27

SCREW M5 X 20 - Call your local BRP dealership

204100016

Unavailable

28

RH Water Seal

277000423

Unavailable

29

LH Water Seal

277000424

Unavailable

30

THROTTLE LEVER SPACER - Call your local BRP dealership

277000659

Unavailable

31

Shift Lever Spacer

277000408

Unavailable

32

RETAINING PLATE - Call your local BRP dealership

204390227

Unavailable

33

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

34

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

35

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

36

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

37

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

38

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

39

SCREW M3 X 6 - Call your local BRP dealership

208630660

Unavailable

40

CLEVIS L26 - Call your local BRP dealership | Not Shown

204390226

Unavailable

41

CLEVIS L25 - Call your local BRP dealership

204390225

Unavailable
